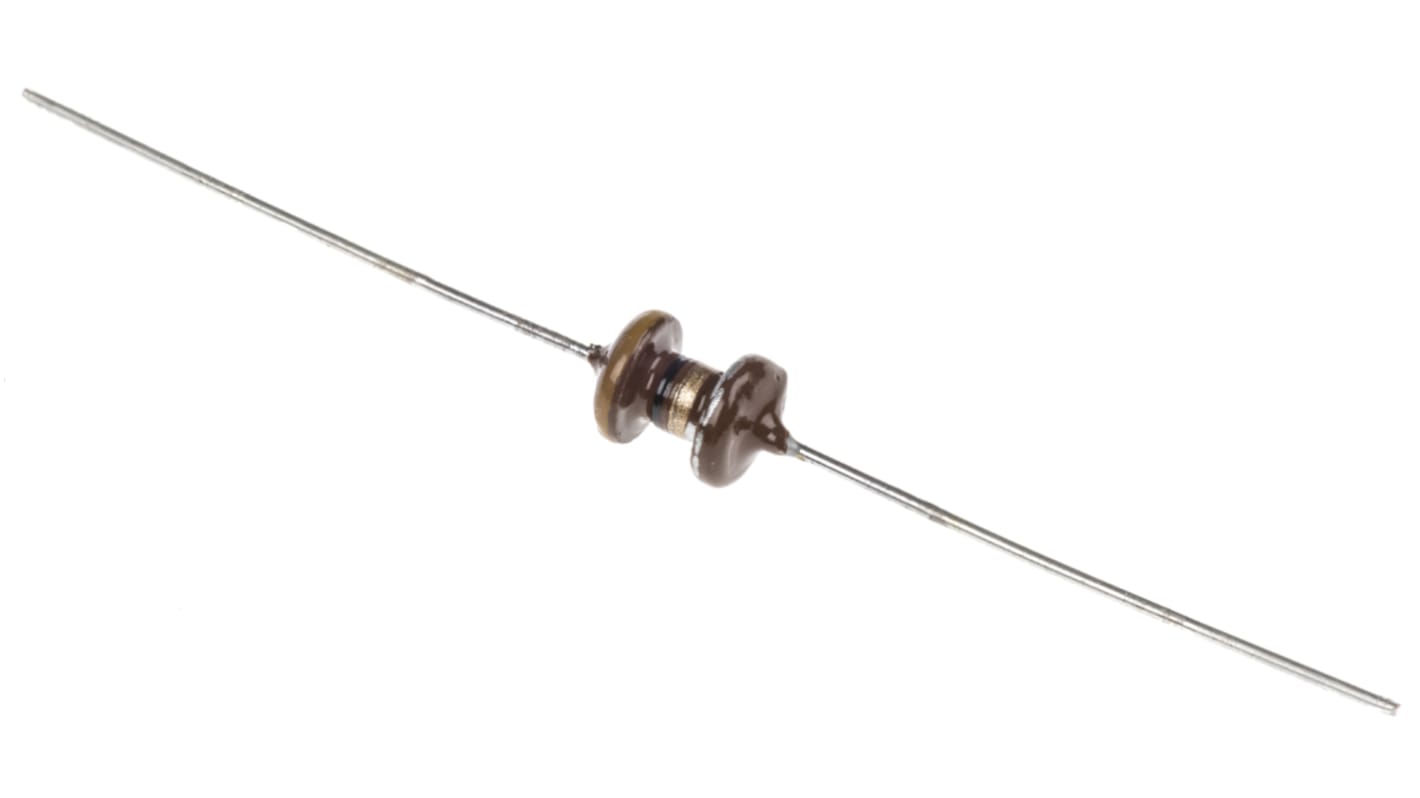

EPCOS 1 μH ±10% Ferrite Leaded Inductor, Max SRF:200MHz, Q:50, 4.45A Idc, 43mΩ Rdc, B82144F2
- RS Stock No.:
- 875-1191
- Mfr. Part No.:
- B82144F2102K000
- Brand:
- EPCOS
Subtotal (1 bag of 10 units)*
£2.22
(exc. VAT)
£2.66
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Bag* |
---|---|---|
10 + | £0.222 | £2.22 |
*price indicative
- RS Stock No.:
- 875-1191
- Mfr. Part No.:
- B82144F2102K000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPCOS | |
Inductance | 1 μH | |
Maximum DC Current | 4.45A | |
Mounting Type | Axial | |
Maximum DC Resistance | 43mΩ | |
Tolerance | ±10% | |
Diameter | 6.5mm | |
Length | 11.5mm | |
Dimensions | 6.5 (Dia.) x 11.5mm | |
Core Material | Ferrite | |
Maximum Self Resonant Frequency | 200MHz | |
Series | B82144F2 | |
Terminal Type | Axial Leaded | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +125°C | |
Minimum Quality Factor | 50 | |
Lead Diameter | 0.8mm | |
Select all | ||
---|---|---|
Brand EPCOS | ||
Inductance 1 μH | ||
Maximum DC Current 4.45A | ||
Mounting Type Axial | ||
Maximum DC Resistance 43mΩ | ||
Tolerance ±10% | ||
Diameter 6.5mm | ||
Length 11.5mm | ||
Dimensions 6.5 (Dia.) x 11.5mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 200MHz | ||
Series B82144F2 | ||
Terminal Type Axial Leaded | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Minimum Quality Factor 50 | ||
Lead Diameter 0.8mm | ||
- COO (Country of Origin):
- HU
Epcos B82144F2 LBC Series RF Chokes
Epcos B82144F2 LBC series RF chokes are suitable for use in telecommunications, energy saving lamps and entertainment electronics. They can also be used for RF blocking and filtering and decoupling and interference suppression. These inductors are constructed from a large ferrite drum core with enamel copper wire winding and a flame retardant lacquer coating.
Very high rated current
Very wide inductance range
Suitable for wave soldering
Inductance indicated b colour bands in accordance with IEC 60062
Electroplated with nickel and pure tin
Very wide inductance range
Suitable for wave soldering
Inductance indicated b colour bands in accordance with IEC 60062
Electroplated with nickel and pure tin
