EPCOS 2.2 μH ±10% Ferrite Leaded Inductor, Max SRF:140MHz, Q:60, 3.65A Idc, 55mΩ Rdc, B82144B2

View all Leaded Inductors
Bulk discount available

Subtotal (1 bag of 10 units)*

£3.13

(exc. VAT)

£3.76

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
10 - 40£0.313£3.13
50 - 90£0.294£2.94
100 - 190£0.278£2.78
200 - 490£0.253£2.53
500 +£0.232£2.32

*price indicative

Packaging Options:
RS Stock No.:
875-1181
Mfr. Part No.:
B82144B2222K000
Brand:
EPCOS
Find similar products by selecting one or more attributes.
Select all

Brand

EPCOS

Inductance

2.2 μH

Maximum DC Current

3.65A

Mounting Type

Radial

Maximum DC Resistance

55mΩ

Tolerance

±10%

Diameter

6.5mm

Length

30.5mm

Height

11.5mm

Dimensions

6.5 (Dia.) x 11.5mm

Core Material

Ferrite

Maximum Self Resonant Frequency

140MHz

Lead Pitch

4mm

Series

B82144B2

Maximum Operating Temperature

+125°C

Terminal Type

Radial Leaded

Minimum Operating Temperature

-55°C

Lead Diameter

0.8mm

Minimum Quality Factor

60

COO (Country of Origin):
HU

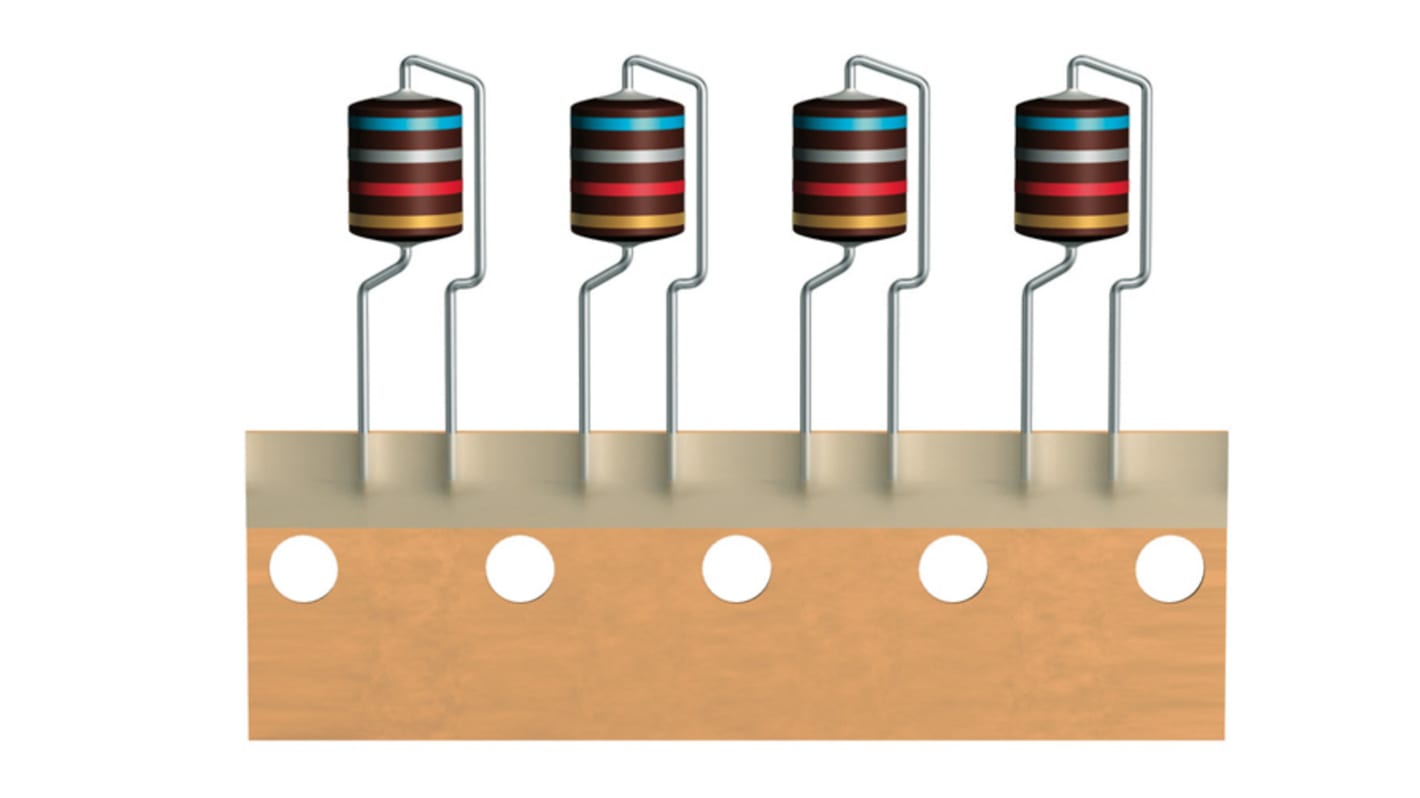

Epcos B82144B2 LBC Series RF Chokes


Epcos B82144B2 LBC series RF chokes are suitable for use in telecommunications, energy saving lamps and entertainment electronics. They can also be used for RF blocking and filtering and decoupling and interference suppression. These inductors are constructed from a large ferrite drum core with enamel copper wire winding and a flame retardant lacquer coating.

Very high rated current
High staturation behaviour
Suitable for wave soldering
Inductance indicated b colour bands in accordance with IEC 60062
Electroplated with nickel and pure tin
