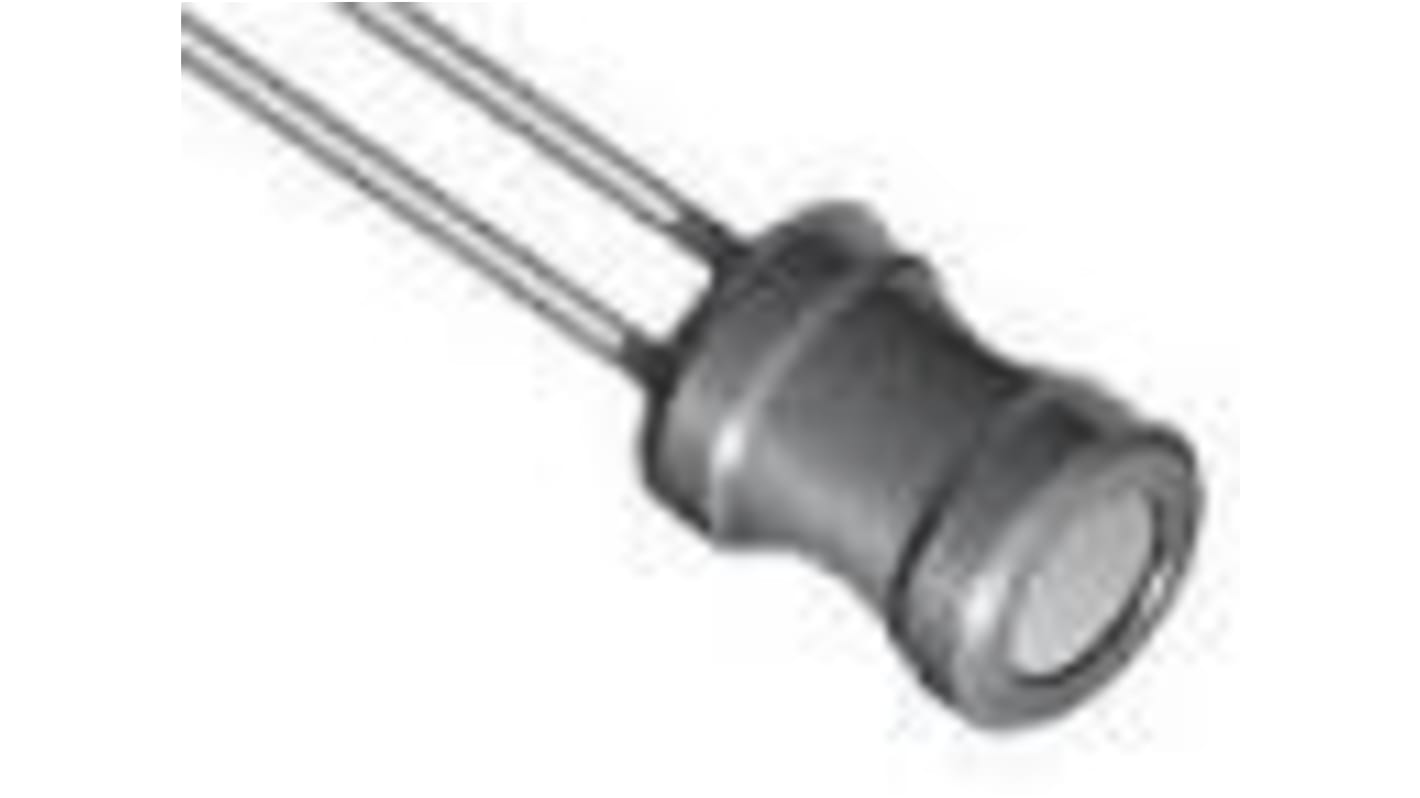

Bourns 10 μH Ferrite Leaded Inductor, Max SRF:16 MHz, Q:20, 1.1 A Idc, 70 mΩ Rdc, RLB
- RS Stock No.:
- 811-8821
- Mfr. Part No.:
- RLB0712-100KL
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 10 units)*
£1.76
(exc. VAT)
£2.11
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 60 unit(s) ready to ship from another location
- Plus 130 unit(s) shipping from 21 October 2026
- Plus 1,200 unit(s) shipping from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 490 | £0.176 | £1.76 |
| 500 - 990 | £0.123 | £1.23 |
| 1000 - 1990 | £0.112 | £1.12 |
| 2000 - 4990 | £0.104 | £1.04 |
| 5000 + | £0.094 | £0.94 |
*price indicative
- RS Stock No.:
- 811-8821
- Mfr. Part No.:
- RLB0712-100KL
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 10μH | |
| Product Type | Leaded Inductor | |
| Maximum DC Current | 1.1A | |
| Mount Type | Radial | |
| Maximum DC Resistance | 70mΩ | |
| Packaging | Box | |
| Test Frequency | 2.52MHz | |
| Lead Diameter | 650μm | |
| Diameter | 6.7mm | |
| Automotive Standard | No | |
| Height | 10mm | |
| Minimum Operating Temperature | -40°C | |
| Core Material | Ferrite | |
| Pin Count | 2 | |
| Inductance Tolerance | ±10 % | |
| Maximum Operating Temperature | 105°C | |
| Maximum Self Resonant Frequency | 16MHz | |
| Standards/Approvals | RoHS | |
| Lead Pitch | 3mm | |
| Depth | 10mm | |
| Termination Style | Axial | |
| Length | 35mm | |
| Series | RLB | |
| Minimum Quality Factor | 20 | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 10μH | ||
Product Type Leaded Inductor | ||
Maximum DC Current 1.1A | ||
Mount Type Radial | ||
Maximum DC Resistance 70mΩ | ||
Packaging Box | ||
Test Frequency 2.52MHz | ||
Lead Diameter 650μm | ||
Diameter 6.7mm | ||
Automotive Standard No | ||
Height 10mm | ||
Minimum Operating Temperature -40°C | ||
Core Material Ferrite | ||
Pin Count 2 | ||
Inductance Tolerance ±10 % | ||
Maximum Operating Temperature 105°C | ||
Maximum Self Resonant Frequency 16MHz | ||
Standards/Approvals RoHS | ||
Lead Pitch 3mm | ||
Depth 10mm | ||
Termination Style Axial | ||
Length 35mm | ||
Series RLB | ||
Minimum Quality Factor 20 | ||
Bourns RLB0712 Series Radial Inductor
The RLB0712 series from Bourns are radial inductors. These radial inductors have high rated current for high current circuits and are available in E12 series.
Product Application Information
RoHS compliant
These radial inductors are ideal for general use and are suitable for DC-DC converters and power supplies.
