Bourns 10 mH ±10% Ferrite Leaded Inductor, Max SRF:530kHz, Q:80, 100mA Idc, 12Ω Rdc, RLB
- RS Stock No.:
- 811-8819
- Mfr. Part No.:
- RLB1314-103KL
- Brand:
- Bourns
Save 32% when you buy 5000 units
Subtotal (1 bag of 10 units)*
£3.24
(exc. VAT)
£3.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 320 unit(s) ready to ship
- Plus 120 unit(s) ready to ship from another location
- Plus 530 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
10 - 490 | £0.324 | £3.24 |
500 - 990 | £0.272 | £2.72 |
1000 - 1990 | £0.241 | £2.41 |
2000 - 4990 | £0.223 | £2.23 |
5000 + | £0.218 | £2.18 |
*price indicative
- RS Stock No.:
- 811-8819
- Mfr. Part No.:
- RLB1314-103KL
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bourns | |
Inductance | 10 mH | |
Maximum DC Current | 100mA | |
Mounting Type | Radial | |
Maximum DC Resistance | 12Ω | |
Tolerance | ±10% | |
Diameter | 11.7mm | |
Height | 12mm | |
Dimensions | 11.7 (Dia.) x 12mm | |
Core Material | Ferrite | |
Maximum Self Resonant Frequency | 530kHz | |
Lead Pitch | 7mm | |
Series | RLB | |
Minimum Quality Factor | 80 | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +105°C | |
Lead Diameter | 0.8mm | |
Select all | ||
---|---|---|
Brand Bourns | ||
Inductance 10 mH | ||
Maximum DC Current 100mA | ||
Mounting Type Radial | ||
Maximum DC Resistance 12Ω | ||
Tolerance ±10% | ||
Diameter 11.7mm | ||
Height 12mm | ||
Dimensions 11.7 (Dia.) x 12mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 530kHz | ||
Lead Pitch 7mm | ||
Series RLB | ||
Minimum Quality Factor 80 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Lead Diameter 0.8mm | ||

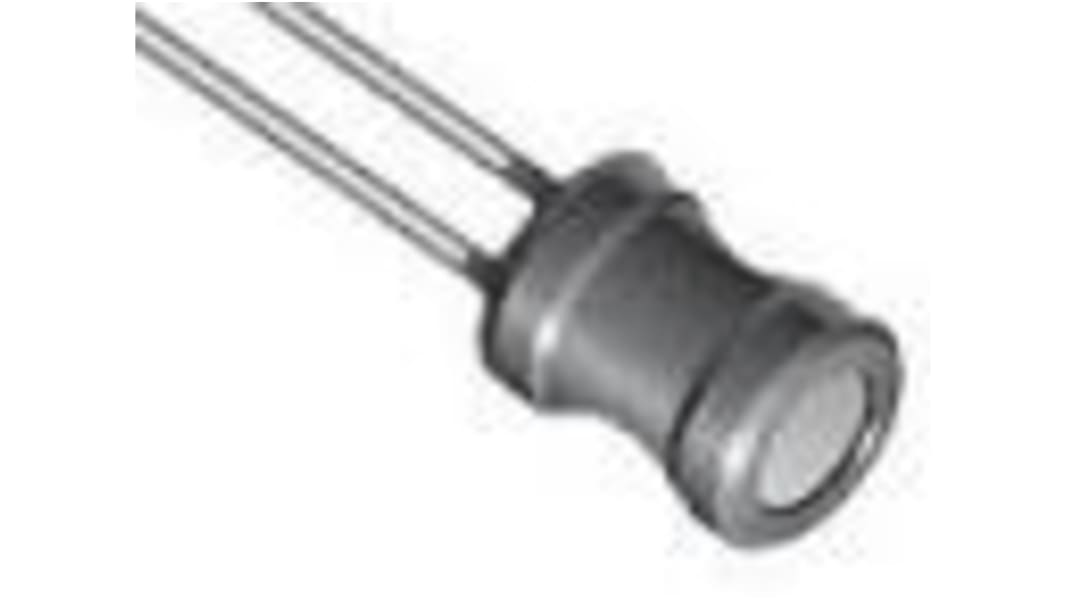

Bourns RLB1314 Series Radial Inductor
RLB1314 Series Radial Inductors with a high rated current for high current circuits. The RLB1314 Series are suitable for use in power supplies, DC/DC converters and general use applications.
RoHS Compliant
Bourns Leaded Inductors (Chokes)
