EPCOS 7 μH ±20% Ferrite VHF Inductor, Max SRF:180MHz, 6A Idc, 20mΩ Rdc, B82111E
- RS Stock No.:
- 213-1869
- Mfr. Part No.:
- B82111E0000C020
- Brand:
- EPCOS
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 213-1869
- Mfr. Part No.:
- B82111E0000C020
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 7 μH | |
| Maximum DC Current | 6A | |
| Mounting Type | Axial | |
| Maximum DC Resistance | 20mΩ | |
| Tolerance | ±20% | |
| Diameter | 7.5mm | |
| Length | 27.4mm | |
| Dimensions | 7.5 (Dia.) x 27.4mm | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 180MHz | |
| Series | B82111E | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 7 μH | ||
Maximum DC Current 6A | ||
Mounting Type Axial | ||
Maximum DC Resistance 20mΩ | ||
Tolerance ±20% | ||
Diameter 7.5mm | ||
Length 27.4mm | ||
Dimensions 7.5 (Dia.) x 27.4mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 180MHz | ||
Series B82111E | ||

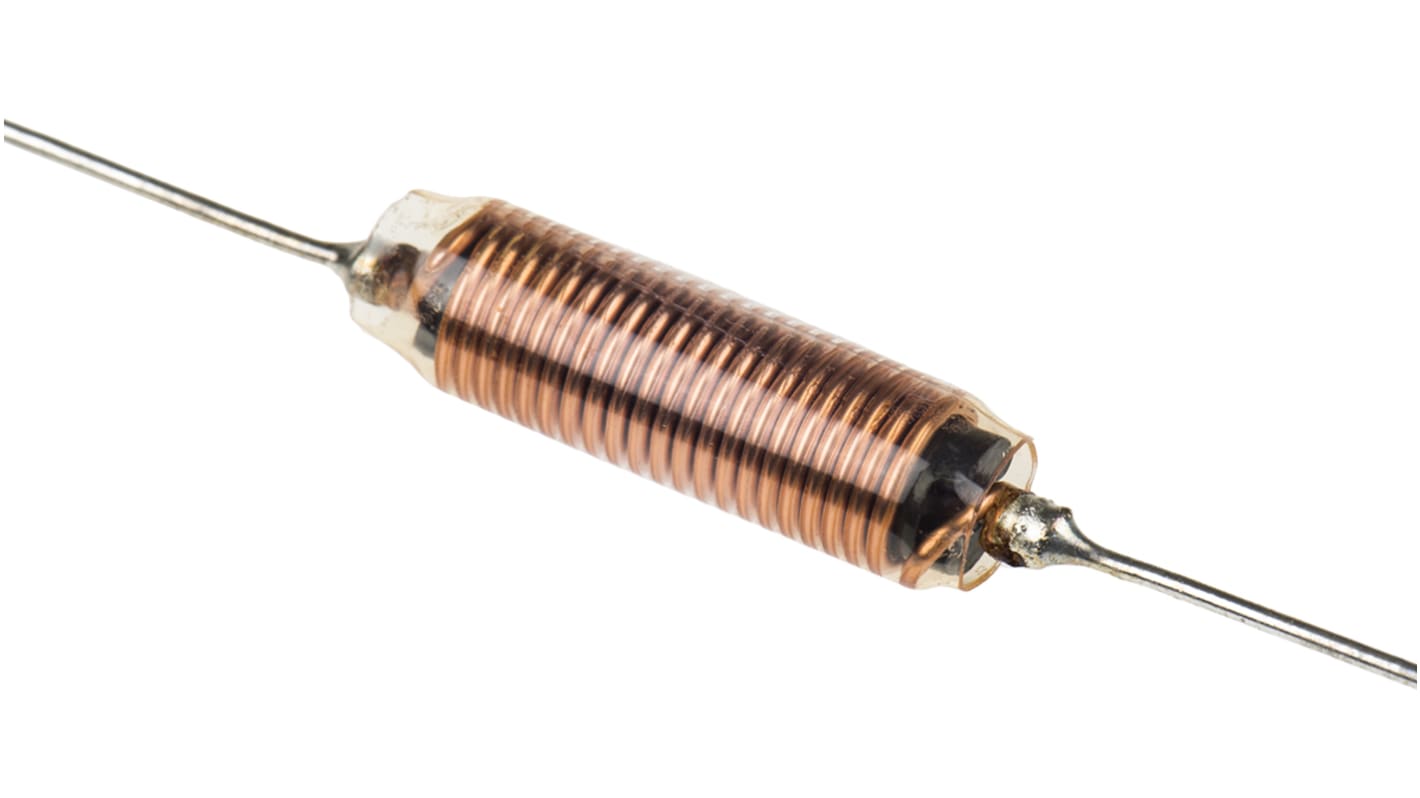

Epcos B82111E VHF Axial Choke
Ferrite cylinder core with single layer, enamel copper wire, winding in polyester insulating sleeve
Offers high resonance frequency
Suitable for RF blocking and filtering, interference suppression in small size equipment, decoupling and telecoms and entertainment electronics
VDE 0565-2 (not B82500)
Offers high resonance frequency
Suitable for RF blocking and filtering, interference suppression in small size equipment, decoupling and telecoms and entertainment electronics
VDE 0565-2 (not B82500)
