EPCOS 220 μH ±5% Ferrite Leaded Inductor, Max SRF:3.7MHz, Q:70, 250mA Idc, 3.3Ω Rdc, BC
- RS Stock No.:
- 191-0649
- Mfr. Part No.:
- B78108S1224J000
- Brand:
- EPCOS
Save 29% when you buy 5000 units
Subtotal (1 pack of 10 units)*
£1.26
(exc. VAT)
£1.51
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 310 unit(s) ready to ship from another location
- Plus 5,040 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 490 | £0.126 | £1.26 |
500 - 990 | £0.096 | £0.96 |
1000 - 1990 | £0.093 | £0.93 |
2000 - 4990 | £0.091 | £0.91 |
5000 + | £0.089 | £0.89 |
*price indicative
- RS Stock No.:
- 191-0649
- Mfr. Part No.:
- B78108S1224J000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPCOS | |
Inductance | 220 μH | |
Maximum DC Current | 250mA | |
Mounting Type | Axial | |
Maximum DC Resistance | 3.3Ω | |
Tolerance | ±5% | |
Diameter | 4mm | |
Length | 11.5mm | |
Dimensions | 4 (Dia.) x 11.5mm | |
Core Material | Ferrite | |
Maximum Self Resonant Frequency | 3.7MHz | |
Series | BC | |
Minimum Quality Factor | 70 | |
Select all | ||
---|---|---|
Brand EPCOS | ||
Inductance 220 μH | ||
Maximum DC Current 250mA | ||
Mounting Type Axial | ||
Maximum DC Resistance 3.3Ω | ||
Tolerance ±5% | ||
Diameter 4mm | ||
Length 11.5mm | ||
Dimensions 4 (Dia.) x 11.5mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 3.7MHz | ||
Series BC | ||
Minimum Quality Factor 70 | ||

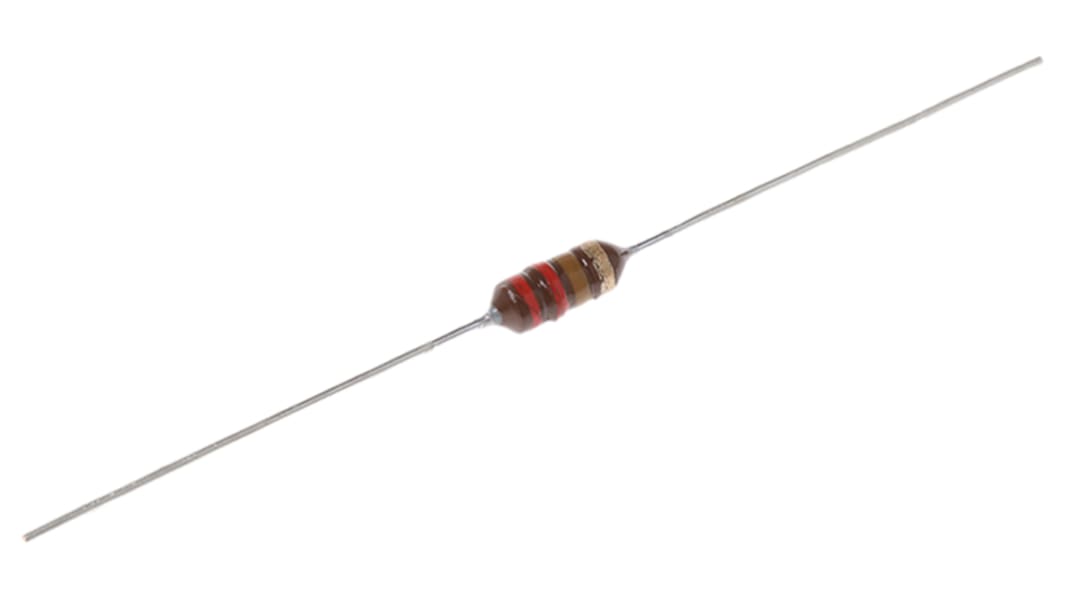

Epcos B78108S BC Series Axial Inductors
Consists of a large ferrite drum core with enamel copper wire winding with a flame-retardant lacquer coating
Suitable for RF blocking and filtering, decoupling and interference suppression, antenna systems, energy saving lamps and automotive electronics
LBC type also suitable for telecommunications (16 kHz blocking filter)
Inductance indicated by colour bands in accordance with IEC 62 (μH)
Suitable for RF blocking and filtering, decoupling and interference suppression, antenna systems, energy saving lamps and automotive electronics
LBC type also suitable for telecommunications (16 kHz blocking filter)
Inductance indicated by colour bands in accordance with IEC 62 (μH)
