Bourns 4.7 μH ±10% Ferrite Leaded Inductor, Max SRF:51MHz, Q:20, 4.3A Idc, 30mΩ Rdc, RL622
- RS Stock No.:
- 172-9733
- Mfr. Part No.:
- RL622-4R7K-RC
- Brand:
- Bourns
Subtotal (1 bag of 100 units)*
£45.10
(exc. VAT)
£54.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 200 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 + | £0.451 | £45.10 |
*price indicative
- RS Stock No.:
- 172-9733
- Mfr. Part No.:
- RL622-4R7K-RC
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bourns | |
Inductance | 4.7 μH | |
Maximum DC Current | 4.3A | |
Mounting Type | Radial | |
Maximum DC Resistance | 30mΩ | |
Tolerance | ±10% | |
Diameter | 8.5mm | |
Height | 11mm | |
Dimensions | 8.5 (Dia.) x 11mm | |
Core Material | Ferrite | |
Maximum Self Resonant Frequency | 51MHz | |
Lead Pitch | 5mm | |
Series | RL622 | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -55°C | |
Minimum Quality Factor | 20 | |
Terminal Type | Radial Leaded | |
Lead Diameter | 0.62mm | |
Select all | ||
---|---|---|
Brand Bourns | ||
Inductance 4.7 μH | ||
Maximum DC Current 4.3A | ||
Mounting Type Radial | ||
Maximum DC Resistance 30mΩ | ||
Tolerance ±10% | ||
Diameter 8.5mm | ||
Height 11mm | ||
Dimensions 8.5 (Dia.) x 11mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 51MHz | ||
Lead Pitch 5mm | ||
Series RL622 | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55°C | ||
Minimum Quality Factor 20 | ||
Terminal Type Radial Leaded | ||
Lead Diameter 0.62mm | ||
- COO (Country of Origin):
- VN

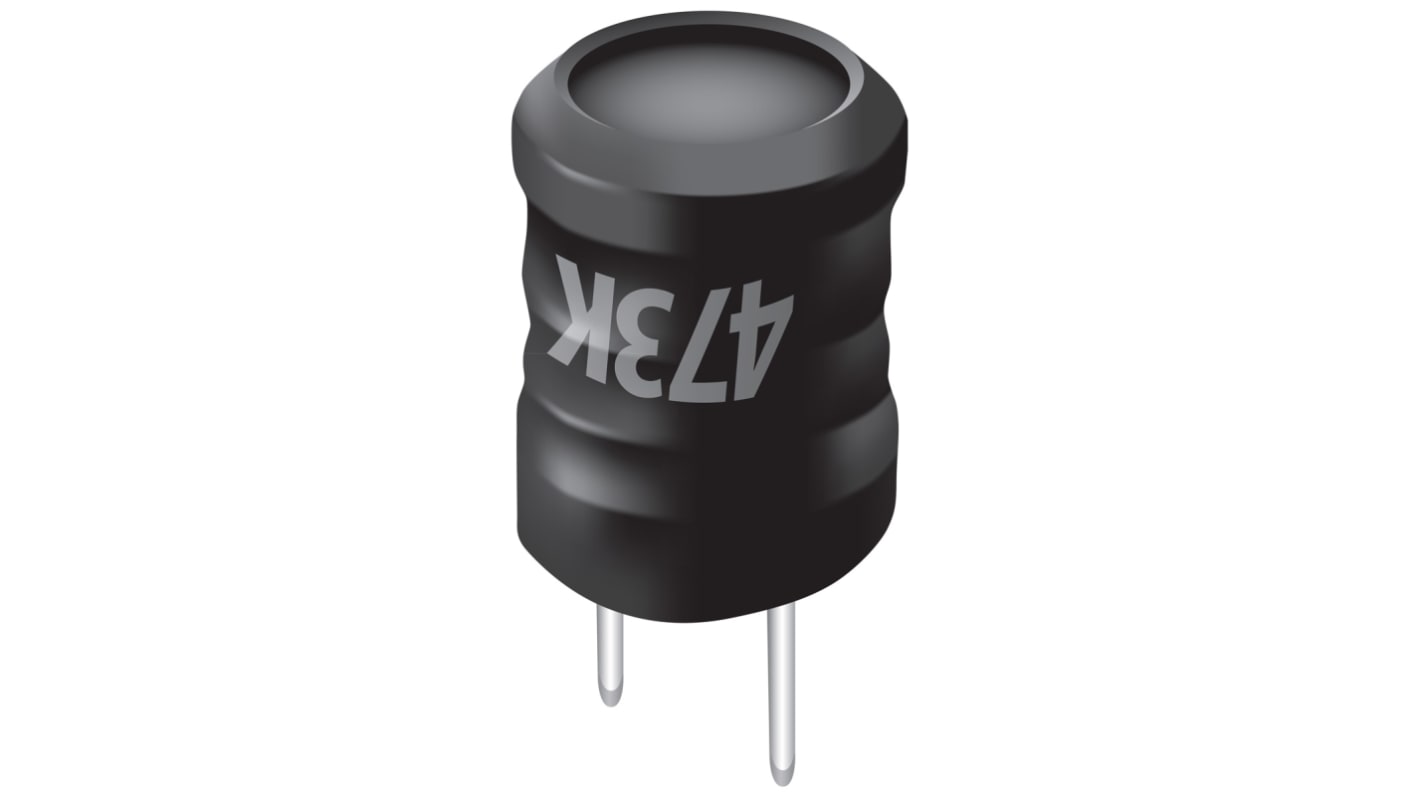

Bourns RL622 Series Radio Frequency Radial Inductors
RL622 radial RF chokes from Bourns, previously referred to as the J. W. Miller model, offer current ratings up to 10 A. RL622 radial RF cokes are constructed from a ferrite core with enamelled copper wire and the terminals have a tin coating. These RF chokes are available with inductance values between 1 μH and 100000 μH.
Product Application Information
Suitable applications for these radial RF chokes include power supplies, DC-DC convertors, output chokes and desktop notebooks.
