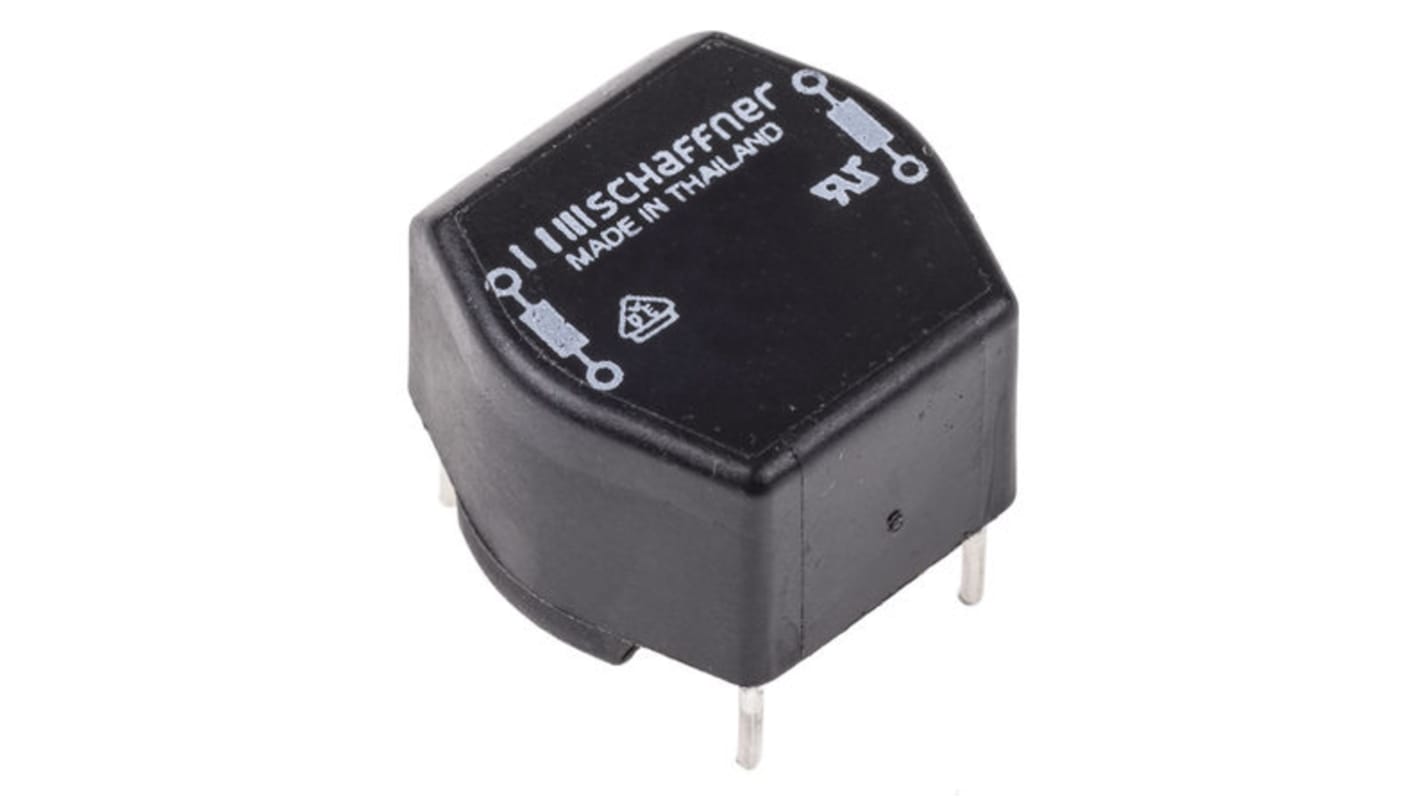

Schaffner 47 mH -30 → +50% Current Compensated Choke, 300mA Idc, 1.75Ω Rdc, RN
- RS Stock No.:
- 170-4963
- Mfr. Part No.:
- RN 114-0.3/02
- Brand:
- Schaffner
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 170-4963
- Mfr. Part No.:
- RN 114-0.3/02
- Brand:
- Schaffner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schaffner | |
Inductance | 47 mH | |
Maximum DC Current | 300mA | |
Mounting Type | Radial | |
Maximum DC Resistance | 1.75Ω | |
Tolerance | -30 → +50% | |
Length | 22.8mm | |
Depth | 21.8mm | |
Height | 13.5mm | |
Dimensions | 22.8 x 21.8 x 13.5mm | |
Lead Pitch | 20.1mm | |
Series | RN | |
Terminal Type | PC Pin | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Schaffner | ||
Inductance 47 mH | ||
Maximum DC Current 300mA | ||
Mounting Type Radial | ||
Maximum DC Resistance 1.75Ω | ||
Tolerance -30 → +50% | ||
Length 22.8mm | ||
Depth 21.8mm | ||
Height 13.5mm | ||
Dimensions 22.8 x 21.8 x 13.5mm | ||
Lead Pitch 20.1mm | ||
Series RN | ||
Terminal Type PC Pin | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Schaffner RN Series Common Mode Chokes
Premium range of common mode chokes from Schaffner provide the user with reliable AC power line noise filtration. Can be used in a wide range of applications such as phase-angle control circuits in combination with saturating chokes and EMI input filters.
Rated currents from 0.3 →10 A
DC → 1kHz frequency
100kHz → 3MHz common-mode resonance frequency
Dual-choke configurations
Multiple PCB-mounting options
Small compact design
High saturation resistance and excellent thermal behaviour
DC → 1kHz frequency
100kHz → 3MHz common-mode resonance frequency
Dual-choke configurations
Multiple PCB-mounting options
Small compact design
High saturation resistance and excellent thermal behaviour
Approvals
UL recognised
