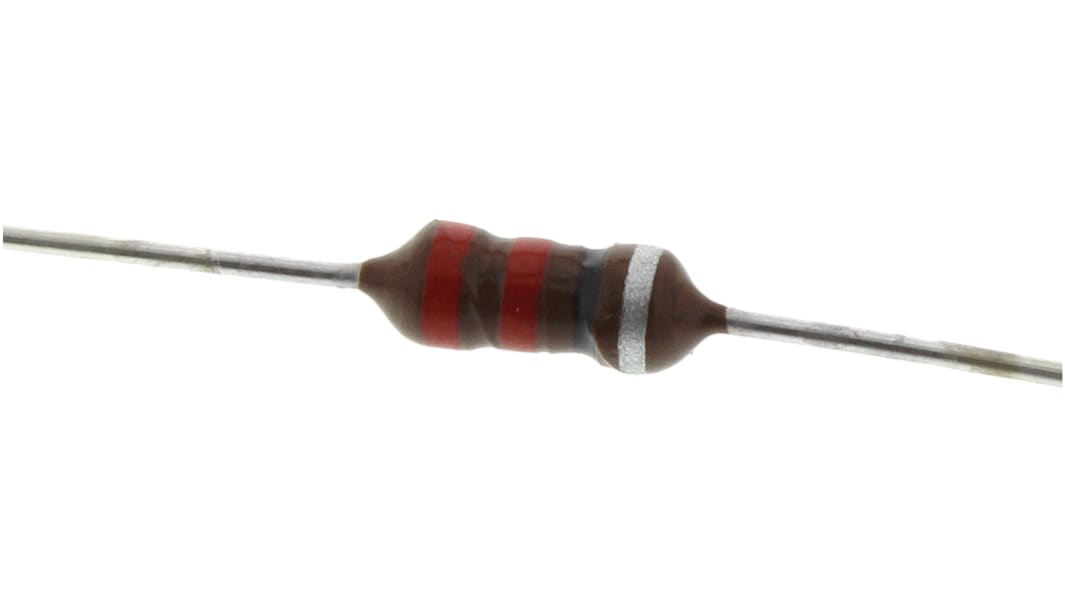

EPCOS 15 μH Ferrite Leaded Inductor, Max SRF:20 MHz, Q:60, 610 mA Idc, 600 mΩ Rdc, BC
- RS Stock No.:
- 167-8352
- Mfr. Part No.:
- B78108S1153K000
- Brand:
- EPCOS
Subtotal (1 reel of 5000 units)*
£475.00
(exc. VAT)
£570.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £0.095 | £475.00 |
*price indicative
- RS Stock No.:
- 167-8352
- Mfr. Part No.:
- B78108S1153K000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Product Type | Leaded Inductor | |
| Inductance | 15μH | |
| Maximum DC Current | 610mA | |
| Mount Type | Axial | |
| Maximum DC Resistance | 600mΩ | |
| Test Frequency | 2.52MHz | |
| Packaging | Ammo Pack | |
| Automotive Standard | No | |
| Diameter | 4mm | |
| Lead Diameter | 0.8mm | |
| Height | 4mm | |
| Pin Count | 2 | |
| Core Material | Ferrite | |
| Maximum Operating Temperature | 40°C | |
| Maximum Self Resonant Frequency | 20MHz | |
| Inductance Tolerance | ±10 % | |
| Standards/Approvals | IEC, RoHS | |
| Length | 11.5mm | |
| Termination Style | Axial | |
| Depth | 4mm | |
| Lead Pitch | 11.5mm | |
| Series | BC | |
| Minimum Quality Factor | 60 | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Product Type Leaded Inductor | ||
Inductance 15μH | ||
Maximum DC Current 610mA | ||
Mount Type Axial | ||
Maximum DC Resistance 600mΩ | ||
Test Frequency 2.52MHz | ||
Packaging Ammo Pack | ||
Automotive Standard No | ||
Diameter 4mm | ||
Lead Diameter 0.8mm | ||
Height 4mm | ||
Pin Count 2 | ||
Core Material Ferrite | ||
Maximum Operating Temperature 40°C | ||
Maximum Self Resonant Frequency 20MHz | ||
Inductance Tolerance ±10 % | ||
Standards/Approvals IEC, RoHS | ||
Length 11.5mm | ||
Termination Style Axial | ||
Depth 4mm | ||
Lead Pitch 11.5mm | ||
Series BC | ||
Minimum Quality Factor 60 | ||
Epcos B78108S BC Series Axial Inductors
Consists of a large ferrite drum core with enamel copper wire winding with a flame-retardant lacquer coating
Suitable for RF blocking and filtering, decoupling and interference suppression, antenna systems, energy saving lamps and automotive electronics
LBC type also suitable for telecommunications (16 kHz blocking filter)
Inductance indicated by colour bands in accordance with IEC 62 (μH)
