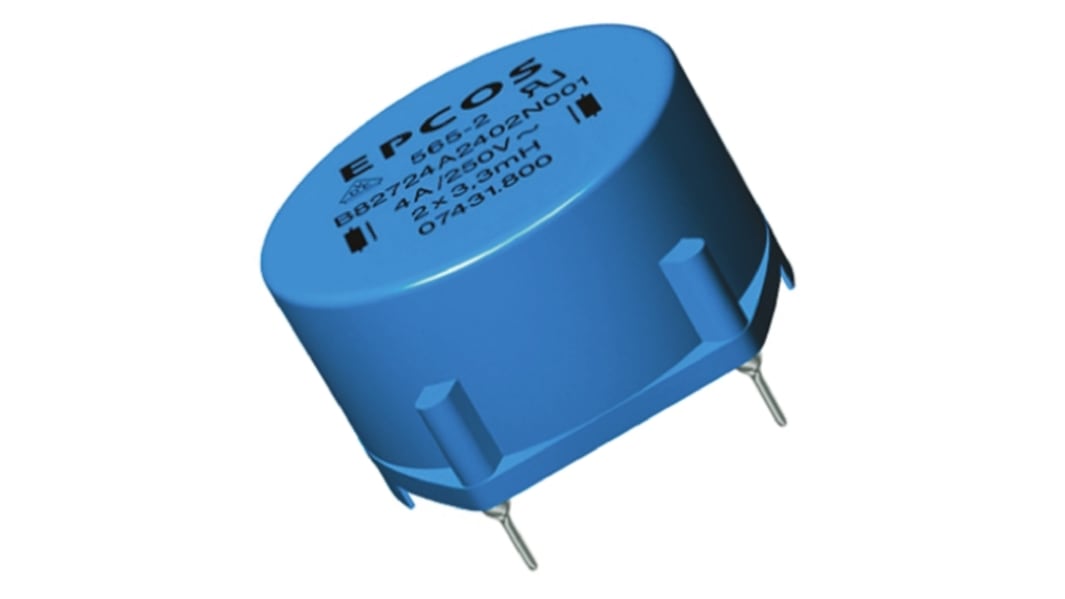

EPCOS 27 mH Ferrite Power Line Choke, 1.4 A Idc, 460 mΩ Rdc 250V ac, B82721A

RS Stock No.:: 167-0169
Mfr. Part No.:: B82724A2142N001
Brand:: EPCOS

EPCOS 27 mH Ferrite Power Line Choke, 1.4 A Idc, 460 mΩ Rdc 250V ac, B82721A

Subtotal (1 box of 300 units)*

£500.40

(exc. VAT)

£600.60

(inc. VAT)

FREE delivery for orders over £60.00

Last RS stock

Final 300 unit(s), ready to ship

Units	Per unit	Per Box*
300 +	£1.668	£500.40

*price indicative

RS Stock No.:: 167-0169
Mfr. Part No.:: B82724A2142N001
Brand:: EPCOS

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EPCOS
	Product Type	Power Line Choke
	Maximum DC Current	1.4A
	Mount Type	Radial
	Packaging	Blister Tray in Cardboard Box
	Maximum DC Resistance	460mΩ
	Automotive Standard	No
	Lead Diameter	0.7mm
	Height	19.7mm
	Core Material	Ferrite
	Pin Count	4
	Minimum Operating Temperature	-40°C
	Maximum Voltage	250V ac
	Inductance Tolerance	30 %
	Maximum Operating Temperature	125°C
	Standards/Approvals	UL 94 V-0, UL 1283, RoHS, EN 60938-2
	Length	32.6mm
	Termination Style	Pin
	Depth	33.1mm
	Lead Pitch	30mm
	Series	B82721A

	Select all
	Brand EPCOS
	Product Type Power Line Choke
	Maximum DC Current 1.4A
	Mount Type Radial
	Packaging Blister Tray in Cardboard Box
	Maximum DC Resistance 460mΩ
	Automotive Standard No
	Lead Diameter 0.7mm
	Height 19.7mm
	Core Material Ferrite
	Pin Count 4
	Minimum Operating Temperature -40°C
	Maximum Voltage 250V ac
	Inductance Tolerance 30 %
	Maximum Operating Temperature 125°C
	Standards/Approvals UL 94 V-0, UL 1283, RoHS, EN 60938-2
	Length 32.6mm
	Termination Style Pin
	Depth 33.1mm
	Lead Pitch 30mm
	Series B82721A

Datasheet

COO (Country of Origin):: HU

Epcos B82721A Series Common Mode Choke

Current-compensated ring core double chokes with a ferrite core in flame retardant potting and case to (UL94V-0)

High resonance frequency by virtue of the unique winding technique used

Applications include switch-mode power supplies for computers, televisions and other sensitive electronic equipment. Additionally the B82721/2/3/4/5A ranges of chokes are suitable for electronic ballasts in lamps, and the B82725J range of chokes is ideally suited for washing machines and chargers.

Low profile horizontal (-A/-B) versions

Vertical (-J/-K) versions save PCB space

Note

The stated Rated Current I_R is referenced to 50Hz @ T_A 40°C
The stated Rated Inductance L_R is per Coil @ 20°C

Approvals

VDE; UL Recognised Component

Standards

VDE 0565-2 UL 1283
