TDK 3.3 mH Ferrite Power Line Choke, Max SRF:10 kHz, 1.8 A Idc, 140 mΩ Rdc 250V ac, B82731M
- RS Stock No.:
- 162-0163
- Mfr. Part No.:
- B82731M2182A030
- Brand:
- TDK
Subtotal (1 box of 800 units)*
£912.00
(exc. VAT)
£1,096.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 800 + | £1.14 | £912.00 |
*price indicative
- RS Stock No.:
- 162-0163
- Mfr. Part No.:
- B82731M2182A030
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | Power Line Choke | |
| Inductance | 3.3mH | |
| Maximum DC Current | 1.8A | |
| Mount Type | Radial | |
| Maximum DC Resistance | 140mΩ | |
| Test Frequency | 10kHz | |
| Packaging | Box | |
| Lead Diameter | 0.6mm | |
| Automotive Standard | No | |
| Height | 20mm | |
| Minimum Operating Temperature | -40°C | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 10kHz | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | -30 to 50 % | |
| Maximum Voltage | 250V ac | |
| Length | 21mm | |
| Depth | 15mm | |
| Termination Style | PC Pin | |
| Standards/Approvals | EN, RoHS, ENEC, IEC, UL, VDE | |
| Lead Pitch | 12.5mm | |
| Series | B82731M | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type Power Line Choke | ||
Inductance 3.3mH | ||
Maximum DC Current 1.8A | ||
Mount Type Radial | ||
Maximum DC Resistance 140mΩ | ||
Test Frequency 10kHz | ||
Packaging Box | ||
Lead Diameter 0.6mm | ||
Automotive Standard No | ||
Height 20mm | ||
Minimum Operating Temperature -40°C | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 10kHz | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance -30 to 50 % | ||
Maximum Voltage 250V ac | ||
Length 21mm | ||
Depth 15mm | ||
Termination Style PC Pin | ||
Standards/Approvals EN, RoHS, ENEC, IEC, UL, VDE | ||
Lead Pitch 12.5mm | ||
Series B82731M | ||
- COO (Country of Origin):
- HU

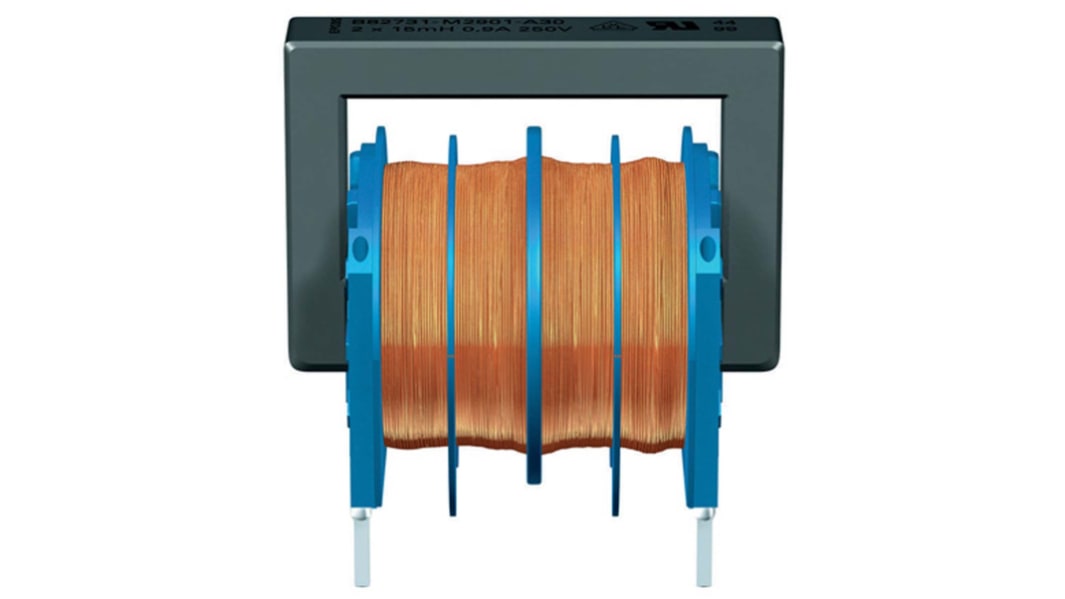

Epcos B82731M Series Common Mode Chokes
B82731M Series Current-compensated D core double chokes, the Vertical version
Closed rectangular ferrite core with 2-section winding
Closed polycarbonate Coil former (UL 94 V-0) without encapsulation with clearance and creepage distances ≥3 mm
High resonance frequency due to 2-section winding
Approx. 1% stray inductance for symmetrical interference suppression
Low leakage due to closed core shape
High Pulse strength
Low whirring noise
Suitable for wave soldering
Applications include, Suppression of common-mode interferences; Compact switch-mode power applications and Electronic ballasts in lamps
