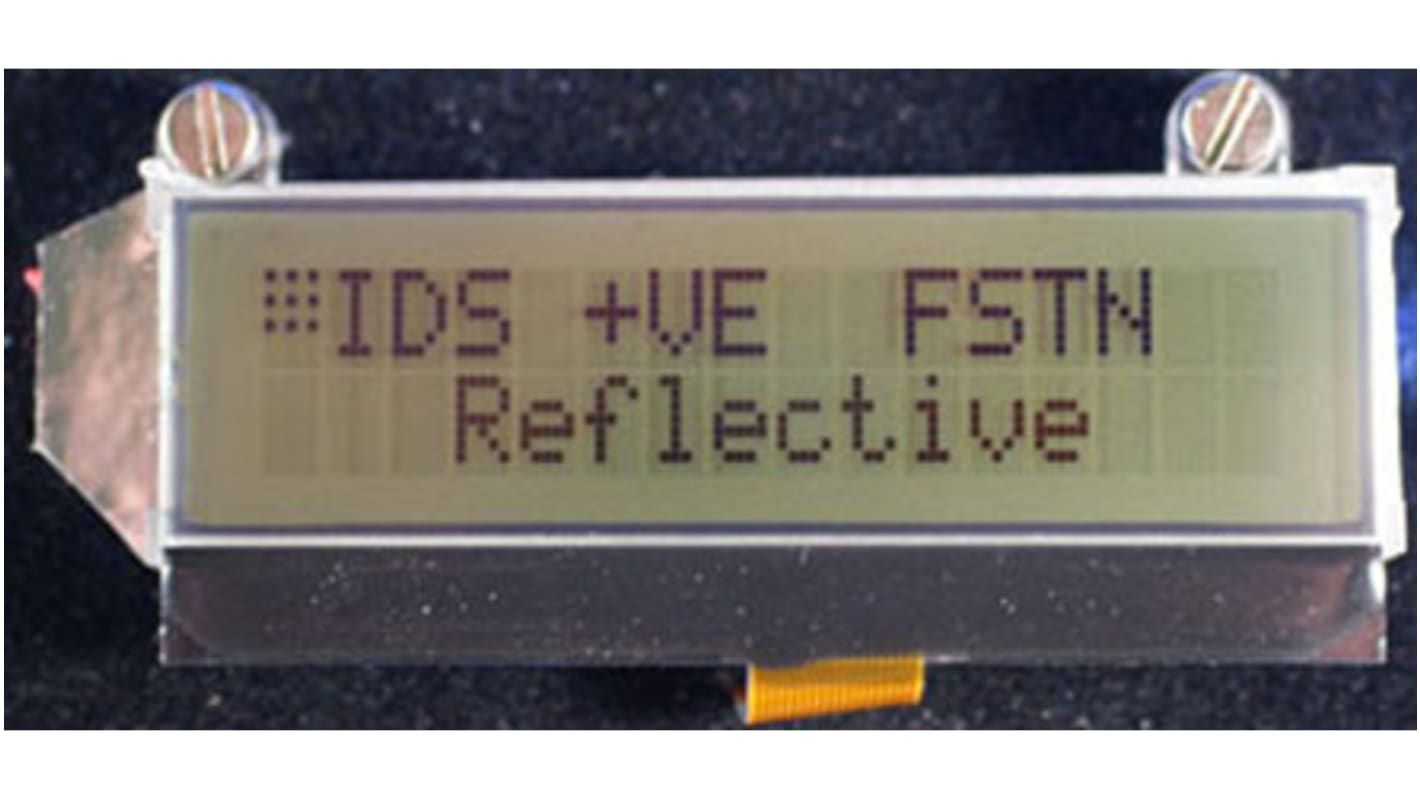

Intelligent Display Solutions CI064-4001-47 CI064-4001-xx Alphanumeric LCD Display, Grey on, 2 Rows by 16 Characters,
- RS Stock No.:
- 903-1268
- Mfr. Part No.:
- CI064-4001-47
- Brand:
- Intelligent Display Solutions
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 903-1268
- Mfr. Part No.:
- CI064-4001-47
- Brand:
- Intelligent Display Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Intelligent Display Solutions | |
| Display Type | Alphanumeric | |
| Character Matrix | 2 Rows by 16 Characters | |
| Character Rows | 2 | |
| Characters per Row | 16 | |
| Character Width | 3mm | |
| Character Height | 5.6mm | |
| Viewing Area Dimensions | 64 x 17mm | |
| Viewing Area Width | 63.5mm | |
| Viewing Area Height | 16.5mm | |
| Interface Type | 4-Bit MPU, 8-Bit MPU | |
| External Depth | 26.5mm | |
| Backlight Type | LED | |
| Illumination Colour | Grey | |
| External Dimensions | 2.8 x 68.5 x 26.5mm | |
| External Height | 2.8mm | |
| External Width | 68.5mm | |
| Display Mode | Reflective | |
| Voltage Rating | 2.7 → 5.5V | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -20°C | |
| Current Rating | 2mA | |
| Series | CI064-4001-xx | |
| Driver Mounting | COG | |
| Operating Temperature Range | -20 → +70°C | |
Select all | ||
|---|---|---|
Brand Intelligent Display Solutions | ||
Display Type Alphanumeric | ||
Character Matrix 2 Rows by 16 Characters | ||
Character Rows 2 | ||
Characters per Row 16 | ||
Character Width 3mm | ||
Character Height 5.6mm | ||
Viewing Area Dimensions 64 x 17mm | ||
Viewing Area Width 63.5mm | ||
Viewing Area Height 16.5mm | ||
Interface Type 4-Bit MPU, 8-Bit MPU | ||
External Depth 26.5mm | ||
Backlight Type LED | ||
Illumination Colour Grey | ||
External Dimensions 2.8 x 68.5 x 26.5mm | ||
External Height 2.8mm | ||
External Width 68.5mm | ||
Display Mode Reflective | ||
Voltage Rating 2.7 → 5.5V | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -20°C | ||
Current Rating 2mA | ||
Series CI064-4001-xx | ||
Driver Mounting COG | ||
Operating Temperature Range -20 → +70°C | ||
- COO (Country of Origin):
- CN
IDS 2x16 COG Alphanumeric LCD Display Modules
This range of LCD displays from IDS have 2 rows of 16 characters. They offer a low cost, low energy and simple method to add a display to your design. Available in a wide choice of backlight colours, both in positive and negative modes and using either STN, FSTN or FFSTN.
Programming code and application notes are available to help speed up connection and integration into a Raspberry Pi or Arduino project.
The IDS IDB-CI064-4001-XX-01 breakout board enables the displays to be used with the industry standard 16-pin interface.
Programming code and application notes are available to help speed up connection and integration into a Raspberry Pi or Arduino project.
The IDS IDB-CI064-4001-XX-01 breakout board enables the displays to be used with the industry standard 16-pin interface.
CI064-4001-31 – Blue Background with White Backlight - RS 9031277
FSTN Positive
CI064-4001-25 - Green Backlight – RS 9031246
FSTN Negative
CI064-4001-34 – Blue Backlight – RS 9031283
FFSTN Negative
IDS Alphanumeric LCD Displays
