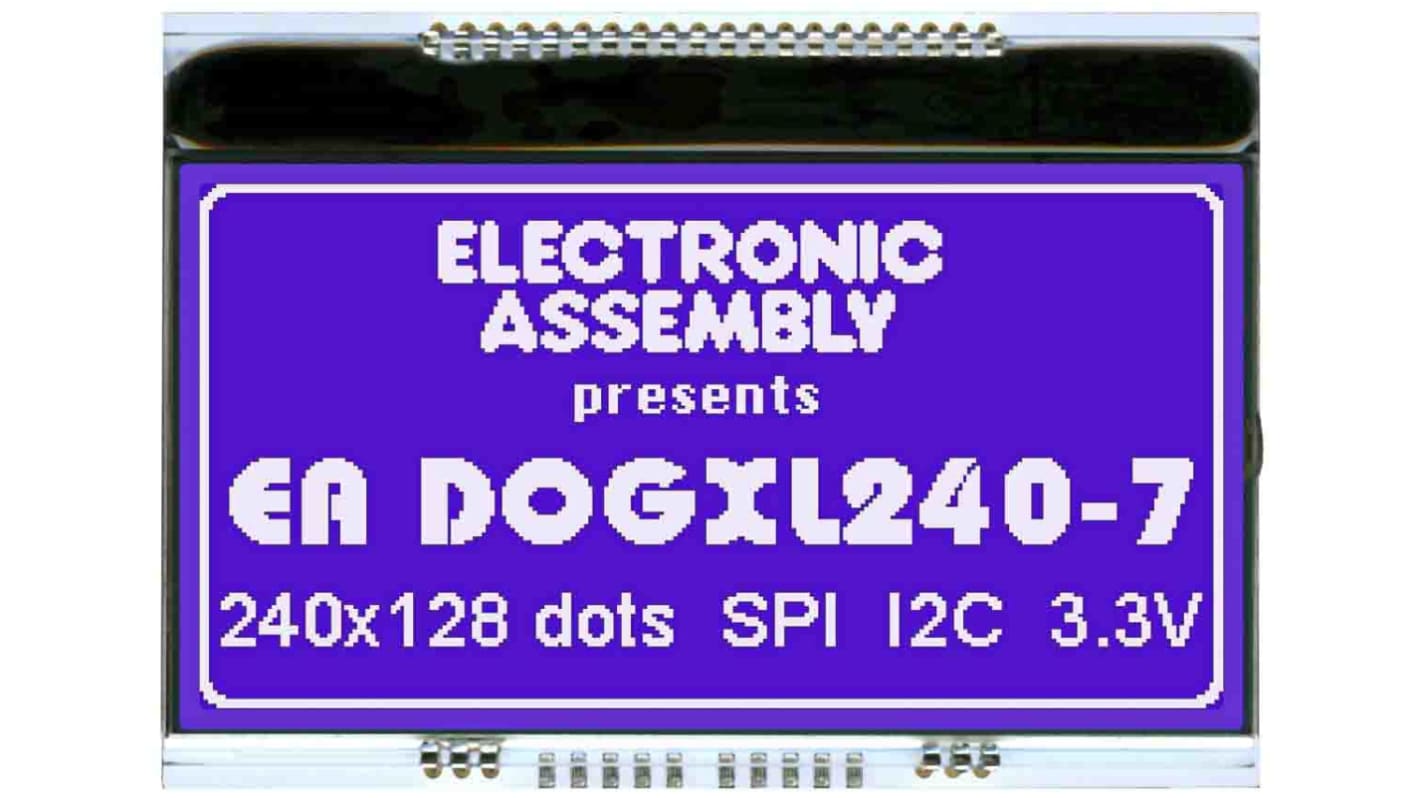

Display Visions EA DOGXL240B-7 EA DOG LCD Display, Blue on

View all LCD Monochrome Displays

Subtotal (1 tray of 16 units)*

£673.04

(exc. VAT)

£807.648

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 26 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
16 +£42.065£673.04

*price indicative

RS Stock No.:
197-1294
Mfr. Part No.:
EA DOGXL240B-7
Brand:
Display Visions
Find similar products by selecting one or more attributes.
Select all

Brand

Display Visions

Character Rows

240

Characters per Row

64

Interface Type

I2C, SPI

Illumination Colour

Blue

Backlight Type

LED

Controller Type

UC1611S

Display Matrix Technology

STN

Voltage Rating

3.3V

Series

EA DOG

Bezel Included

No

Current Rating

900µA

COO (Country of Origin):
CN
The Electronic Assembly EA DOG series presents the world’s first display series which will run on 3.3 V systems without auxiliary power. It is extremely compact at 66 x 40 mm at the standard font size of 4.8 mm (4 x 10). It is ultra-flat at 2.0 mm without backlight or 5.8 mm including LED backlight and it has 4-bit, 8-bit SPI and I²C interface. It can be easily installed by simply soldering into the board.

Controller UC1611 with integrated graphic RAM.
High contrast LCD supertwist display (STN AND FSTN) with 15μm dot gap
LED backlighting 10 to 150mA
No mounting required because it can be soldered directly onto PCB.
