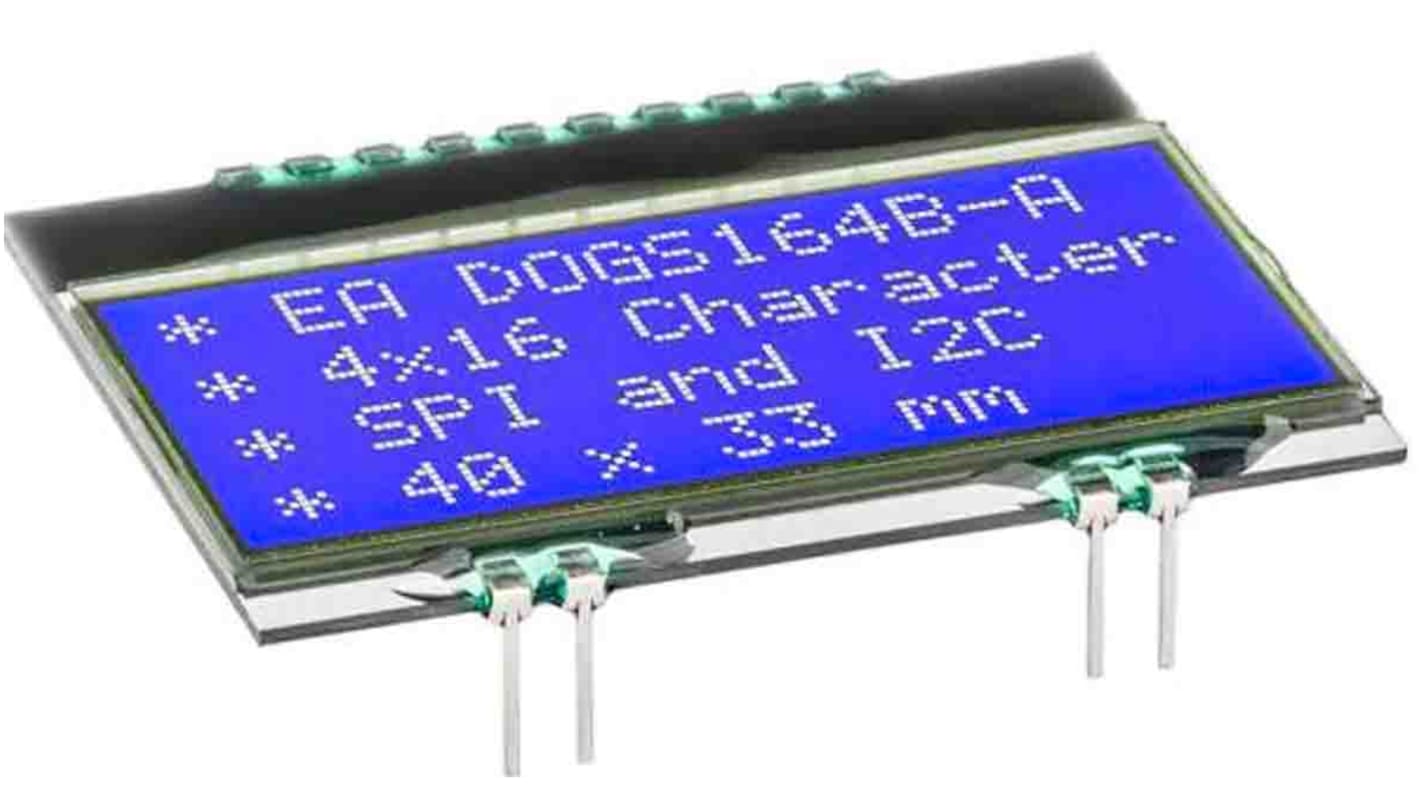

Display Visions EA DOGS164B-A EA DOG LCD Display, Blue on

View all LCD Monochrome Displays
Unavailable
RS will no longer stock this product.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Midas MC42005A6W-BNMLW-V2 A Alphanumeric LCD Display, Blue on White, 4 Rows by 20 Characters, Transmissive
RS Stock No.
135-9751

Each

£15.78

(exc. VAT)

£18.94

(inc. VAT)

RS Stock No.:
197-1248
Mfr. Part No.:
EA DOGS164B-A
Brand:
Display Visions
Find similar products by selecting one or more attributes.
Select all

Brand

Display Visions

Characters per Row

16

Character Rows

4

Interface Type

I2C, SPI

Backlight Type

LED

Illumination Colour

Blue

Controller Type

SSD1803A

Display Matrix Technology

STN

Voltage Rating

3.3V

Series

EA DOG

Bezel Included

No

Current Rating

440µA

COO (Country of Origin):
CN
The Electronic Assembly EA DOG series presents the world’s first display series which will run on 3.3 V systems without auxiliary power. It is extremely compact at 66 x 40 mm at the standard font size of 4.8 mm (4 x 10). It is ultra-flat at 2.0 mm without backlight or 5.8 mm including LED backlight and it has 4-bit, 8-bit SPI and I²C interface. It can be easily installed by simply soldering into the board.

Controller SSD1803A with integrated graphic RAM.
High contrast LCD supertwist display.
LED backlighting 45mA
No mounting required because it can be soldered directly onto PCB.
