4D Systems uLCD-220RD TFT LCD Colour Display / Touch Screen, 1.38in, 220 x 220pixels
- RS Stock No.:
- 902-8647
- Mfr. Part No.:
- uLCD-220RD
- Brand:
- 4D Systems
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 902-8647
- Mfr. Part No.:
- uLCD-220RD
- Brand:
- 4D Systems
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 4D Systems | |
| Diagonal Display Size | 1.38in | |
| Interface Type | I2C, TTL | |
| Resolution | 220 x 220pixels | |
| Touch Screen | Yes | |
| Supply Voltage | 5.5 V | |
| Touch Screen Type | Resistive | |
| Backlight Type | LED | |
| Display Mode | Transmissive | |
| AC or DC Input Voltage | dc | |
| Dimensions | 46.9 x 42.4 x 2.5mm | |
| Display Matrix Technology | TFT | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +60°C | |
| Brightness | 171cd/m² | |
| Contrast Ratio | 355:1 | |
| Viewing Area Height | 35.1mm | |
| Standards Met | CE, RoHS Compliant | |
| Number of Colours | 65,536 | |
| Width | 42.4mm | |
| Operating Temperature Range | -10 → +60°C | |
| Depth | 2.5mm | |
| Current Rating | 150mA | |
| Height | 46.9mm | |
Select all | ||
|---|---|---|
Brand 4D Systems | ||
Diagonal Display Size 1.38in | ||
Interface Type I2C, TTL | ||
Resolution 220 x 220pixels | ||
Touch Screen Yes | ||
Supply Voltage 5.5 V | ||
Touch Screen Type Resistive | ||
Backlight Type LED | ||
Display Mode Transmissive | ||
AC or DC Input Voltage dc | ||
Dimensions 46.9 x 42.4 x 2.5mm | ||
Display Matrix Technology TFT | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Brightness 171cd/m² | ||
Contrast Ratio 355:1 | ||
Viewing Area Height 35.1mm | ||
Standards Met CE, RoHS Compliant | ||
Number of Colours 65,536 | ||
Width 42.4mm | ||
Operating Temperature Range -10 → +60°C | ||
Depth 2.5mm | ||
Current Rating 150mA | ||
Height 46.9mm | ||
- COO (Country of Origin):
- PH

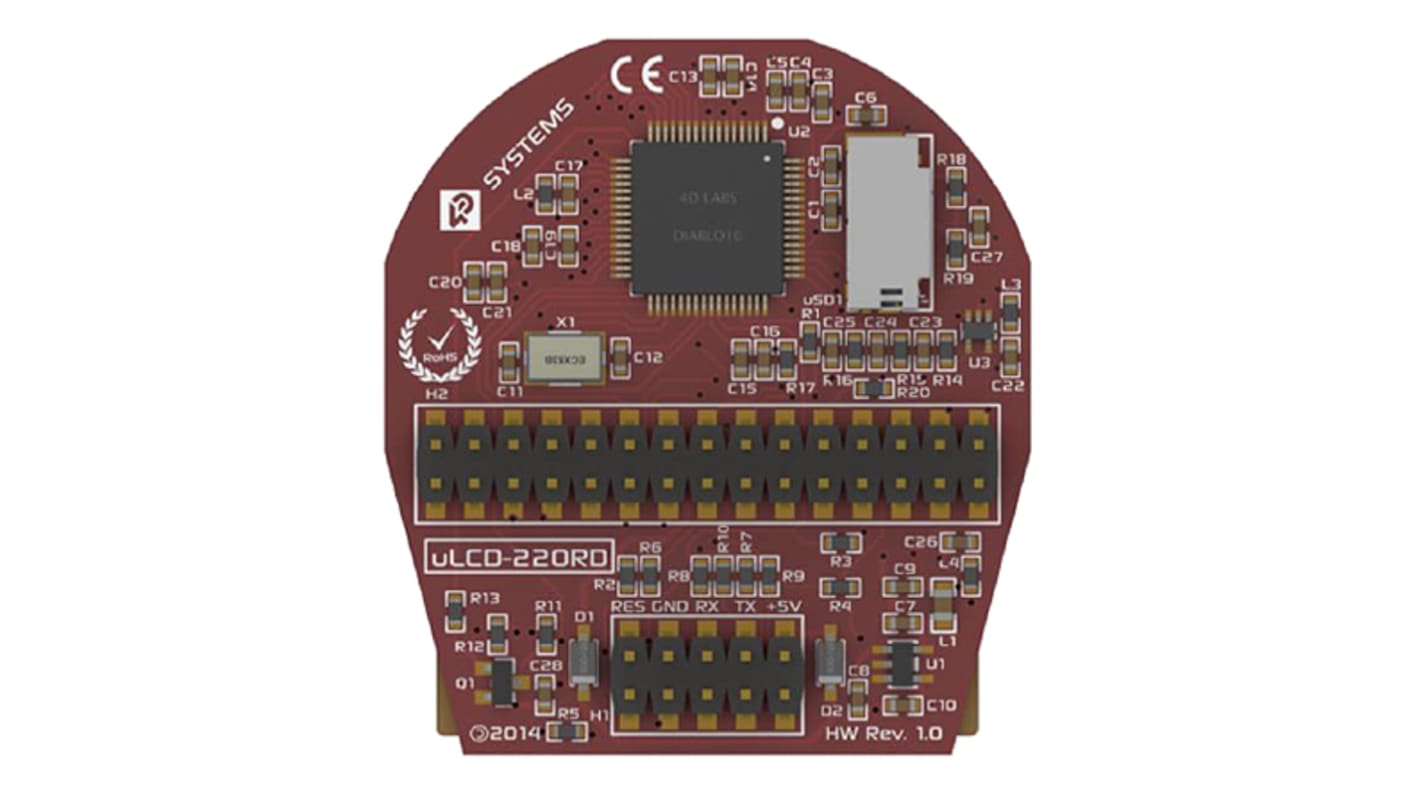

Round TFT LCD Display Module with DIABLO16 processor, 4D Systems
4D Systems' 1.38 inch, round TFT LCD Display Module is perfect for your robotics projects or for use with gauges and other measurement instruments. The module comes with an embedded DIABLO16 graphics controller that supports the display of full colour images, animation, icons and videos. The available Workshop4 IDE development software helps to code your module using 4DGL graphics language.
Features & Benefits of the LCD Display Module
•220 x 220 pixel resolution
•LED backlight
•Up to 65k colours
•6 banks of 32750 bytes of flash memory
•32 KB of SRAM
•16 configurable GPIO pins
•microSD memory card connector
•FAT16 DOS compatible file access
•PWM audio pin
•Supports all Windows fonts
•Suitable for 4 V to 5.5 V power supply
•Dimensions: 42.4 mm x 46.9 mm x 14.1 mm
•Viewing area: 35.1 mm diameter
Features & Benefits of the LCD Display Module
•220 x 220 pixel resolution
•LED backlight
•Up to 65k colours
•6 banks of 32750 bytes of flash memory
•32 KB of SRAM
•16 configurable GPIO pins
•microSD memory card connector
•FAT16 DOS compatible file access
•PWM audio pin
•Supports all Windows fonts
•Suitable for 4 V to 5.5 V power supply
•Dimensions: 42.4 mm x 46.9 mm x 14.1 mm
•Viewing area: 35.1 mm diameter
4D Systems Colour Graphic LCD Displays
