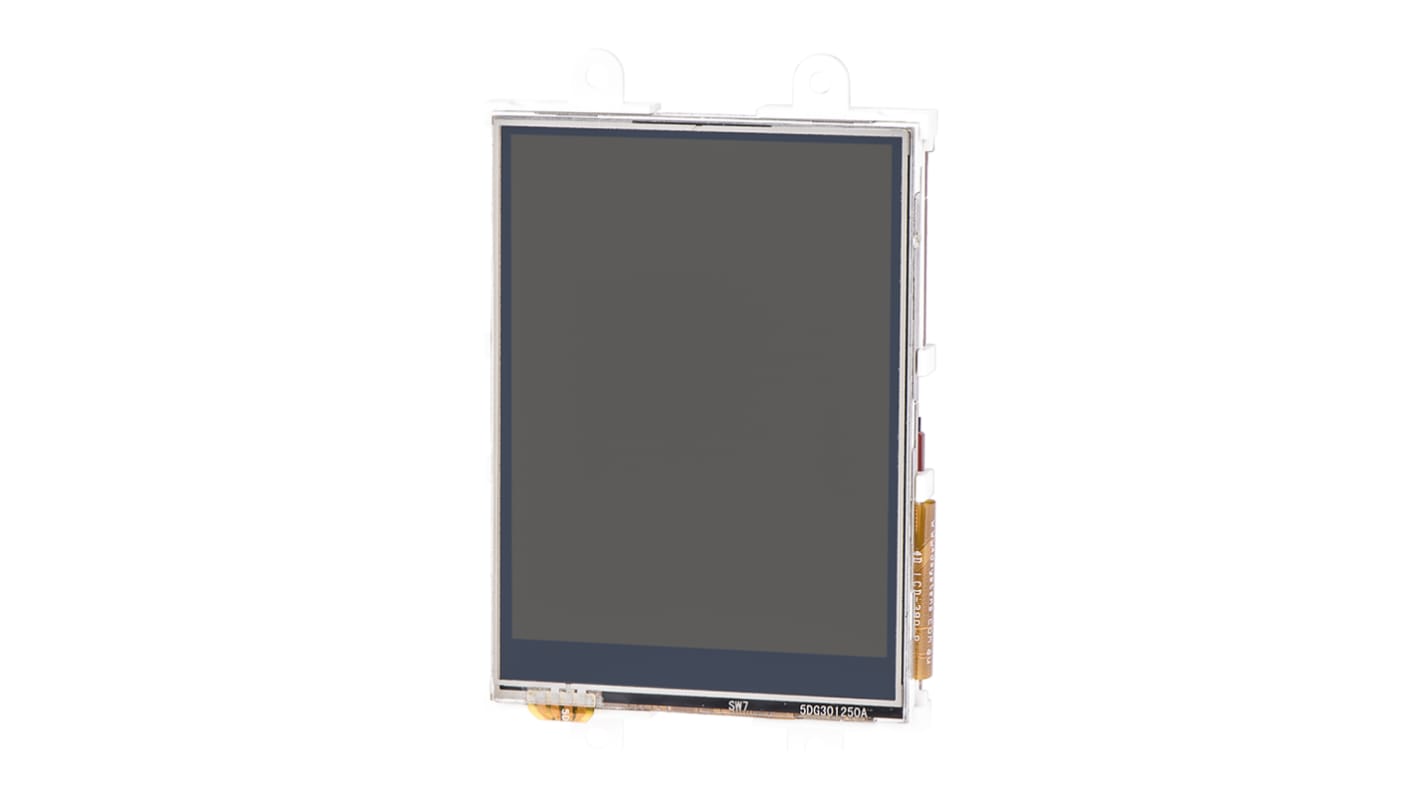

4D Systems uLCD-28PTU-PI TFT LCD Colour Display / Touch Screen, 2.8in VGA, 240 x 320pixels
- RS Stock No.:
- 864-6853
- Mfr. Part No.:
- uLCD-28PTU-PI
- Brand:
- 4D Systems
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£40.83
(exc. VAT)
£49.00
(inc. VAT)
- RS Stock No.:
- 864-6853
- Mfr. Part No.:
- uLCD-28PTU-PI
- Brand:
- 4D Systems
Select all | Attribute | Value |
|---|---|---|
| Brand | 4D Systems | |
| Diagonal Display Size | 2.8in | |
| Interface Type | UART | |
| Resolution | 240 x 320pixels | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 43.20 x 57.60mm | |
| Supply Voltage | 5 V | |
| Touch Screen Type | Resistive | |
| Backlight Type | LED | |
| Display Mode | Transmissive | |
| AC or DC Input Voltage | dc | |
| Dimensions | 52.0 x 83.69 x 15.9mm | |
| Display Matrix Technology | TFT | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | +65°C | |
| Brightness | 150cd/m² | |
| Graphics Array Type | VGA | |
| Aspect Ratio | 2.8 | |
| Series | Picaso | |
| Operating Temperature Range | -35 °C → +75°C | |
| Voltage Rating | 5V | |
| Viewing Area Width | 57.6mm | |
| Depth | 15.9mm | |
| Response Time | 30ms | |
| Current Rating | 120mA | |
| Power Supply Included | No | |
| Height | 83.69mm | |
| Number of Colours | 65,536 | |
| Width | 52mm | |
| Contrast Ratio | 250:1 | |
| Viewing Area Height | 43.2mm | |
Select all | ||
|---|---|---|
Brand 4D Systems | ||
Diagonal Display Size 2.8in | ||
Interface Type UART | ||
Resolution 240 x 320pixels | ||
Touch Screen Yes | ||
Viewing Area Dimensions 43.20 x 57.60mm | ||
Supply Voltage 5 V | ||
Touch Screen Type Resistive | ||
Backlight Type LED | ||
Display Mode Transmissive | ||
AC or DC Input Voltage dc | ||
Dimensions 52.0 x 83.69 x 15.9mm | ||
Display Matrix Technology TFT | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature +65°C | ||
Brightness 150cd/m² | ||
Graphics Array Type VGA | ||
Aspect Ratio 2.8 | ||
Series Picaso | ||
Operating Temperature Range -35 °C → +75°C | ||
Voltage Rating 5V | ||
Viewing Area Width 57.6mm | ||
Depth 15.9mm | ||
Response Time 30ms | ||
Current Rating 120mA | ||
Power Supply Included No | ||
Height 83.69mm | ||
Number of Colours 65,536 | ||
Width 52mm | ||
Contrast Ratio 250:1 | ||
Viewing Area Height 43.2mm | ||
- COO (Country of Origin):
- PH
LCD Displays for Raspberry Pi (PICASO processor), 4D Systems
You can connect the Pi to program the LCD display for graphics, images, text, sound and logging data.
Key Features of the LCD Displays
•PICASO 4DGL graphics controller
•4D Systems Workshop 4 IDE software
•Variety of serial commands
•Power supply comes directly from the Pi
How do I connect my Pi to the display?
Firstly, connect the 4D serial Pi adaptor to your Pi board. Finally, connect the 5-way jumper cable between the adaptor and the LCD display. It's that easy.
Contents
•LCD display
•4D serial Pi adaptor
•150 mm 5-way female-to-female jumper cable
•Quick start user guide
