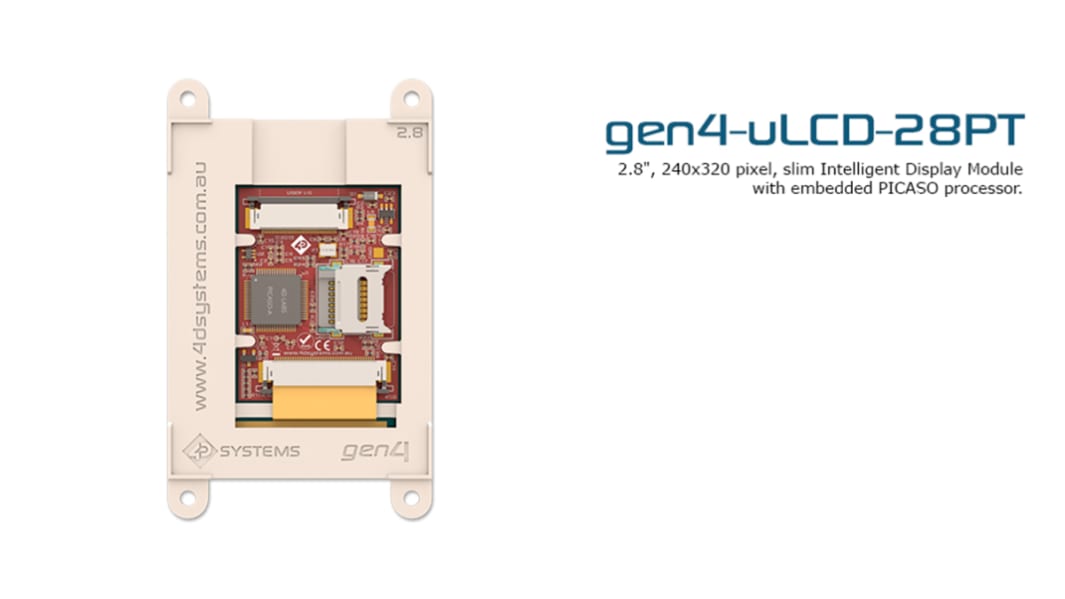

4D Systems gen4-uLCD-28PT TFT LCD Display Module / Touch Screen, 240 x 320pixels

  • RS Stock No. 175-7746
  • Mfr. Part No. gen4-uLCD-28PT
  • Brand 4D Systems
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): AU
Product Details

4D Systems LCD Display Module

The 4D Systems LCD 2.8in display module with an integrated 4-wire resistive touch panel is designed specifically for ease of integration and use, with careful consideration for space requirements and functionality. This module is embedded with PICASO processor. It has 240 x 320 pixels resolution and 140cd/m² brightness. The display module offers an active viewing area of width 43.2mm and height 57.6mm.

Features and Benefits

• Built-in extensive 4DGL graphics and system library functions
• Dedicated PWM audio pin driven by WAV files from micro-SD card and for sound generation for an external amplifier
• Display full colour images, animation, icons and video clips
• DOS compatible file access (FAT16 format) as well as low level access to card memory
• On-board latch type micro-SD memory card connector for multimedia storage and data logging purposes
• RGB 65K true to life colours
• Universal intelligent LCD-TFT display module powered by the Picaso processor

Certifications

• CE compliant
• REACH compliant

Specifications
Attribute Value
Resolution 240 x 320pixels
Touch Screen Yes
Viewing Area Dimensions 57.6 x 43.2mm
Supply Voltage 4 → 5.5 V
Touch Screen Type Resistive
Backlight Type LCD
Display Mode Transmissive
AC or DC Input Voltage Dc
Dimensions 52.1 x 7.3 x 87.3mm
Display Matrix Technology TFT
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Contrast Ratio 500:1
Operating Temperature Range -20 → +70°C
Width 52.1mm
Brightness 140cd/m²
Voltage Rating 5.5V
Depth 7.3mm
Viewing Area Height 57.6mm
Power Supply Included Yes
Viewing Area Width 43.2mm
Current Rating 150mA
Series gen4
Height 87.3mm
Available to back order for despatch 31/01/2020
Price Each
£ 28.68
(exc. VAT)
£ 34.42
(inc. VAT)
Units
Per unit
1 - 4
£28.68
5 - 9
£26.88
10 - 24
£25.30
25 - 49
£23.90
50 +
£23.25
