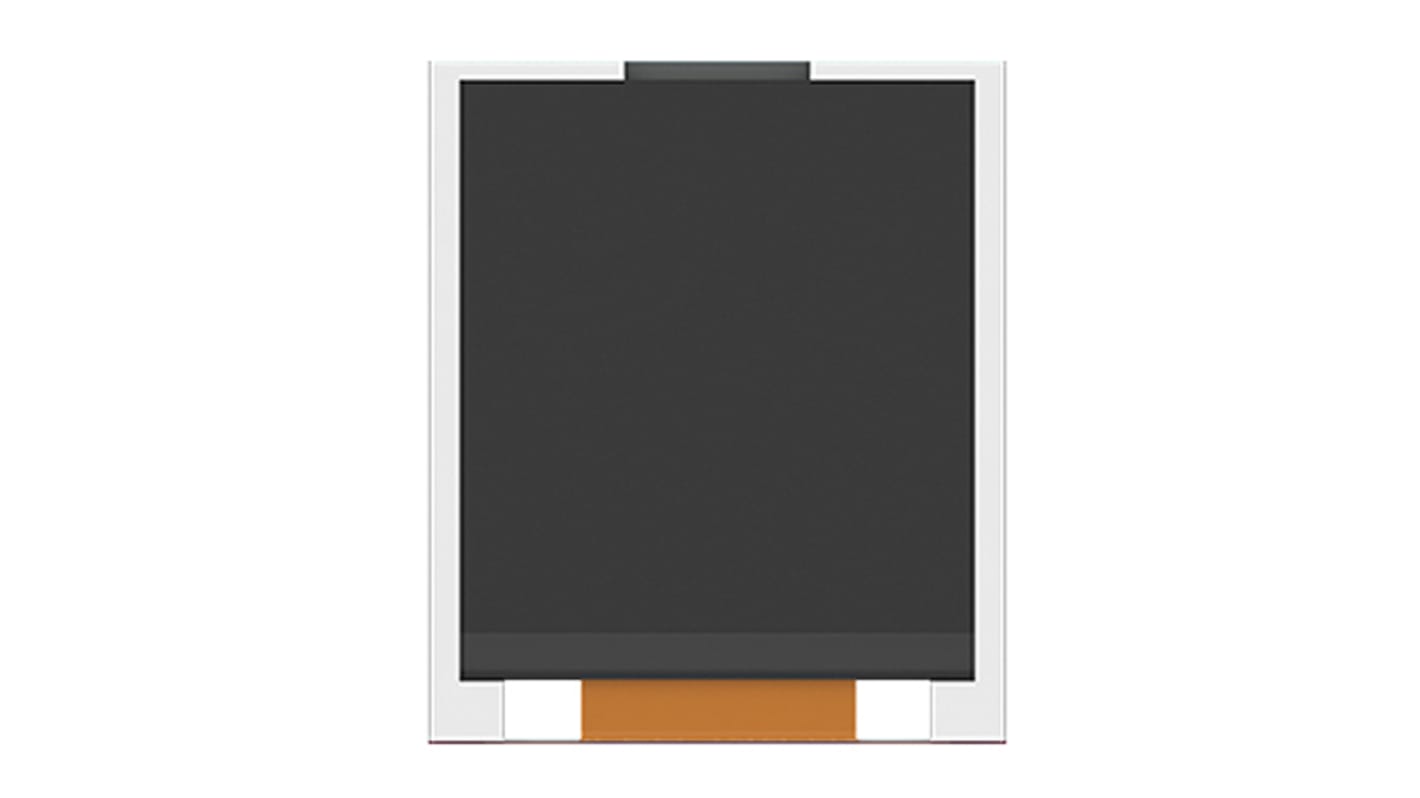

4D Systems 4DLCD-144 TFT LCD Colour Display, 1.4in, 128 x 128pixels

  • RS Stock No. 171-1832
  • Mfr. Part No. 4DLCD-144
  • Brand 4D Systems
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
Product Details

4DLCD-144 LCD Module, 4D Systems

The 4DLCD-144 LCD module is a non-touch, colour active matrix LCD TFT module that comprises of a LCD panel, ST7735R single-chip driver, a flexible printed circuit (FPC) connector and a backlight unit.

Features & Benefits of the 4DLCD-144 LCD Module
•128 x 128 pixels
•Up to 65k colours
•12:00 viewing direction
•Suitable for a 2.8 V power supply
•Dimensions: 33.5 mm x 37.5 mm x 2.6 mm

4D Systems Colour Graphic LCD Displays

Specifications
Attribute Value
Diagonal Display Size 1.4in
Interface Type Parallel
Resolution 128 x 128pixels
Touch Screen No
Viewing Area Dimensions 25.5 x 26.5mm
Supply Voltage 3.3 V
Touch Screen Type None
Backlight Type LED
Display Mode Transmissive
AC or DC Input Voltage Dc
Dimensions 36.51 x 30.9 x 1.6mm
Display Matrix Technology TFT
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Depth 1.6mm
Contrast Ratio 450:1
Standards Met RoHS Compliant
Number of Colours 65,536
Width 30.9mm
Operating Temperature Range -20 → +70°C
Response Time 240ms
Brightness 250cd/m²
Current Rating 10mA
Voltage Rating 3.1V
Viewing Area Width 25.5mm
Height 36.51mm
Viewing Area Height 26.5mm
50 In stock - FREE next working day delivery available
Price Each (In a Box of 25)
£ 10.203
(exc. VAT)
£ 12.244
(inc. VAT)
Units
Per unit
Per Box*
25 +
£10.203
£255.075
*price indicative
