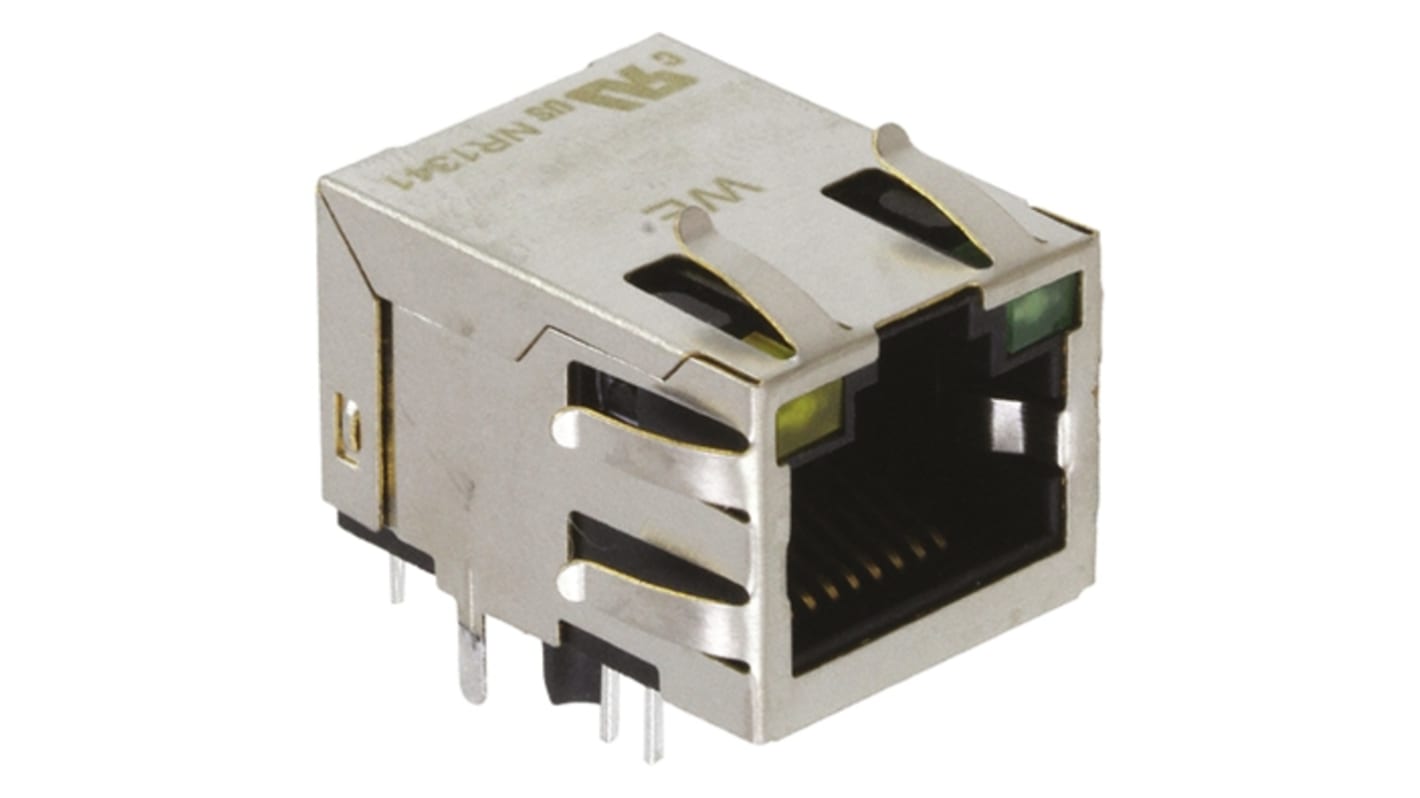

Wurth Elektronik Through Hole LAN Ethernet Transformer, 85 °C 16 mm, -40 °C 13.55 mm 21.3 mm

View all LAN Ethernet Transformers

Subtotal (1 unit)*

£7.21

(exc. VAT)

£8.65

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£7.21

*price indicative

Packaging Options:
Development Kit Box with a flash stating "Win"
Win A Würth Elektronik Lighting Development Kit
Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.
Claim my Lighting Kit
RS Stock No.:
814-9958
Mfr. Part No.:
7499211125
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Product Type

LAN Ethernet Transformer

Insertion Loss

-1.7dB

Mount Type

Through Hole

Depth

21.3mm

Length

16mm

Inductance

350 μH

Width

13.55 mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Maximum Operating Frequency

100MHz

Turns Ratio

1:1

Supported Ethernet Standards

10/100 Base-T

Standards/Approvals

UL-94V0

Isolation Voltage

1500Vrms

Minimum Operating Frequency

1MHz

COO (Country of Origin):
CN

Würth RJ Data Sockets with integrated transformer/ common mode choke


A range of RJ connectors with integrated transformer/common mode choke. Perfect for various networking applications which require a well built and functioning RJ connection. All models are highly reliable and excellent quality.

Features & Benefits


350 μH min. OCL with 8 mA bias;Complies with IEEE 802.3;Typical applications include ADSl modems, Embedded PC, LAN applications, HUB, routers and switches.
