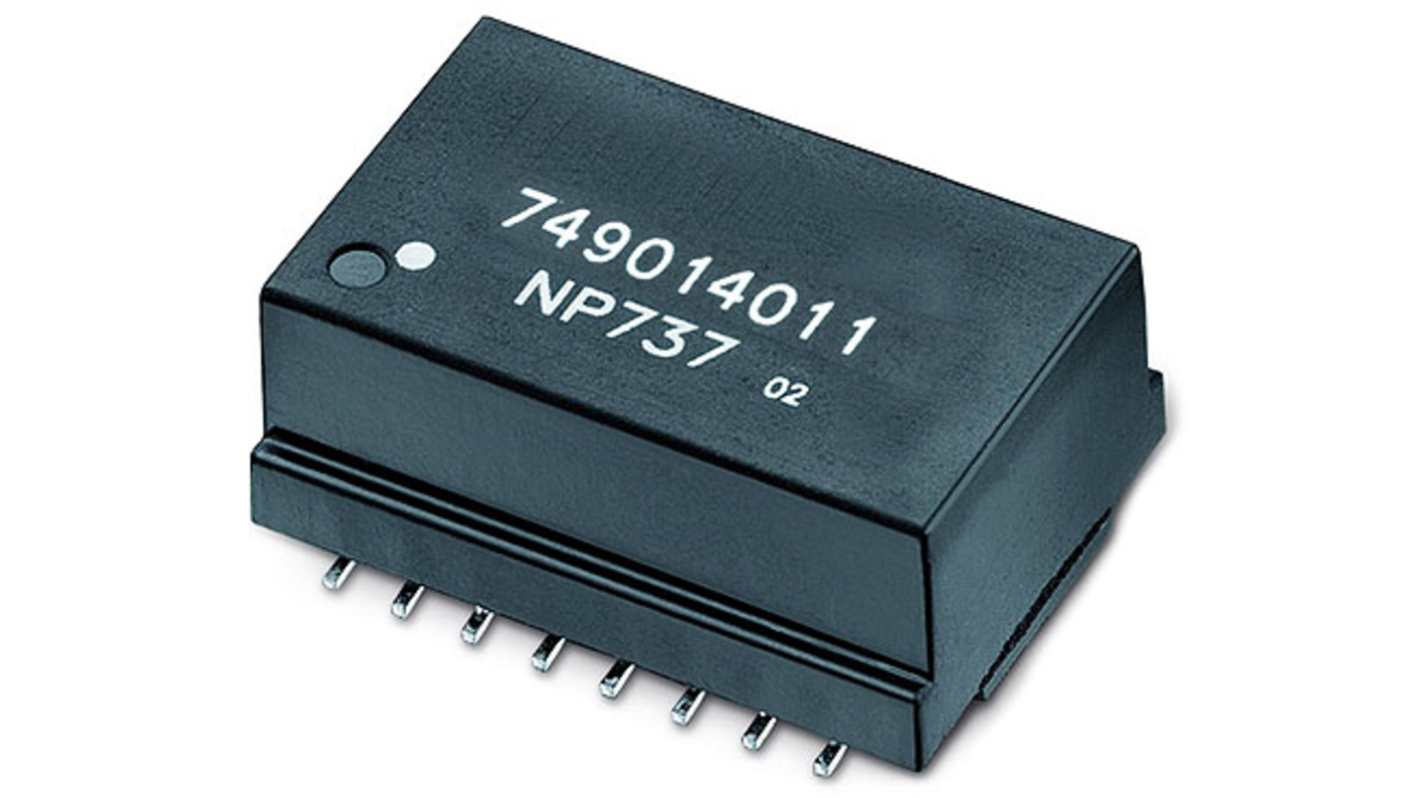

Surface Mount Lan Ethernet Transformer, 24.55 x 18.25mm

View all LAN Ethernet Transformers
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
135-3812
Mfr. Part No.:
749014011
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Number of Output Ports

1

Insertion Loss

-1.2dB

Mounting Type

Surface Mount

Dimensions

24.55 x 18.25mm

Length

24.55mm

Width

18.25mm

Standards Met

IEC 60601-1, IEC 60950-1, IEEE 802.3

Construction

Enclosed

Turns Ratio

1:1

Minimum Temperature

0°C

Maximum Temperature

+70°C

Isolation Voltage

4000V ac

Termination Type

Solder

Wurth 10/100/1000 1 Port LAN Transformers


WE-LAN transformers from Wurth Elektronik are designed for Ethernet and PoE (Power over Ethernet) applications. Other suitable applications included 1 Gbit Ethernet, Hub, Router and Switches. WE-LAN transformers are compliant with most ICs for Ethernet applications such as AMD, Globespan, Intel and Realtek. These surface mount transformers are compliant with IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt standards.

Features


Compliant with IEEE 802.3, IEEE 802.3af and IEEE 802.3at standards
Surface Mount

Applications


Ethernet
Power over Ethernet
1 Gigabit Ethernet
Compliant with most IC’s for ethernet applications like Intel, AMD, Globespan and RealTek
Hub, Router, Switches
