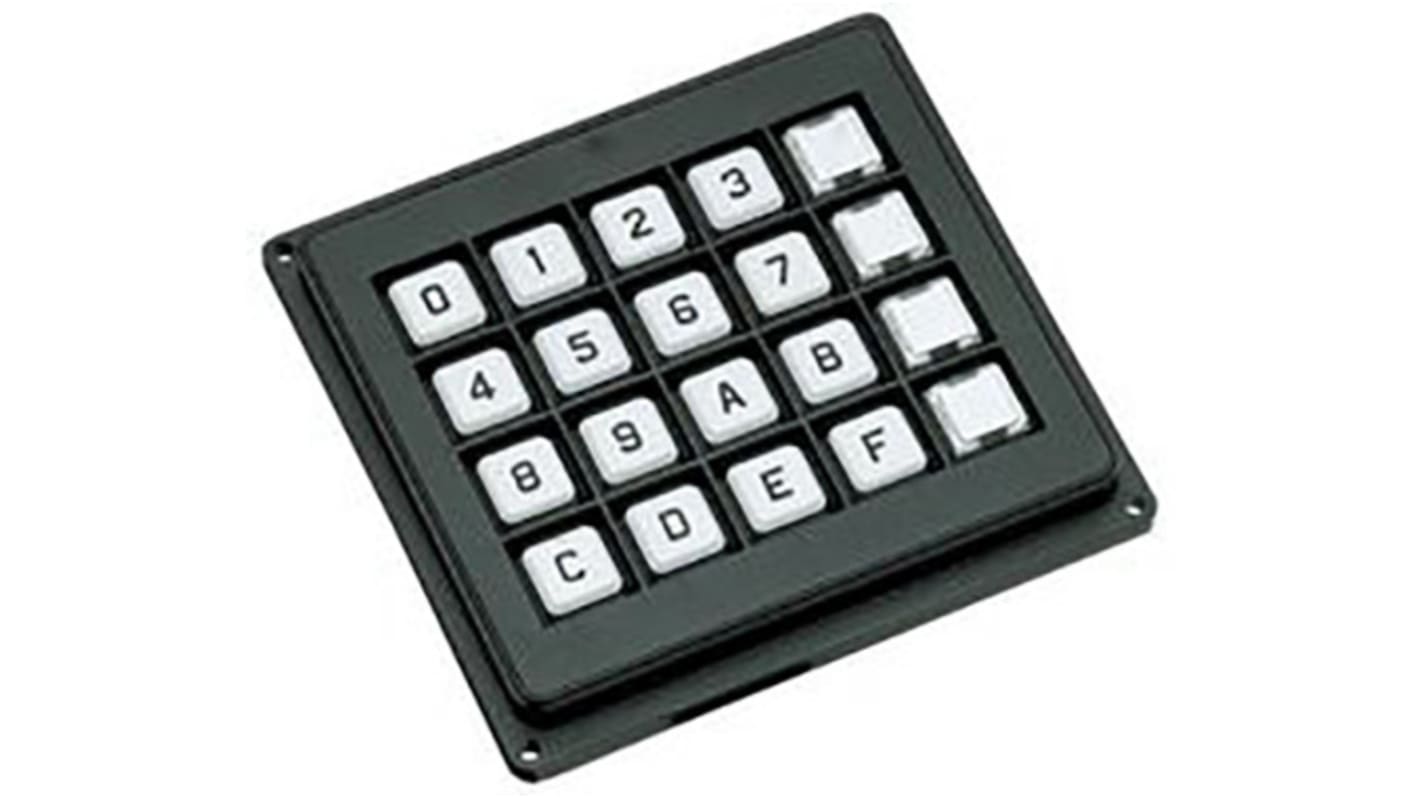

Grayhill 20 Key ABS Polycarbonate Keypad

  • RS Stock No. 878-0773
  • Mfr. Part No. 86JB2-201
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Specifications
Attribute Value
Keypad Layout 5 x 4
Membrane Operation Yes
Number of Keys 20
Keypad Output Matrix
Case Material ABS Polycarbonate
Case Colour Black
Mechanical Life Per Key 3000000Operations
Contact Material Phosphor Bronze
Actuator Colour Black, White
Actuator Material ABS Plastic
Depth Behind Panel 3.3mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature 80°C
Operating Temperature Range -40 → +80°C
Voltage Rating 24V dc
Available to back order for despatch 11/02/2020
Price Each
£ 34.84
(exc. VAT)
£ 41.81
(inc. VAT)
Units
Per unit
1 +
£34.84
