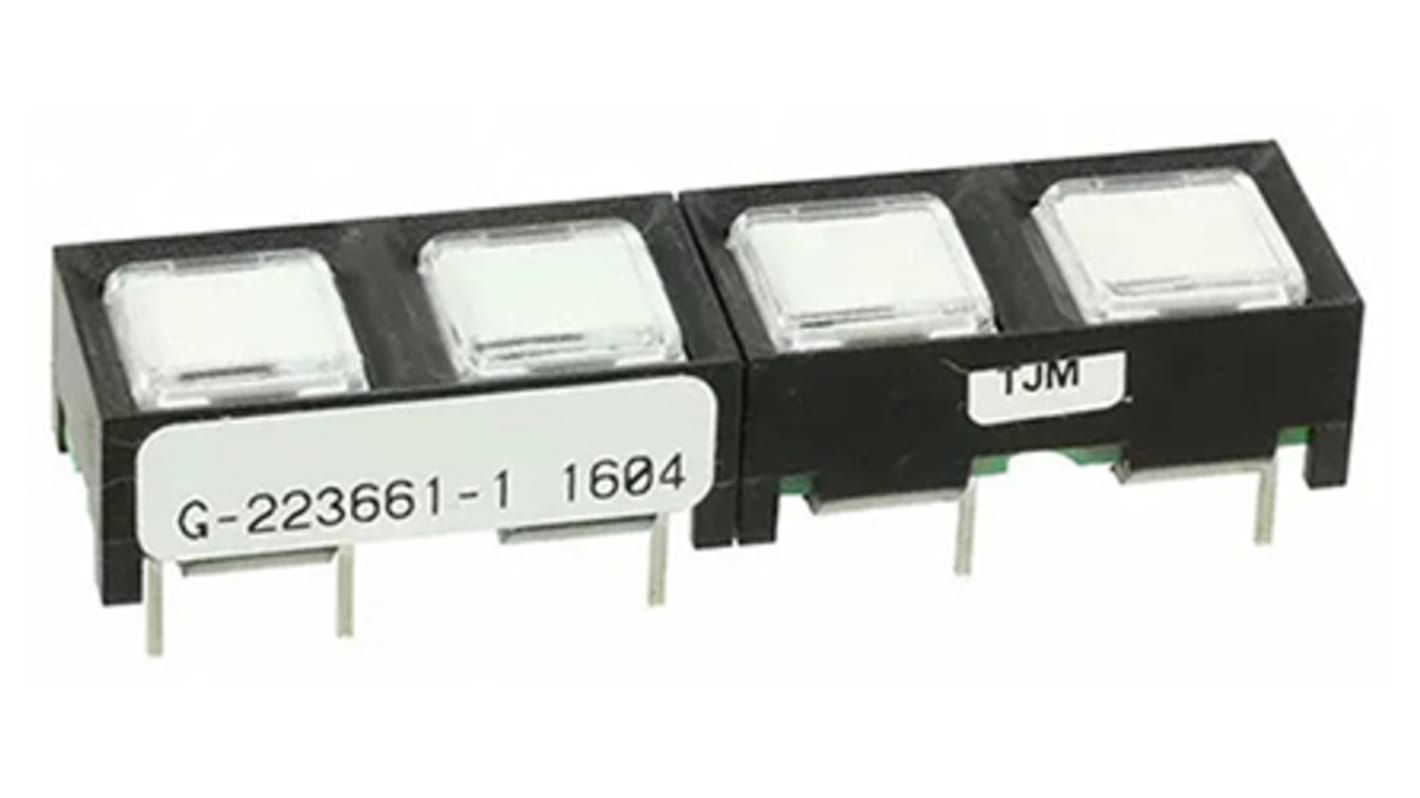

Grayhill 4 Key ABS Polycarbonate Keypad

View all Keypads
Discontinued
RS Stock No.:
877-8685
Mfr. Part No.:
87FC3-201
Brand:
Grayhill
Find similar products by selecting one or more attributes.
Select all

Brand

Grayhill

Keypad Layout

1 x 4

Number of Keys

4

Case Material

ABS Polycarbonate

Case Colour

Black

Mechanical Life Per Key

3000000Operations

Contact Material

Phosphor Bronze

Actuator Colour

White

Actuator Material

ABS Plastic

Depth Behind Panel

8.9mm

Minimum Operating Temperature

-40°C

Operating Temperature Range

-40 → +80°C

Voltage Rating

24V dc

Maximum Operating Temperature

+80°C

COO (Country of Origin):
US

Grayhill 87 Series Modular Keypads


The 87 series modular keyboards have a low profile and plug into any printed circuit board from a 1/32nd to 1/8th thickness. Users can build a custom keyboard with identical button spacing’s no matter how they are stacked, always maintaining a 0.5 inch button centre. Each button has a life expectancy of 3,000,000 operations helping to reduce maintenance costs and increase reliability. These modules are unsealed and the snap-dome contacts provide positive feedback helping the user to be fully aware when a button has been pushed or not.

Features:
1, 2, 3, 4, 5 and 6 button individual key switches
12 and 16 button keypads
Maintain 0.5 inch button centres
Up to 3,000,000 operations per button
Low profile design
