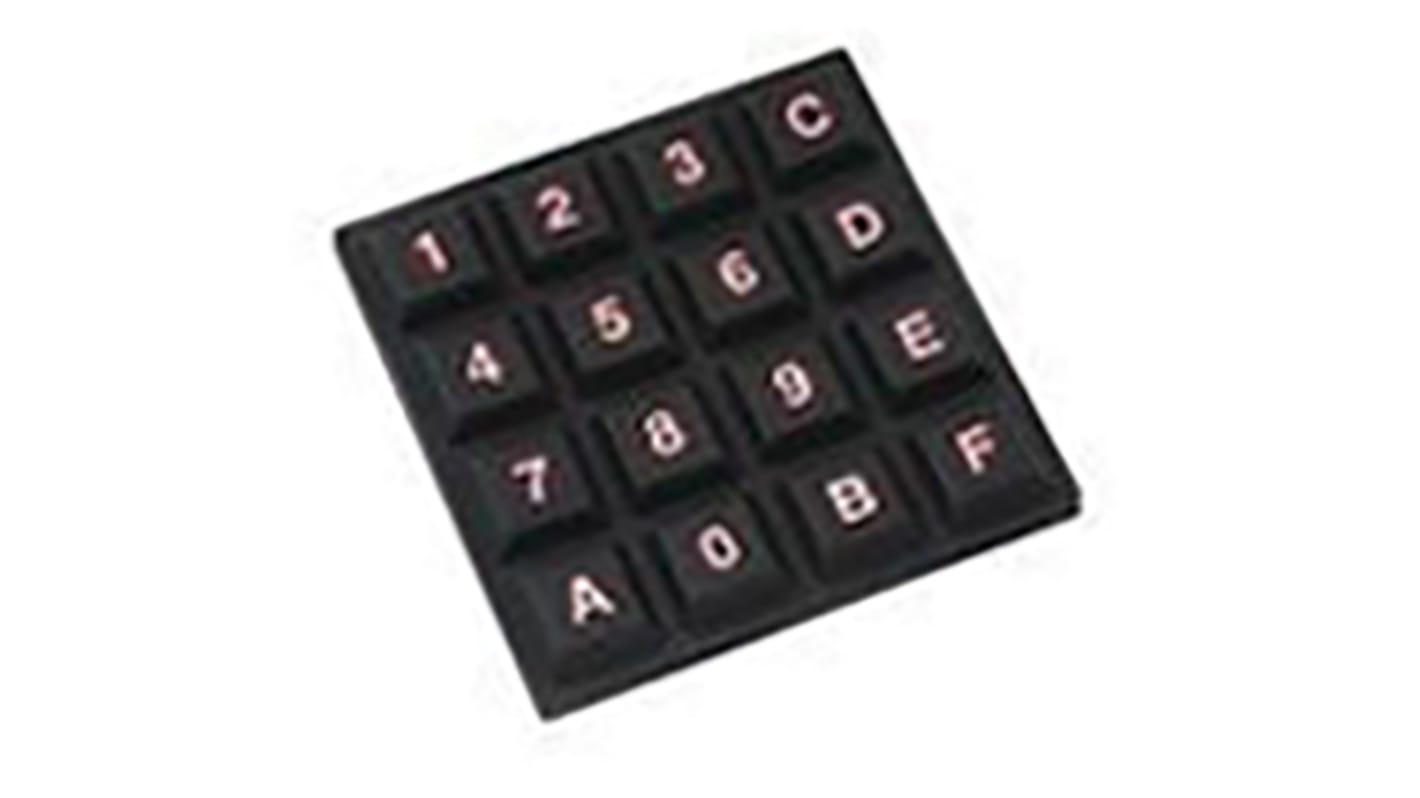

Grayhill 16 Key Illuminated Backlit Keypad

  • RS Stock No. 877-8631
  • Mfr. Part No. 84BLN-BB2-014AN
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Grayhill 84BL Series Standard Keypads, Backlit

The 84BL series has been manufactured from a waterproof silicone rubber making them ideal for both indoor and outdoor applications. They are also backlit for use in low light conditions. They have audible, tactile contacts which provide the user with confidence as to whether or not a button has been pushed. Each button has a life expectancy of 3,000,000 operations helping to reduce maintenance costs and increase reliability. Various legend options are available as well as 3x4 and 4x4 configurations.

Features:
Backlit for low light applications
Waterproof silicone rubber
Audible, tactile contacts
Low contact resistance
Optional RFI/EMI shielding
3,000,000 operations per button

Specifications
Attribute Value
Keypad Layout 4 x 4
Membrane Operation Yes
Number of Keys 16
Keypad Output Matrix
Illuminated Yes
Case Colour Black
Mechanical Life Per Key 3000000Operations
Contact Material Copper Alloy
Actuator Colour Black, White
Actuator Material Silicone Rubber
Depth Behind Panel 5.3mm
Voltage Rating 24V dc
Available to back order for despatch 10/03/2020
Price Each (In a Pack of 100)
£ 98.507
(exc. VAT)
£ 118.208
(inc. VAT)
Units
Per unit
Per Pack*
100 +
£98.507
£9,850.70
*price indicative
