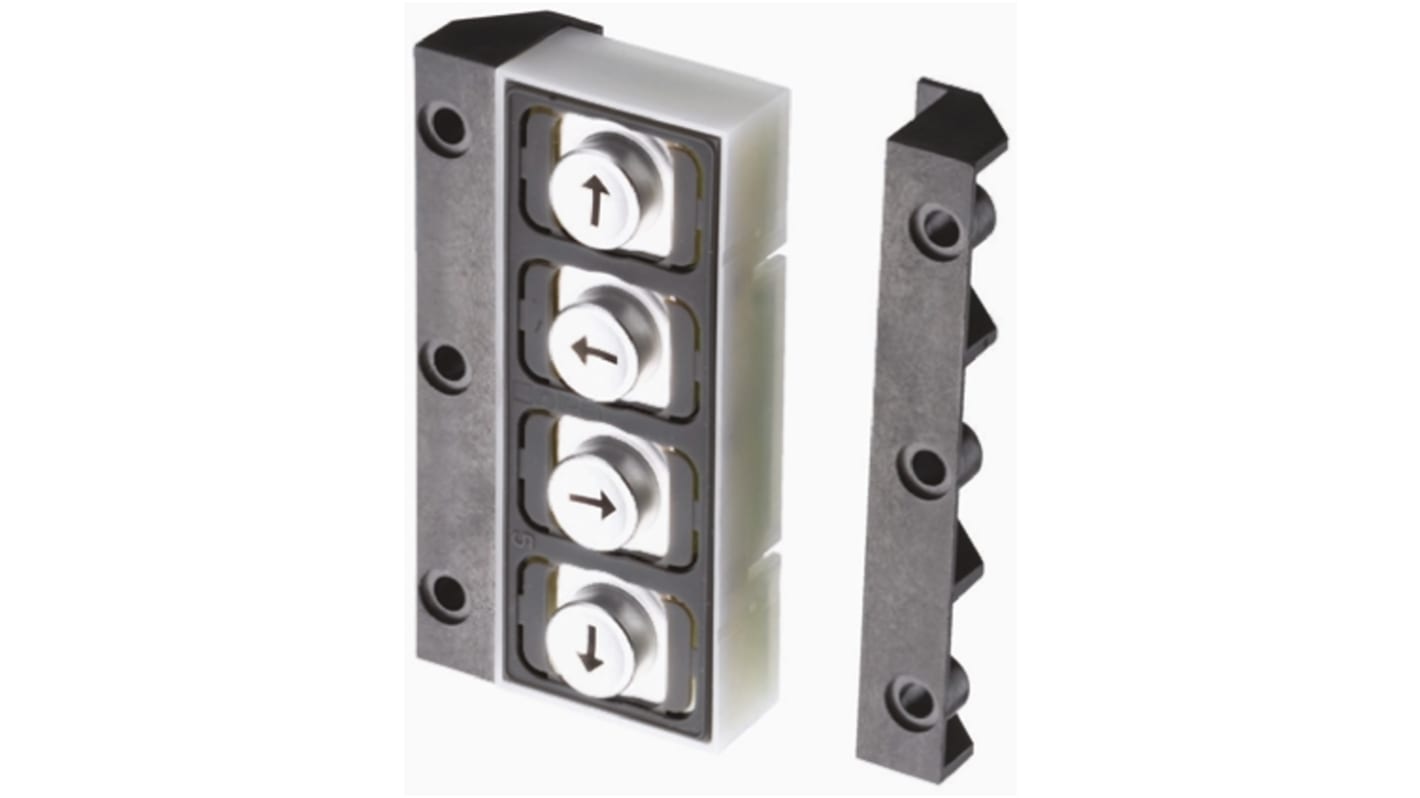

EOZ IP67 4 Key Plastic Keypad

  • RS Stock No. 199-456
  • Mfr. Part No. M04PARSANLPX040
  • Brand EOZ
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

M Series Keypads

Rugged, cost effective industrial or public use, vandal resistant keypads
Keypads can be mounted from the rear, via mounting holes in the back of the keypad housing, or by utilising the mounting kit
Mounting kit comprising silicone sealing gasket and 2 ABS polycarbonate mounting brackets (included)
IK 09 impact resistance (behind 3mm thick panel)
IP67 front face
Anti-twist and anti-wrench 12mm diameter aluminium keys
Tactile feel (silicone membrane with carbon pills, on gold coated PCB)
Supply voltage 5Vdc 240mA max.
Actuation force 1.9N +/- 30%, travel 0.8 to 1.3mm
Contact resistance <200Ω
Typical applications include Access control, Telecom, Transport, Vending, Security etc

//media.rs-online.com/t_line/L0199490-01.gif
Specifications
Attribute Value
Keypad Layout 4 x 1
Membrane Operation Yes
Number of Keys 4
Keypad Output Common Point
IP Rating IP67
Case Material Plastic
Mechanical Life Per Key 4000000Operations
Contact Material Gold Plated Carbon
Actuator Colour Black
Actuator Material Anodised Aluminium
Depth Behind Panel 24.2mm
Minimum Operating Temperature -25°C
Operating Temperature Range -25 → +85°C
Maximum Operating Temperature +85°C
66 In stock for delivery within 1 working days
Price Each
£ 21.14
(exc. VAT)
£ 25.37
(inc. VAT)
Units
Per unit
1 +
£21.14
Not available for guaranteed pre 9am/10am delivery
