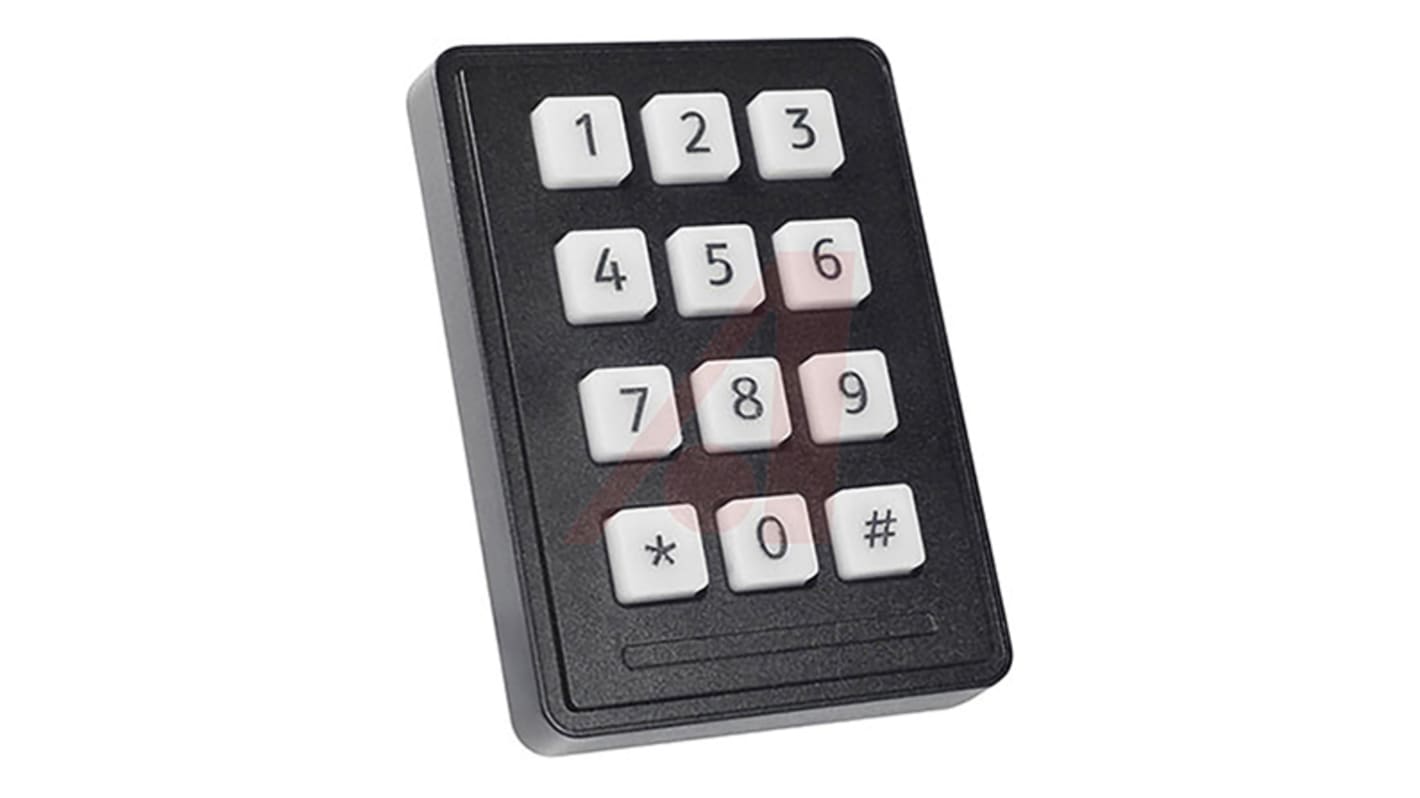

Storm Polymer Keypad Lock

These tough, water resistant keypads feature moving, tactile keys with a responsive ’over-centre’ action. High contrast white keytop characters are permanently laser marked on black polymer keys. Function keys are in an easily recognizable colour coded format to present a contemporary and visually striking keypad.

• Contact Bounce 5 ms (max)
• Contact Resistance 100 ohms (max)
• Insulation Resistance 50 Mohms (min)
• Breakdown Voltage 500 V AC (max 60 secs.
• Switch Rating 24V DC 50mA (max)
• Connection X-Y Matrix

• Operational Life 2 million cycles (min) per key
• Keytop Travel 1.4mm nominal
• Actuation Force 150 grams nominal
• Connector 0.1"pitch, gold plated square pin
• Mating Connector Molex 2695 Series or equivalent

• Operational Temp -20°C to 60°C
• Impact Rating 5 J
• Vibration/Shock ETSI 300 019 5M3
• Water / Dust sealed IP65 (when fixed to suitable panel)

• High contrast laser marked keytop characters and colour coded function keys
• IP65 – sealed for use in wet or dirty environments
• Impact, shock and vibration resistant to survive in demanding industrial applications
• Keys are arranged on an X-Y matrix circuit terminated via a 0.1” pitch, square pin, male connector with an integral locking ramp
• Directly compatible with the Storm 450 and 450i USB keypad Interface
• Available in integral, white light LED illumination
