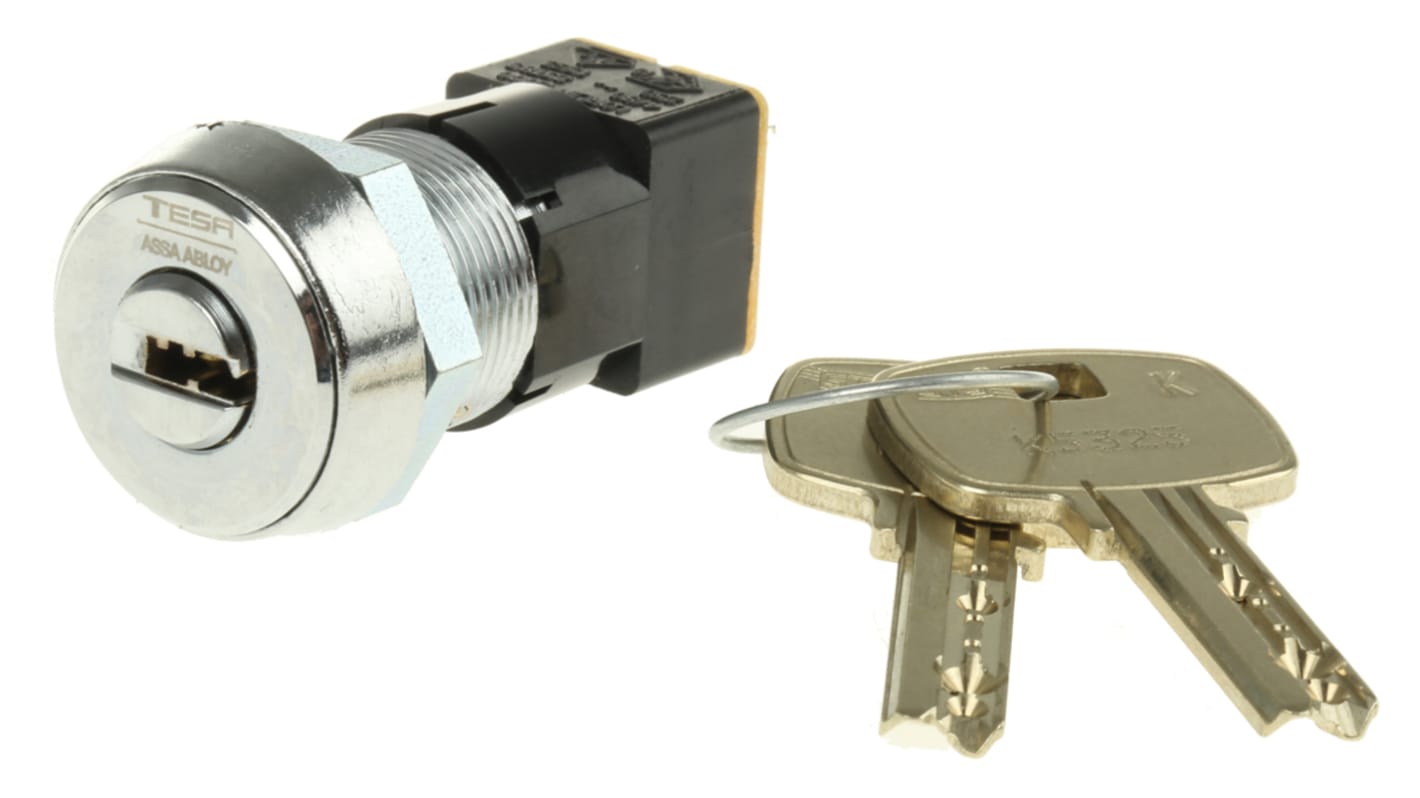

Lorlin High Security Key Switch, DPST, 50mA 2-Way Flat-Key
- RS Stock No.:
- 562-602
- Mfr. Part No.:
- DSL-6-C-S
- Brand:
- Lorlin
Bulk discount available
Subtotal (1 unit)*
£69.03
(exc. VAT)
£82.84
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 53 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £69.03 |
| 10 - 49 | £66.06 |
| 50 - 99 | £61.51 |
| 100 - 249 | £55.36 |
| 250 + | £47.77 |
*price indicative
- RS Stock No.:
- 562-602
- Mfr. Part No.:
- DSL-6-C-S
- Brand:
- Lorlin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lorlin | |
| Product Type | High Security Key Switch | |
| Number of Positions | 2 | |
| Switch Operation | Off-On | |
| Contact Configuration | DPST | |
| Switch Contact Current | 50mA | |
| Key Type | Flat | |
| Terminal Type | Solder | |
| Bezel Shape | Round | |
| Contact DC Voltage | 30V dc | |
| Contact AC Voltage | 240V ac | |
| Key Index Angle | 90° | |
| Standards/Approvals | RoHS | |
| Contact Material | Silver Cadmium Oxide | |
| Minimum Operating Temperature | -25°C | |
| Mechanical Life | 15000Cycles | |
| Maximum Operating Temperature | 85°C | |
| Series | DSL | |
| Select all | ||
|---|---|---|
Brand Lorlin | ||
Product Type High Security Key Switch | ||
Number of Positions 2 | ||
Switch Operation Off-On | ||
Contact Configuration DPST | ||
Switch Contact Current 50mA | ||
Key Type Flat | ||
Terminal Type Solder | ||
Bezel Shape Round | ||
Contact DC Voltage 30V dc | ||
Contact AC Voltage 240V ac | ||
Key Index Angle 90° | ||
Standards/Approvals RoHS | ||
Contact Material Silver Cadmium Oxide | ||
Minimum Operating Temperature -25°C | ||
Mechanical Life 15000Cycles | ||
Maximum Operating Temperature 85°C | ||
Series DSL | ||
- COO (Country of Origin):
- GB
19mm High Security Key Switch - DSL Series
Key switches with dimpled 6 pin lock suitable for mains switching
Two part construction with front of panel insertion, the switch module snaps - on from the rear
Common key or random key profile with 2 keys per lock
Trapping 1 position key removal or non trapping 2 position key removal
90° lock movement
Solder terminals
Contact rating 4 / 80 A @ 250 Vdc
