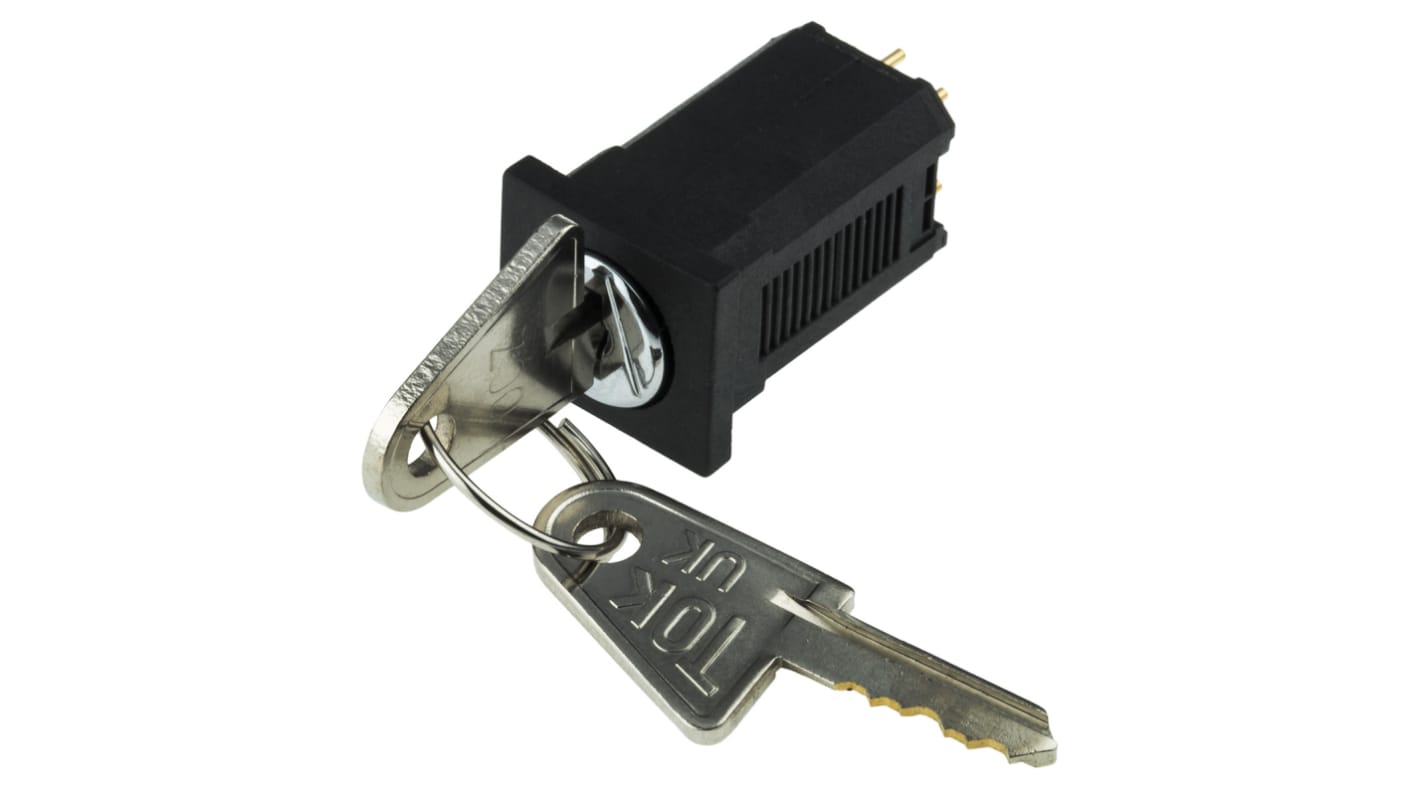

Key Switch, DP-CO, 100 mA @ 30 V dc 2-Way Common-Key
- RS Stock No.:
- 332-486
- Mfr. Part No.:
- M1-HA-AA-AE
- Brand:
- Saia-Burgess
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£19.52
(exc. VAT)
£23.42
(inc. VAT)
- RS Stock No.:
- 332-486
- Mfr. Part No.:
- M1-HA-AA-AE
- Brand:
- Saia-Burgess
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Saia-Burgess | |
| Number of Positions | 2 | |
| Switch Operation | Off-On-On | |
| Contact Configuration | DP-CO | |
| Contact Current Rating | 100 mA @ 30 V dc | |
| Key Type | Common | |
| Terminal Type | Through Hole | |
| Case Material | Glass Fibre Reinforced Nylon | |
| Bezel Shape | Rectangular | |
| Depth Behind Panel | 19.8mm | |
| Key Index Angle | 90° | |
| Contact Material | Gold Plated Brass (Stationary); Gold Plated Phosphor Bronze (Movable) | |
| Operating Temperature Range | -20 → +60°C | |
| Minimum Operating Temperature | -20°C | |
| Mechanical Life | 50000Operations | |
| Maximum Operating Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand Saia-Burgess | ||
Number of Positions 2 | ||
Switch Operation Off-On-On | ||
Contact Configuration DP-CO | ||
Contact Current Rating 100 mA @ 30 V dc | ||
Key Type Common | ||
Terminal Type Through Hole | ||
Case Material Glass Fibre Reinforced Nylon | ||
Bezel Shape Rectangular | ||
Depth Behind Panel 19.8mm | ||
Key Index Angle 90° | ||
Contact Material Gold Plated Brass (Stationary); Gold Plated Phosphor Bronze (Movable) | ||
Operating Temperature Range -20 → +60°C | ||
Minimum Operating Temperature -20°C | ||
Mechanical Life 50000Operations | ||
Maximum Operating Temperature +60°C | ||
- COO (Country of Origin):
- GB
Miniature Key Switches
Rectangular Bezel
3 position selection
Gold plated contacts
Panel Clip fixing, panel hole cutter stock no. 605-633
Panel Cut-out 19 x 19
PCB connections (hand soldering possible)
Test Voltage: 1KV for 1 min
Supplied with 2 identical keys. Spare Keys not available
3 position selection
Gold plated contacts
Panel Clip fixing, panel hole cutter stock no. 605-633
Panel Cut-out 19 x 19
PCB connections (hand soldering possible)
Test Voltage: 1KV for 1 min
Supplied with 2 identical keys. Spare Keys not available
