Samtec, PCIEC-064-0500-EC-EM-P-85 Jumper Straight Male/Female Grey, Blue Jumper Cable Assembly 64 Way 4 Row 1 mm Pitch
- RS Stock No.:
- 208-8946
- Mfr. Part No.:
- PCIEC-064-0500-EC-EM-P-85
- Brand:
- Samtec
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£60.74
(exc. VAT)
£72.89
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £60.74 |
| 10 - 49 | £59.04 |
| 50 - 99 | £57.46 |
| 100 - 249 | £55.94 |
| 250 + | £54.48 |
*price indicative
- RS Stock No.:
- 208-8946
- Mfr. Part No.:
- PCIEC-064-0500-EC-EM-P-85
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Sub Type | Jumper Cable Assembly | |
| Product Type | Jumper | |
| Number of Contacts | 64 | |
| Pitch | 1mm | |
| Housing Material | Nylon | |
| Connector Gender | Male/Female | |
| Colour | Grey, Blue | |
| Number of Rows | 4 | |
| Length | 500mm | |
| Series | PCIEC-064-0500-EC-EM-P-85 | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold over Tin | |
| Contact Gender | Female/Male | |
| Orientation | Straight | |
| Depth | 8mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Sub Type Jumper Cable Assembly | ||
Product Type Jumper | ||
Number of Contacts 64 | ||
Pitch 1mm | ||
Housing Material Nylon | ||
Connector Gender Male/Female | ||
Colour Grey, Blue | ||
Number of Rows 4 | ||
Length 500mm | ||
Series PCIEC-064-0500-EC-EM-P-85 | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold over Tin | ||
Contact Gender Female/Male | ||
Orientation Straight | ||
Depth 8mm | ||
Standards/Approvals No | ||

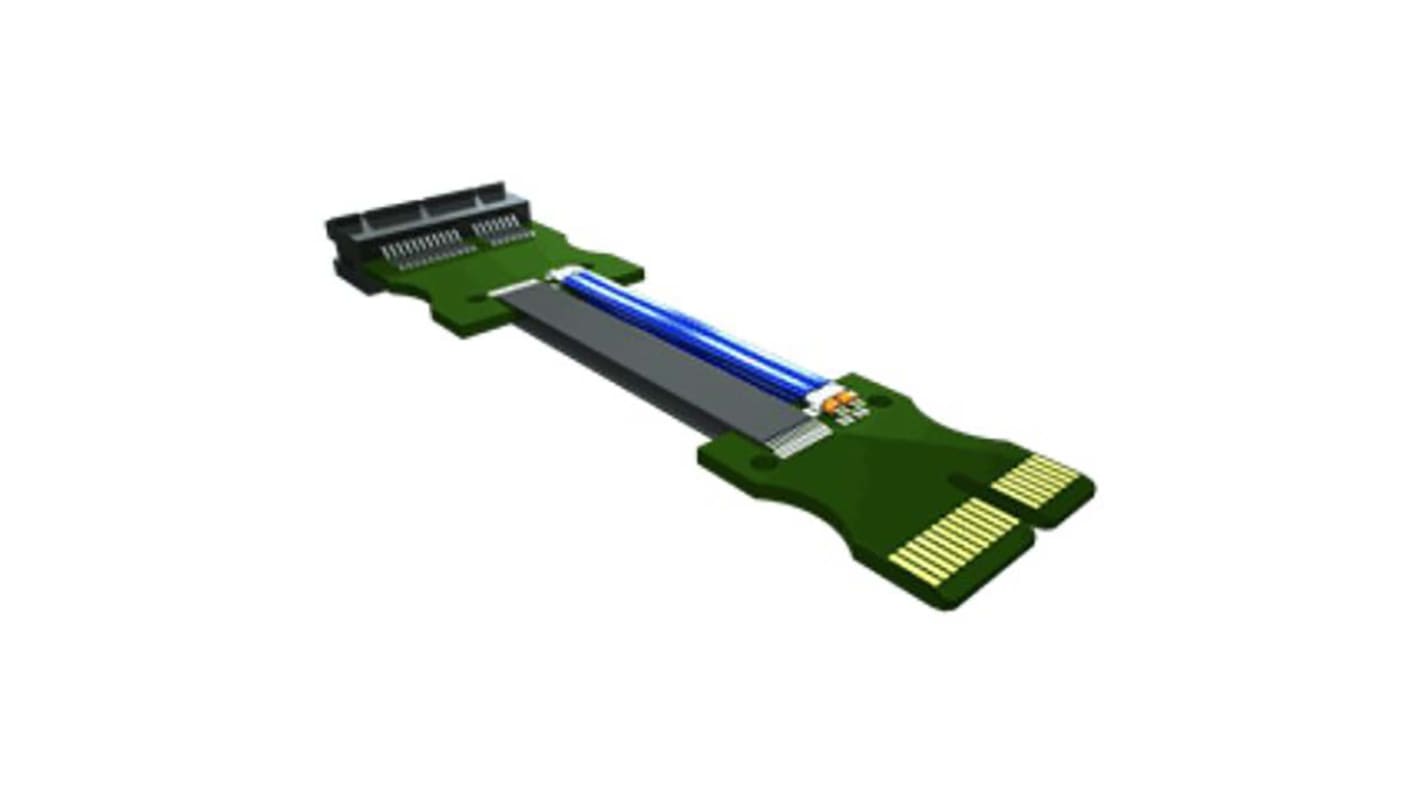

Samtec Jumper Cable Assembly, 3.18mm Bend Radius, Phosphor Bronze Contacts - PCIEC Series - PCIEC-064-0500-EC-EM-P-85
When you need to take control over your circuits, spark up connections using this handy jumper cable assembly from Samtec. It helps you open, close or bypass part of your electric circuit for efficient switching. This straight-bodied unit comes with 64 contacts in total, arranged in four neat rows. As the contacts are made from phosphor bronze, they strike the right balance between strength, corrosion resistance and conductivity. A compact 1mm pitch minimises the space needed for installation.
Features & Benefits
• Broad operating temperature range between -25°C and +105°C is well-suited to demanding industrial environments
• Flexible design has a bend radius of 3.18mm to enable curved installations without cracking
• 500mm wire length gives plenty of room to connect and troubleshoot your circuits
Applications
• Consumer electronics
• Data networking
• IT security systems
What type of end connectors does this jumper cable assembly fit?
This jumper assembly is compatible with Samtec's PCIE series of cables and connectors. One end connects to an edge card, while the other is compatible with either a PCIe edge card or an edge mount connector.
