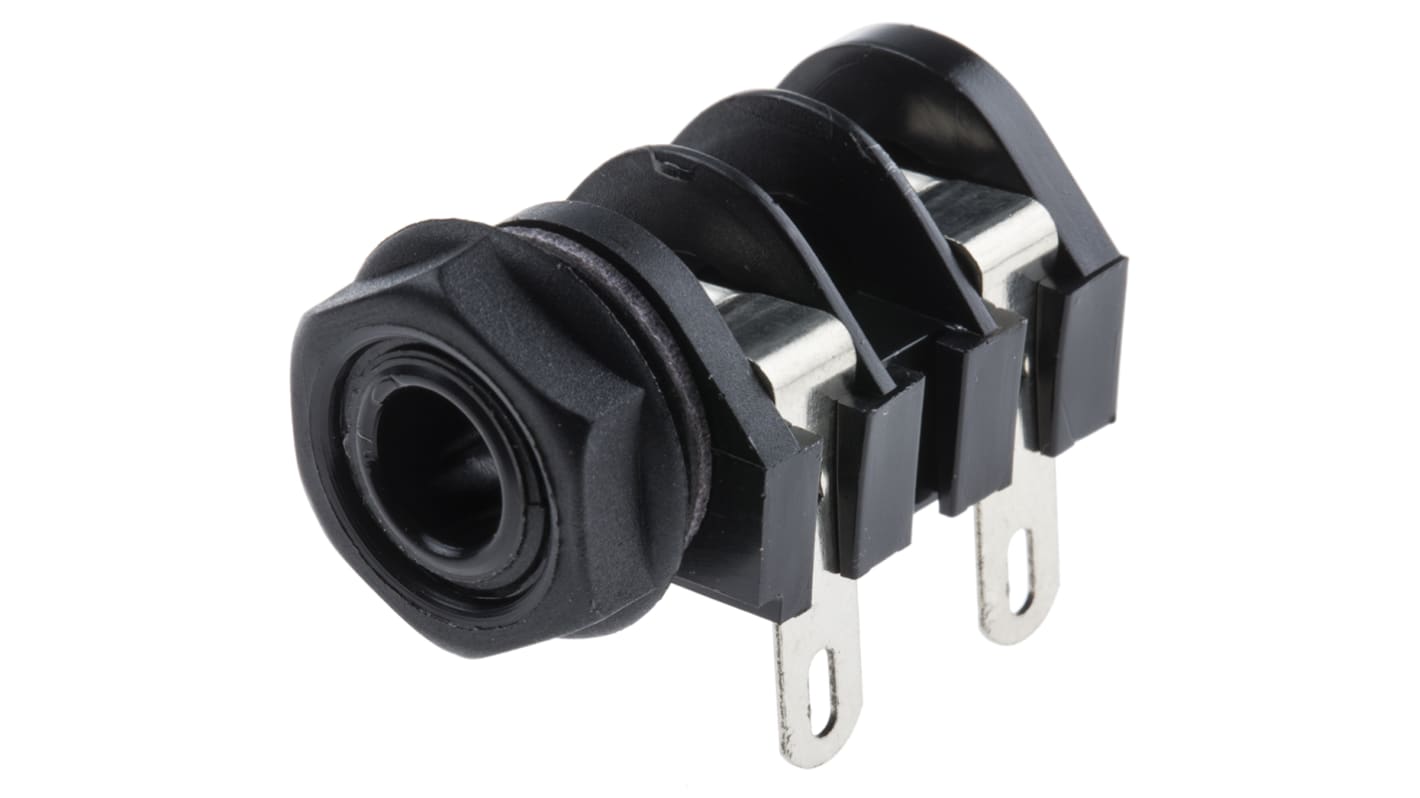

RS PRO Jack Connector 6.35 mm PCB Mount Mono Socket, 3Pole 5A
- RS Stock No.:
- 913-1046
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 5 units)*
£7.30
(exc. VAT)
£8.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 105 unit(s) ready to ship
- Plus 105 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 10 | £1.46 | £7.30 |
| 15 - 45 | £1.39 | £6.95 |
| 50 - 95 | £1.312 | £6.56 |
| 100 + | £1.17 | £5.85 |
*price indicative
- RS Stock No.:
- 913-1046
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Female | |
| Size | 6.35 mm | |
| Mounting Type | PCB Mount | |
| Type | Mono | |
| Body Orientation | Right Angle | |
| Termination Method | Solder | |
| Contact Plating | Gold, Tin | |
| Current Rating | 5A | |
| Housing Material | Nylon | |
| Voltage Rating | 2 kV dc | |
| Colour | Black | |
| Contact Material | Nickel Silver Alloy | |
| No of Poles/ Way | 3 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Female | ||
Size 6.35 mm | ||
Mounting Type PCB Mount | ||
Type Mono | ||
Body Orientation Right Angle | ||
Termination Method Solder | ||
Contact Plating Gold, Tin | ||
Current Rating 5A | ||
Housing Material Nylon | ||
Voltage Rating 2 kV dc | ||
Colour Black | ||
Contact Material Nickel Silver Alloy | ||
No of Poles/ Way 3 | ||
- COO (Country of Origin):
- GB
RS Pro 6.35 mm female jack sockets
A series of RS Pro panel mount jack sockets. Each 6.35 mm female jack socket is JISC 6560 compliant and is available in a three-pole version (stereo). All models are highly reliable and excellent quality.
Features & Benefits
Solder tag connection (rear mount)
Stock No. 913-1033 has a removable washer
Withstand Voltage: 2000V dc minimum
Life: Minimum 10,000+ Operations
