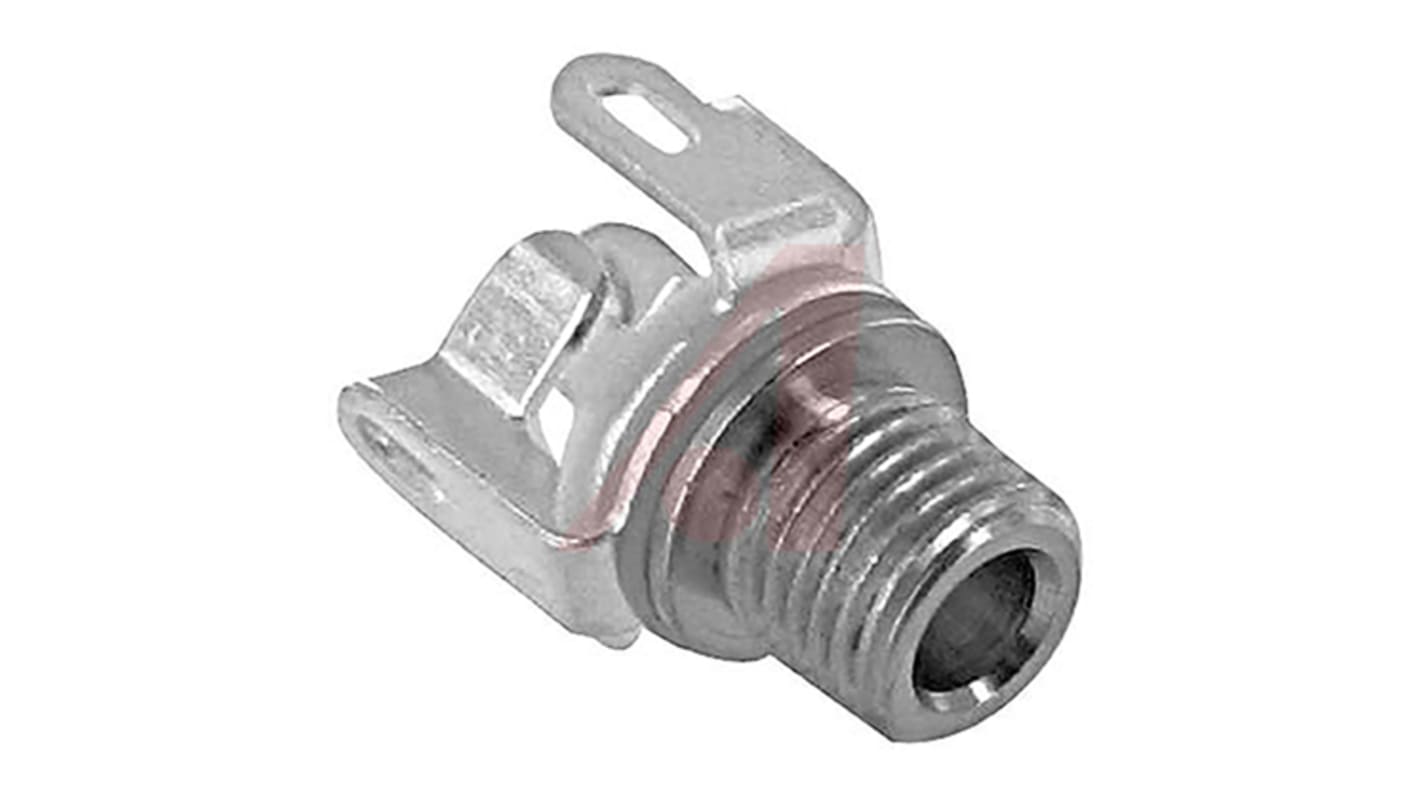

Switchcraft Jack Connector 2.5 mm Chassis Mount, Panel Mount Mono Socket, 2Pole 125A
- RS Stock No.:
- 878-4866
- Mfr. Part No.:
- TR2A
- Brand:
- Switchcraft
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 878-4866
- Mfr. Part No.:
- TR2A
- Brand:
- Switchcraft
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Switchcraft | |
| Gender | Female | |
| Size | 2.5 mm | |
| Mounting Type | Chassis Mount, Panel Mount | |
| Type | Mono | |
| Body Orientation | Straight | |
| Contact Plating | Nickel | |
| Current Rating | 125A | |
| Voltage Rating | 125 V ac | |
| Contact Material | Copper Alloy | |
| No of Poles/ Way | 2 | |
Select all | ||
|---|---|---|
Brand Switchcraft | ||
Gender Female | ||
Size 2.5 mm | ||
Mounting Type Chassis Mount, Panel Mount | ||
Type Mono | ||
Body Orientation Straight | ||
Contact Plating Nickel | ||
Current Rating 125A | ||
Voltage Rating 125 V ac | ||
Contact Material Copper Alloy | ||
No of Poles/ Way 2 | ||
- COO (Country of Origin):
- US
Switchcraft Panel Mount Plugs and Sockets
Brought to you by Switchcraft, a selection of miniature panel mount jack plugs and jack sockets commonly used in headphone applications. A sturdy and robust design, these jacks ensure that your application performs to the highest standard. All models are highly reliable and excellent quality.
The Switchcraft selection of Panel Mount Plugs and Sockets includes:
• 850 Solders readily for optimum electrical connection
• 851 Integral threaded collar to prevent accidental disconnect, mates with the TR2A panel socket
• TR2A Can be wired for open or closed circuit operation
• MDSL2A/MDSL2ARA Insulated box construction
• 850 Solders readily for optimum electrical connection
• 851 Integral threaded collar to prevent accidental disconnect, mates with the TR2A panel socket
• TR2A Can be wired for open or closed circuit operation
• MDSL2A/MDSL2ARA Insulated box construction
