Lumberg Jack Connector 2.5 mm Cable Male 3 Stereo, 500mA Solder
- RS Stock No.:
- 505-1283
- Distrelec Article No.:
- 300-68-490
- Mfr. Part No.:
- KLS 13
- Brand:
- Lumberg
Bulk discount available
Subtotal (1 unit)*
£3.43
(exc. VAT)
£4.12
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 742 unit(s) ready to ship
- Plus 173 unit(s) ready to ship from another location
- Plus 1,600 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £3.43 |
| 25 + | £3.09 |
*price indicative
- RS Stock No.:
- 505-1283
- Distrelec Article No.:
- 300-68-490
- Mfr. Part No.:
- KLS 13
- Brand:
- Lumberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumberg | |
| Product Type | Jack Connector | |
| Size | 2.5 mm | |
| Mount Type | Cable | |
| Current | 500mA | |
| Number of Ways | 3 | |
| Termination Type | Solder | |
| Sub Type | Stereo | |
| Orientation | Straight | |
| Connector Gender | Male | |
| Contact Plating | Nickel | |
| Housing Material | Polyoxymethylene | |
| Voltage | 34V ac/dc | |
| Colour | Black | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Series | KLS 13 | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand Lumberg | ||
Product Type Jack Connector | ||
Size 2.5 mm | ||
Mount Type Cable | ||
Current 500mA | ||
Number of Ways 3 | ||
Termination Type Solder | ||
Sub Type Stereo | ||
Orientation Straight | ||
Connector Gender Male | ||
Contact Plating Nickel | ||
Housing Material Polyoxymethylene | ||
Voltage 34V ac/dc | ||
Colour Black | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Series KLS 13 | ||
Contact Material Brass | ||

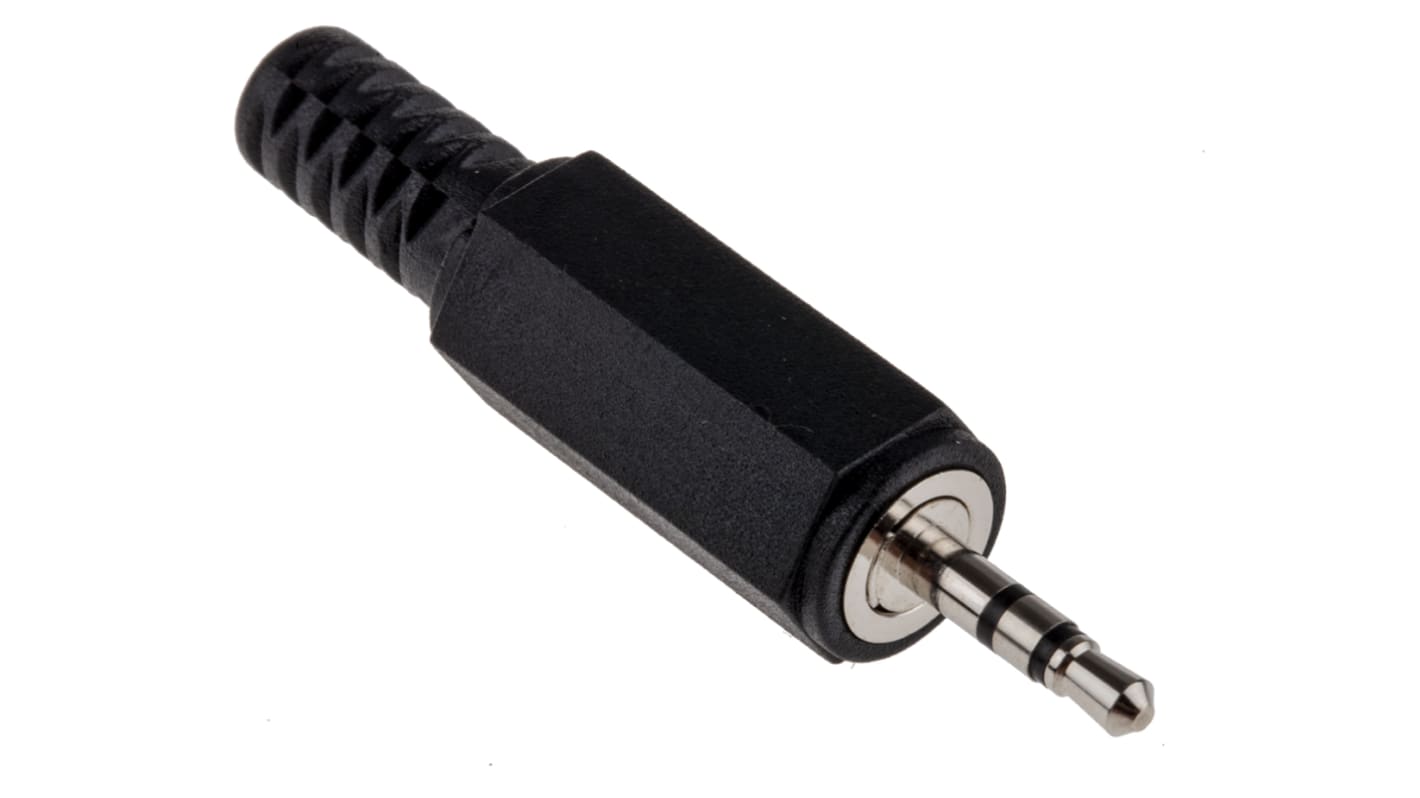

2.5 mm Male Jack Plugs
From Lumberg, this phone audio jack connector is suitable for high quality applications. With an ergonomic hexagonal housing, this cable mounted connector also has an integrated strain relief for bend protection, reducing damage to the connector caused by every day wear and tear.
With a nickel plated contact and insulating body material, the jack plug is cost effective and reliable.
Jack plugs, or phone connectors, are prevalent in domestic and commercial hi-fi applications, but also have uses in computing and commercial public address systems. Where ever a custom audio set up is required, you will likely find a need for jack connectors.
Features and Benefits
• Ergonomic Body
• Nickel Plated
• Rated current of 0.5A
• Rated voltage of 34VAC/VDC
• Temperature range from -20°C to 70°C
