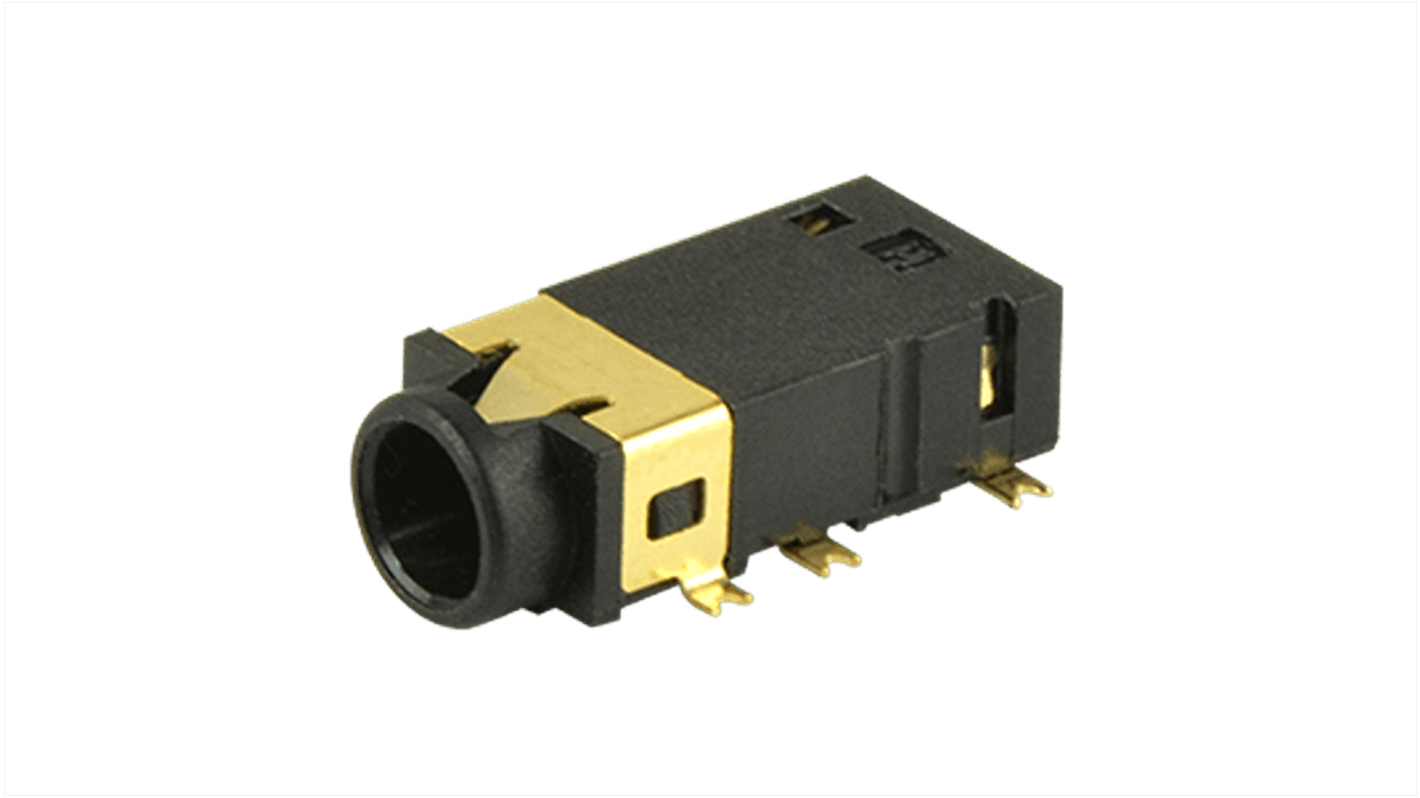

Same Sky Jack Connector 3.5 mm Surface Mount Female Jack Connector, 1A
- RS Stock No.:
- 259-6675
- Mfr. Part No.:
- SJ2-35954D-SMT-TR
- Brand:
- Same Sky
Bulk discount available
Subtotal (1 pack of 5 units)*
£5.81
(exc. VAT)
£6.97
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 1,475 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | £1.162 | £5.81 |
| 10 - 95 | £1.104 | £5.52 |
| 100 - 245 | £1.048 | £5.24 |
| 250 - 495 | £0.998 | £4.99 |
| 500 + | £0.948 | £4.74 |
*price indicative
- RS Stock No.:
- 259-6675
- Mfr. Part No.:
- SJ2-35954D-SMT-TR
- Brand:
- Same Sky
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| Product Type | Jack Connector | |
| Size | 3.5 mm | |
| Mount Type | Surface Mount | |
| Current | 1A | |
| Sub Type | Jack Connector | |
| Orientation | Right Angle | |
| Connector Gender | Female | |
| Contact Plating | Gold Flash over Nickel | |
| Housing Material | Polyamide | |
| Voltage | 500V | |
| Contact Gender | Female | |
| Series | SJ2-3595X-SMT | |
| Contact Material | Copper Alloy | |
| Standards/Approvals | RoHS Compliant, UL94V-0 | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
Product Type Jack Connector | ||
Size 3.5 mm | ||
Mount Type Surface Mount | ||
Current 1A | ||
Sub Type Jack Connector | ||
Orientation Right Angle | ||
Connector Gender Female | ||
Contact Plating Gold Flash over Nickel | ||
Housing Material Polyamide | ||
Voltage 500V | ||
Contact Gender Female | ||
Series SJ2-3595X-SMT | ||
Contact Material Copper Alloy | ||
Standards/Approvals RoHS Compliant, UL94V-0 | ||
- COO (Country of Origin):
- CN
The CUI devices jack connector
comes with a right angle body orientation. The mounting type of the product is surface mount and the size is 3.5 mm. The product has an audio jack.
Insulation resistance at 500 Vdc is 100 MΩ
Flammability rating IS UL94V-0
Insertion withdrawn force is 0.3 kg - 3 kg
