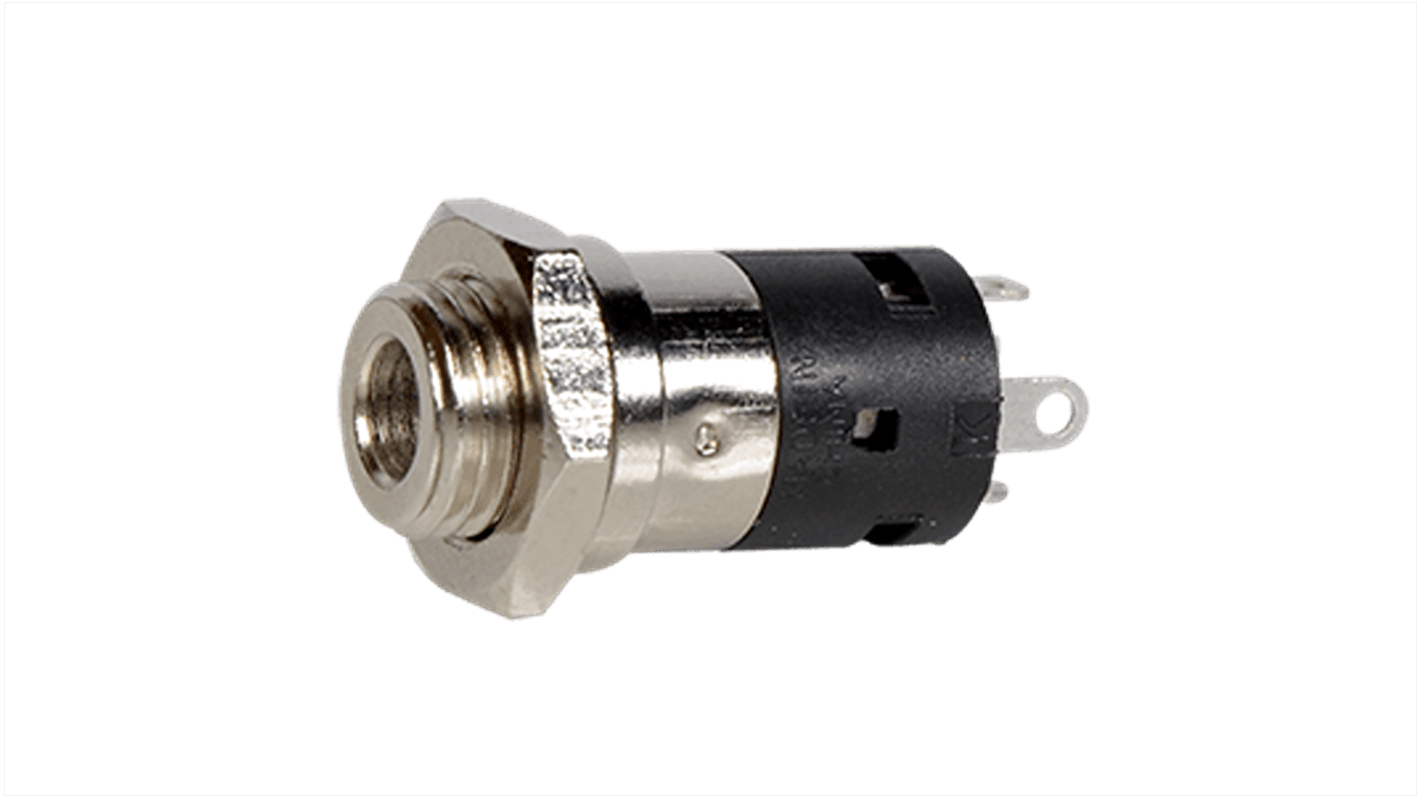

Same Sky Jack Connector 3.5 mm Panel Mount Male Jack Connector, 1A
- RS Stock No.:
- 259-6667P
- Mfr. Part No.:
- SJ1-43502PM
- Brand:
- Same Sky
Subtotal 2 units (supplied in a bag)*
£3.87
(exc. VAT)
£4.644
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 4 unit(s), ready to ship
Units | Per unit |
|---|---|
| 2 + | £1.935 |
*price indicative
- RS Stock No.:
- 259-6667P
- Mfr. Part No.:
- SJ1-43502PM
- Brand:
- Same Sky
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| Product Type | Jack Connector | |
| Size | 3.5 mm | |
| Current | 1A | |
| Mount Type | Panel Mount | |
| Sub Type | Jack Connector | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Contact Plating | Tin | |
| Housing Material | Polyamide 66 | |
| Voltage | 500V | |
| Colour | Black | |
| Contact Gender | Male | |
| Contact Material | Copper Alloy | |
| Standards/Approvals | UL 94 V-0 | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
Product Type Jack Connector | ||
Size 3.5 mm | ||
Current 1A | ||
Mount Type Panel Mount | ||
Sub Type Jack Connector | ||
Connector Gender Male | ||
Orientation Straight | ||
Contact Plating Tin | ||
Housing Material Polyamide 66 | ||
Voltage 500V | ||
Colour Black | ||
Contact Gender Male | ||
Contact Material Copper Alloy | ||
Standards/Approvals UL 94 V-0 | ||
- COO (Country of Origin):
- CN
The CUI devices jack connector
comes with a straight body orientation. The mounting type of the product is panel mount and the size is 3.5 mm. The product has an audio jack.
Insulation resistance at 500 Vdc is 100 MΩ
Flammability rating IS UL94V-0
Insertion withdrawn force is 0.3 kg - 3 kg
