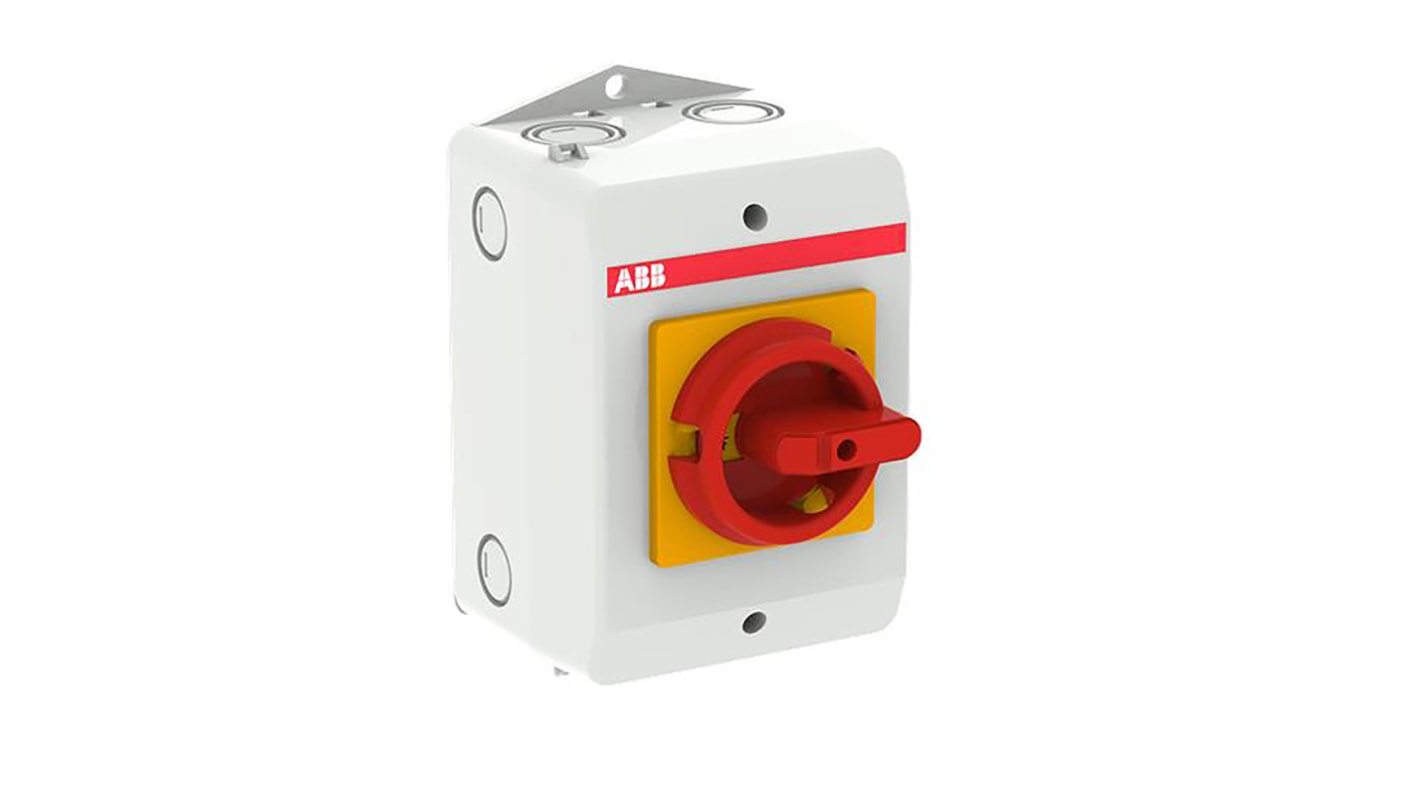

ABB 3P Pole Isolator Switch - 23A Maximum Current, IP65
- RS Stock No.:
- 192-1132
- Mfr. Part No.:
- 1SCA128505R1001
- Brand:
- ABB
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£41.49
(exc. VAT)
£49.79
(inc. VAT)
- RS Stock No.:
- 192-1132
- Mfr. Part No.:
- 1SCA128505R1001
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3P | |
| Maximum Current | 23A | |
| IP Rating | IP65 | |
| Voltage Rating | 750V | |
| Accepts Padlocks | Yes | |
| Handle Colour | Red/Yellow | |
| Auxiliary Contacts Available | Yes | |
| Normal State Configuration | 2NC, 2NO | |
| Length | 115mm | |
| Width | 100mm | |
| Depth | 161mm | |
| Throw Configuration | NO/NC | |
| Terminal Type | Screw | |
Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3P | ||
Maximum Current 23A | ||
IP Rating IP65 | ||
Voltage Rating 750V | ||
Accepts Padlocks Yes | ||
Handle Colour Red/Yellow | ||
Auxiliary Contacts Available Yes | ||
Normal State Configuration 2NC, 2NO | ||
Length 115mm | ||
Width 100mm | ||
Depth 161mm | ||
Throw Configuration NO/NC | ||
Terminal Type Screw | ||
The enclosure in the OTU series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets, and hence built for outdoor and indoor use. The cable entries are of knock out type, for 2 parallell cables, both from top and bottom. The handle is padlockable and made for three padlocks. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
