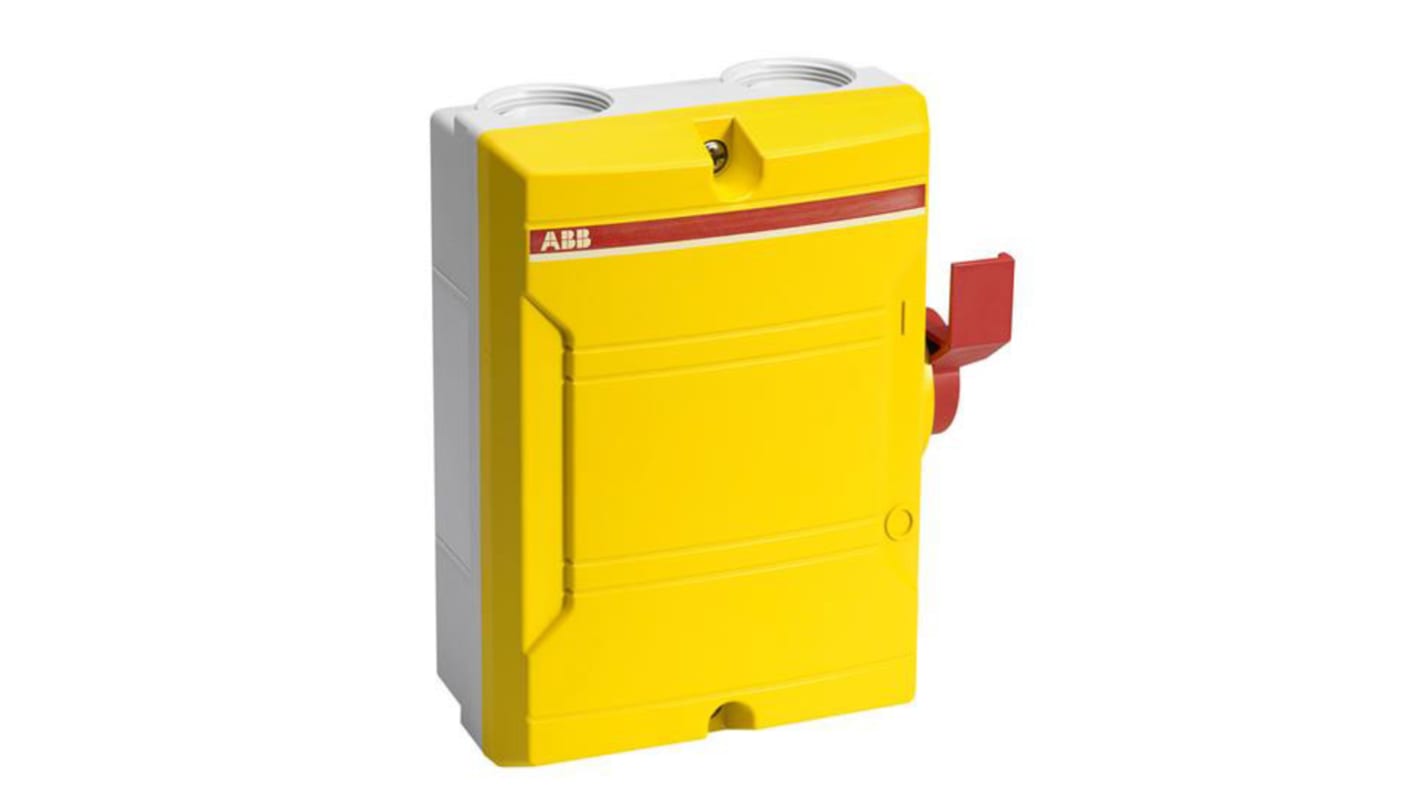

ABB 4P Pole Isolator Switch - 25A Maximum Current, 7.5kW Power Rating, IP54, IP65
- RS Stock No.:
- 192-0858
- Mfr. Part No.:
- 2CMA142444R1000
- Brand:
- ABB
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 192-0858
- Mfr. Part No.:
- 2CMA142444R1000
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 4P | |
| Maximum Current | 25A | |
| IP Rating | IP54, IP65 | |
| Power Rating | 7.5kW | |
| Voltage Rating | 690V | |
| Electrical Phase | 4 | |
| Handle Colour | Red | |
| Accepts Padlocks | Yes | |
| Auxiliary Contacts Available | Yes | |
| Model Number | BW425YTPN | |
| Normal State Configuration | NO | |
| Length | 111mm | |
| Width | 60mm | |
| Depth | 130mm | |
Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 4P | ||
Maximum Current 25A | ||
IP Rating IP54, IP65 | ||
Power Rating 7.5kW | ||
Voltage Rating 690V | ||
Electrical Phase 4 | ||
Handle Colour Red | ||
Accepts Padlocks Yes | ||
Auxiliary Contacts Available Yes | ||
Model Number BW425YTPN | ||
Normal State Configuration NO | ||
Length 111mm | ||
Width 60mm | ||
Depth 130mm | ||
- COO (Country of Origin):
- CZ
The enclosure of the ABB's side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets, and hence built for outdoor and indoor use. The enclosure is available in different colours, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallel cables, both from top and bottom. Membrane grommets are included. The handle is pad lockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
