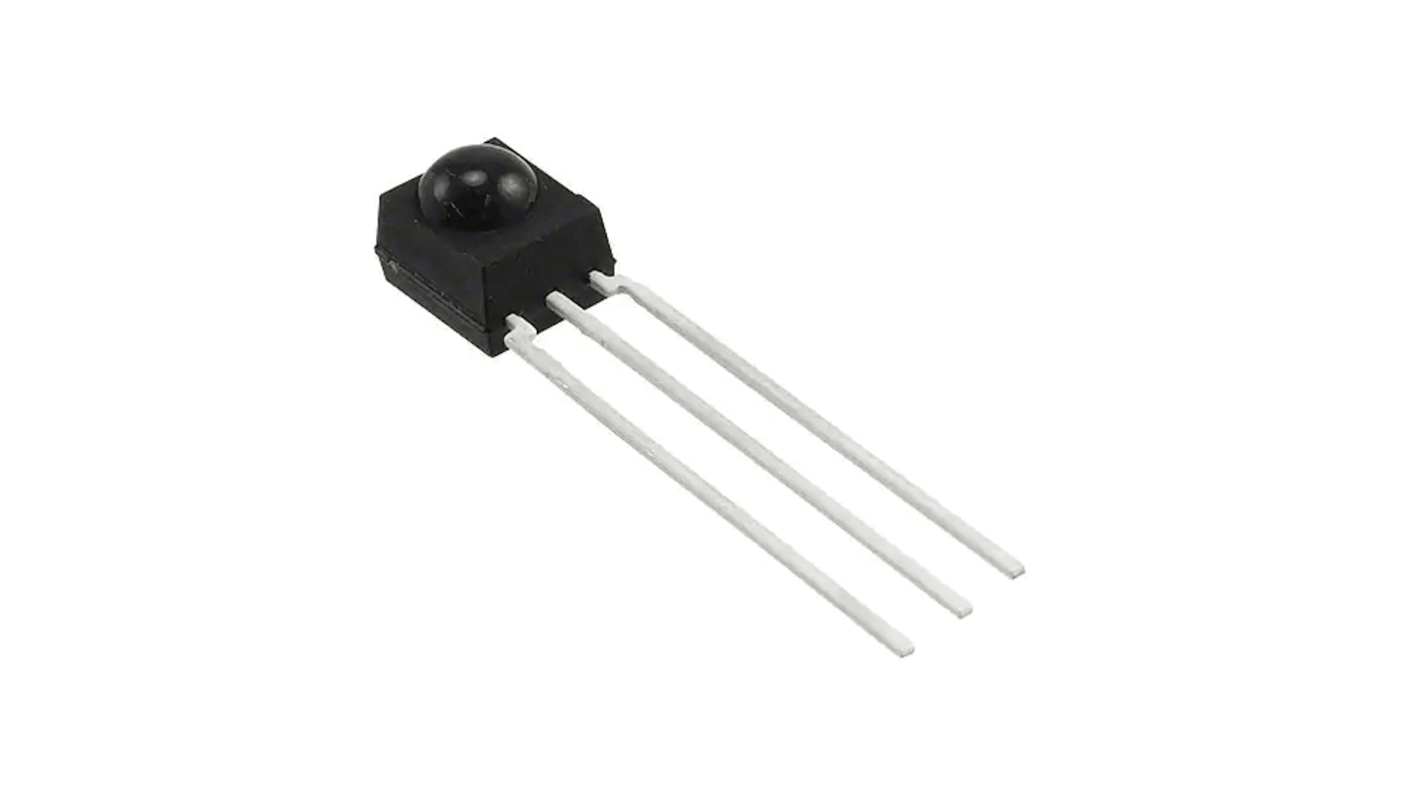

Vishay, 56 kHz IR Receiver 45 °, 45 m Range 2.5 V 5.5V, Through Hole 6.95 mm Mold 5.6 mm 3-Pin 6mm
- RS Stock No.:
- 180-8107
- Mfr. Part No.:
- TSOP34856
- Brand:
- Vishay
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£6.01
(exc. VAT)
£7.21
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 2,160 unit(s) shipping from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.601 | £6.01 |
| 100 - 240 | £0.571 | £5.71 |
| 250 - 490 | £0.553 | £5.53 |
| 500 - 990 | £0.528 | £5.28 |
| 1000 + | £0.48 | £4.80 |
*price indicative
- RS Stock No.:
- 180-8107
- Mfr. Part No.:
- TSOP34856
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | IR Receiver | |
| Carrier Frequency | 56kHz | |
| Maximum Transmission Distance | 45m | |
| Angle of Half Transmission Distance | 45 ° | |
| Packaging | 2160 pieces in tubes | |
| Orientation | Top View | |
| Output Current | 5mA | |
| Number of Pins | 3 | |
| Mount Type | Through Hole | |
| Minimum Operating Temperature | -25°C | |
| Package Type | Mold | |
| Maximum Operating Temperature | 85°C | |
| Width | 6mm | |
| Maximum Supply Voltage | 5.5V | |
| Standards/Approvals | DIN | |
| Height | 6.95mm | |
| Length | 5.6mm | |
| Minimum Supply Voltage | 2.5V | |
| Automotive Standard | No | |
| Supply Current | 0.45mA | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type IR Receiver | ||
Carrier Frequency 56kHz | ||
Maximum Transmission Distance 45m | ||
Angle of Half Transmission Distance 45 ° | ||
Packaging 2160 pieces in tubes | ||
Orientation Top View | ||
Output Current 5mA | ||
Number of Pins 3 | ||
Mount Type Through Hole | ||
Minimum Operating Temperature -25°C | ||
Package Type Mold | ||
Maximum Operating Temperature 85°C | ||
Width 6mm | ||
Maximum Supply Voltage 5.5V | ||
Standards/Approvals DIN | ||
Height 6.95mm | ||
Length 5.6mm | ||
Minimum Supply Voltage 2.5V | ||
Automotive Standard No | ||
Supply Current 0.45mA | ||
- COO (Country of Origin):
- PH
The Vishay TSOP341 series are miniaturized receiver module for infrared remote control systems. A PIN diode and a preamplifier are assembled on lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding and the device are optimized to suppress almost all spurious pulses from energy saving lamps like CFLs.
Very low supply current
Photo detector and preamplifier in one package
Internal filter for PCM frequency
