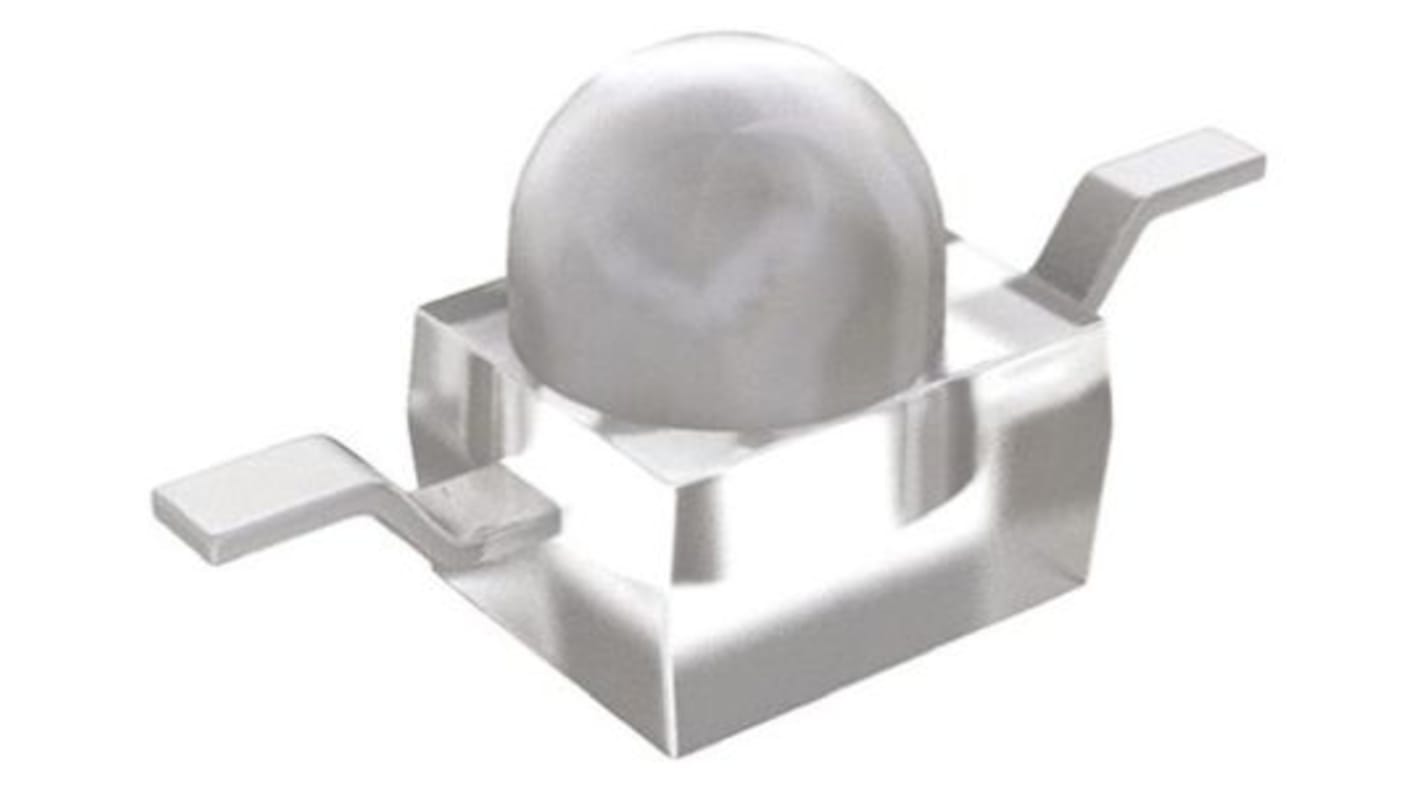

TSML1000 Vishay, 940nm Infrared Emitting Diode, Subminiature SMD package

View all IR LEDs
Discontinued
Packaging Options:

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
SFH 4053 ams OSRAM, CHIP LED 860nm IR LED, 1005 (0402) SMD package
RS Stock No.
913-3538

Each (On a Reel of 3000)

£0.142

(exc. VAT)

£0.17

(inc. VAT)

RS Stock No.:
818-7679
Mfr. Part No.:
TSML1000
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Peak Wavelength

940nm

Package Type

Subminiature

Radiant Flux

35mW

Radiant Intensity

11mW/sr

Mounting Type

Surface Mount

Angle of Half Intensity

±12°

Number of LEDs

1

Number of Pins

2

Dimensions

2.5 x 2 x 2.7mm

Lens Shape

Dome

LED Material

GaAlAs

Vishay TSML1000/20/30/40 Series IR Emitting Diodes


The TSML10x0 family, from Vishay Semiconductor, are high power Infrared (IR) emitting diodes. With a wavelength of 940nm, the TSML10x0 IR LEDs offer a high radiant power. They are in a surface mount (SMT) package with a clear, untinted plastic package with dome lens. Suitable applications for the TSML10x0 IR emitters include; remote control, punched tape readers, encoders and photointerrupters.
TSML1000 - Reverse gull-wing
TSML1020 - Gull-wing
TSML1030 - Yoke leads
TSML1040 - Axial leads

Features of the TSML10x0 IR LEDs:
Dimensions: 2.5 x 2 x 2.7 mm
Peak wavelength: 940 nm
High radiant power and intensity
Beam angle: 24°
Low forward voltage
