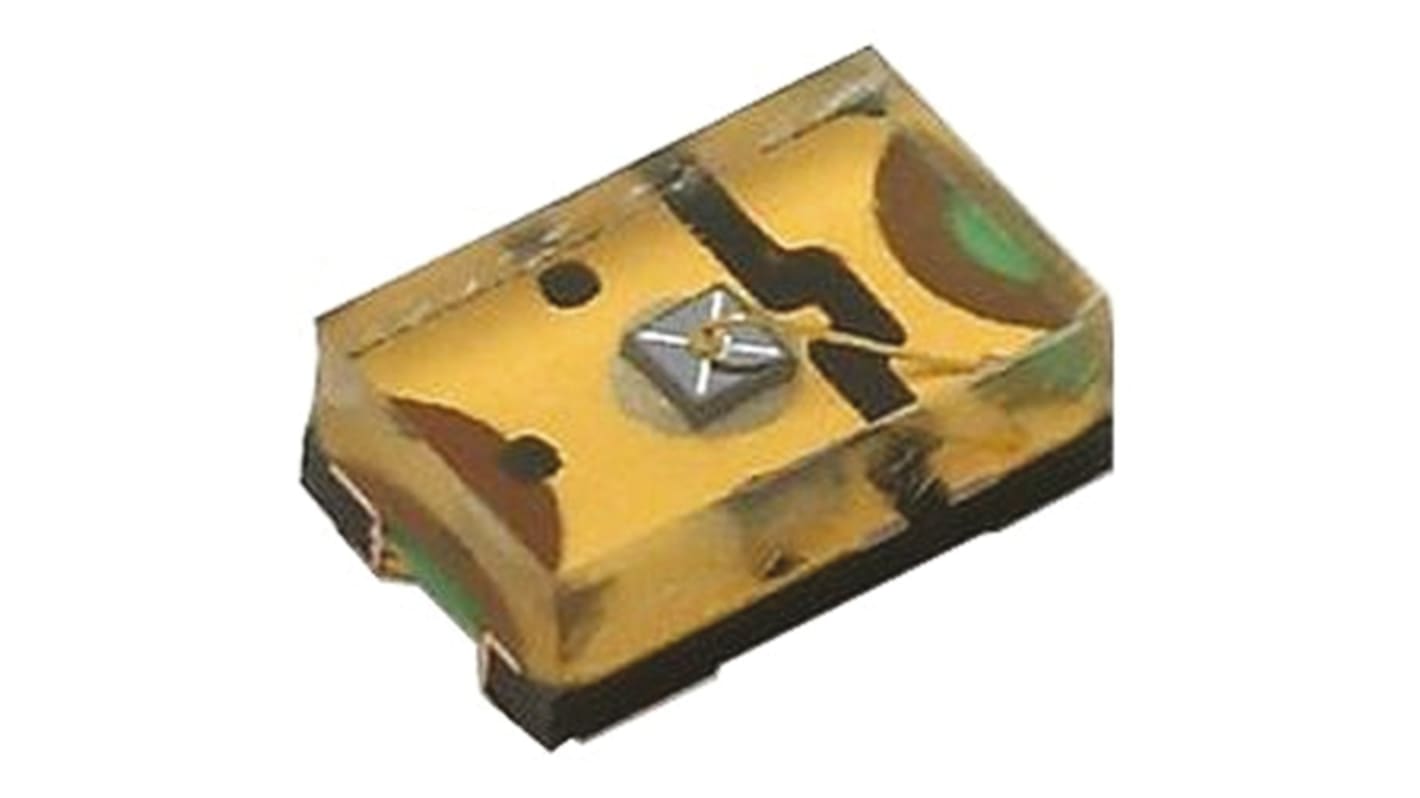

VSMY1850 Vishay, 870nm Infrared Emitting Diode, 2012 (0805) SMD package
- RS Stock No.:
- 813-3701
- Mfr. Part No.:
- VSMY1850
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Reel of 3000)
£0.142
(exc. VAT)
£0.17
(inc. VAT)
- RS Stock No.:
- 813-3701
- Mfr. Part No.:
- VSMY1850
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Peak Wavelength | 870nm | |
| Package Type | 2012 (0805) | |
| Radiant Flux | 50mW | |
| Radiant Intensity | 85mW/sr | |
| Mounting Type | Surface Mount | |
| Angle of Half Intensity | ±60° | |
| Number of LEDs | 1 | |
| Number of Pins | 2 | |
| Dimensions | 2 x 1.25 x 0.85mm | |
| Lens Shape | Rectangle | |
| LED Material | GaAlAs | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Peak Wavelength 870nm | ||
Package Type 2012 (0805) | ||
Radiant Flux 50mW | ||
Radiant Intensity 85mW/sr | ||
Mounting Type Surface Mount | ||
Angle of Half Intensity ±60° | ||
Number of LEDs 1 | ||
Number of Pins 2 | ||
Dimensions 2 x 1.25 x 0.85mm | ||
Lens Shape Rectangle | ||
LED Material GaAlAs | ||
- COO (Country of Origin):
- MY
Vishay VSMY1850 Series IR Emitting Diodes
The VSMY1850 series, from Vishay Semiconductors, are high speed Infrared (IR) emitting diodes. They are in surface mount (SMT) packages with a standard 0805 package. The VSMY1850 packages have a clear, untinted flat top lens. Suitable applications for the VSMY1850 IREDs include; IrDA compatible data transmission, miniature light barriers, photointerrupters, optical switches, emitter sources for proximity sensors, touch panels, IR flash and 3D TV.
Features of the VSMY1850 IR LEDs:
0805 package
Dimensions: 2 x 1.25 x 0.85
Peak wavelength: 850nm
High reliability
High radiant power
Beam angle: 120°
0805 package
Dimensions: 2 x 1.25 x 0.85
Peak wavelength: 850nm
High reliability
High radiant power
Beam angle: 120°
SurfLight™ Technology
SurfLight™ series, from Vishay Semiconductors, consists of high power Infrared (IR) emitters. Their SurfLight™ technology enables the majority of the light and power to be emitted directly through the top of the chip. Standard IR emitters send their light in all directions.
SurfLight™ technology therefore offers a higher intensity output of light. A higher intensity can reduce the number of emitters required for a design. This series also offers high speed with a high pulse current operation.
The reliable SurfLight™ IR LEDs are ideal for applications such as IR data transmission or communication, 3D TV glasses synchronisation, automotive, industrial and IR illumination for CCTV cameras.
SurfLight™ technology therefore offers a higher intensity output of light. A higher intensity can reduce the number of emitters required for a design. This series also offers high speed with a high pulse current operation.
The reliable SurfLight™ IR LEDs are ideal for applications such as IR data transmission or communication, 3D TV glasses synchronisation, automotive, industrial and IR illumination for CCTV cameras.
Infrared (IR) Light Emitters, Vishay
