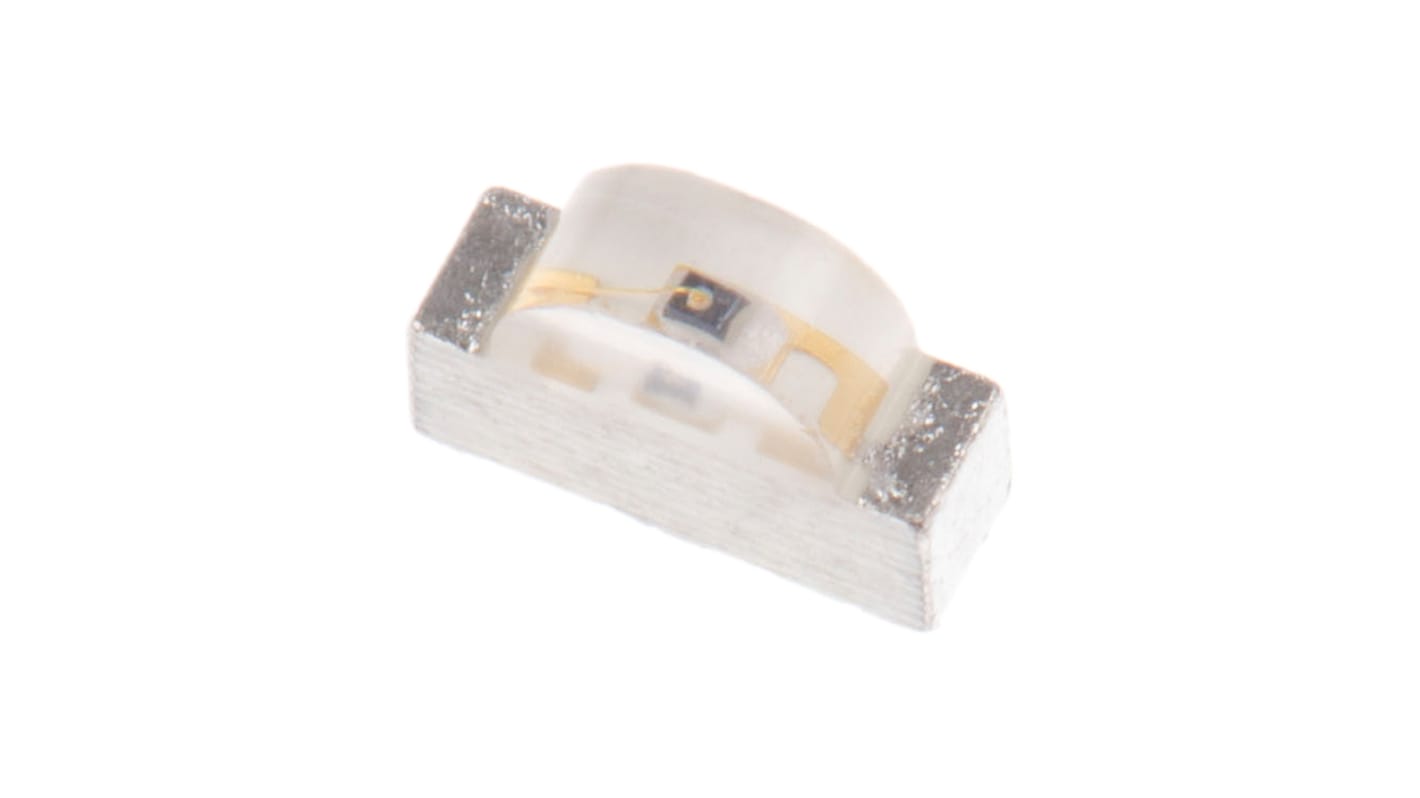

VSMG10850 Vishay, 850nm Infrared Emitting Diode, Side Looker SMD package
- RS Stock No.:
- 813-3690
- Mfr. Part No.:
- VSMG10850
- Brand:
- Vishay
Discontinued
- RS Stock No.:
- 813-3690
- Mfr. Part No.:
- VSMG10850
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Peak Wavelength | 850nm | |
| Package Type | Side Looker | |
| Radiant Flux | 40mW | |
| Radiant Intensity | 24mW/sr | |
| Mounting Type | Surface Mount | |
| Angle of Half Intensity | ±77.5° | |
| Number of LEDs | 1 | |
| Number of Pins | 2 | |
| Dimensions | 3 x 2 x 1mm | |
| Lens Shape | Dome | |
| LED Material | GaAlAs | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Peak Wavelength 850nm | ||
Package Type Side Looker | ||
Radiant Flux 40mW | ||
Radiant Intensity 24mW/sr | ||
Mounting Type Surface Mount | ||
Angle of Half Intensity ±77.5° | ||
Number of LEDs 1 | ||
Number of Pins 2 | ||
Dimensions 3 x 2 x 1mm | ||
Lens Shape Dome | ||
LED Material GaAlAs | ||
- COO (Country of Origin):
- CN
Vishay VSMG10850 Series IR Emitting Diodes
The VSMG10850 series, from Vishay Semiconductors, are Infrared (IR) emitting diodes. These IR LEDs are surface mount (SMT) side looking packages which use double hetero (DH) technology. The VSMG10850 IREDs have a clear untinted plastic package.
Ideal applications for the VSMG10850 IR LEDs include; IR touch panels, transmissive or reflective sensors and emitter applications where space is limited.
Ideal applications for the VSMG10850 IR LEDs include; IR touch panels, transmissive or reflective sensors and emitter applications where space is limited.
Features of the VSMG10850 IR LEDs:
Side looking package
Dimensions: 3 x 2 x 1 mm
Peak wavelength: 850nm
High reliability
High radiant power and intensity
Beam angle: 150°
Low forward voltage
Side looking package
Dimensions: 3 x 2 x 1 mm
Peak wavelength: 850nm
High reliability
High radiant power and intensity
Beam angle: 150°
Low forward voltage
