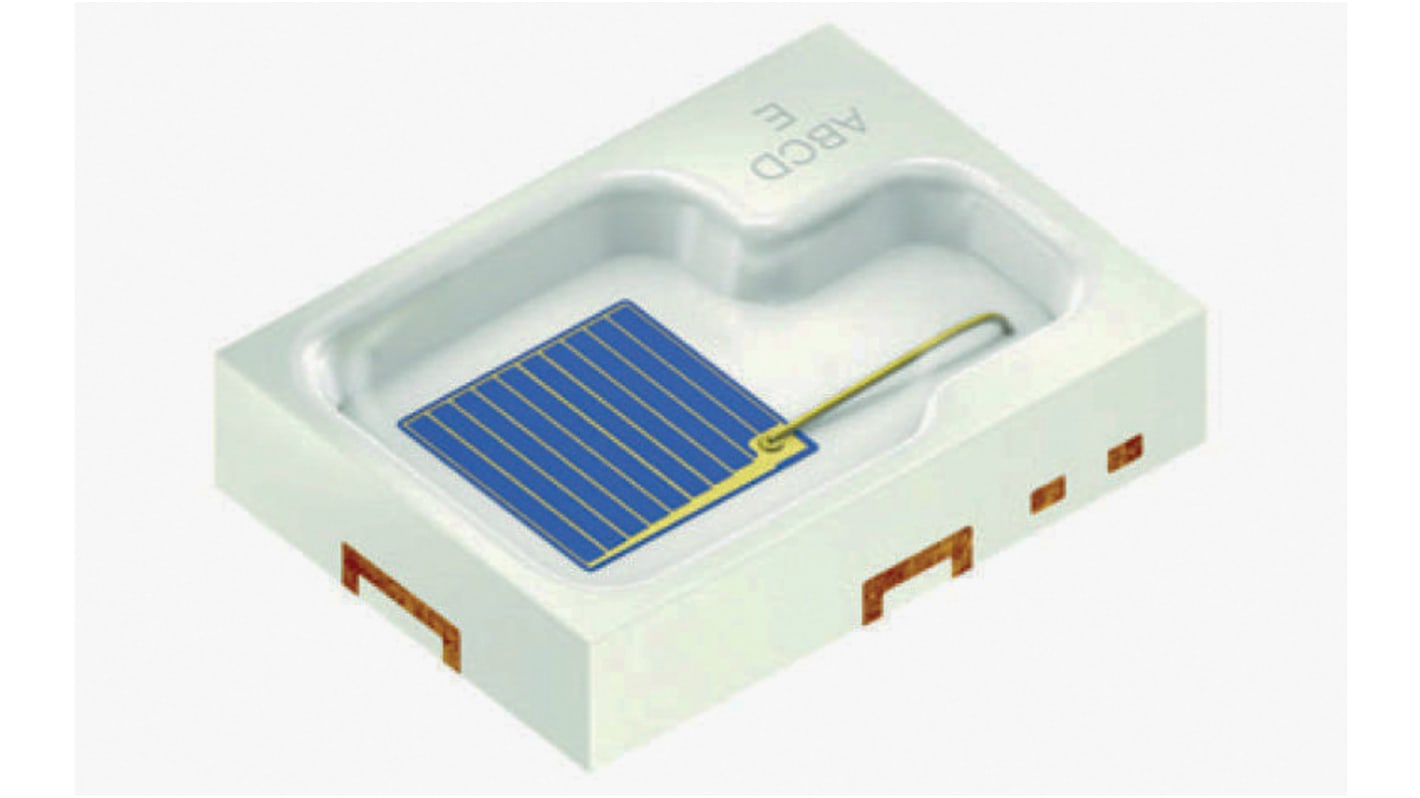

SFH 4775S ams OSRAM, SYNIOS 940nm IR LED, P2720 SMD package
- RS Stock No.:
- 172-0646
- Mfr. Part No.:
- SFH 4775S
- Brand:
- ams OSRAM
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 172-0646
- Mfr. Part No.:
- SFH 4775S
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Peak Wavelength | 940nm | |
| Package Type | P2720 | |
| Radiant Flux | 1150mW | |
| Radiant Intensity | 545mW/sr | |
| Mounting Type | Surface Mount | |
| Angle of Half Intensity | ±60° | |
| Number of LEDs | 1 | |
| Number of Pins | 2 | |
| Dimensions | 2.75 x 2 x 0.6mm | |
| Lens Shape | Rectangle | |
| Series | SYNIOS | |
| Maximum Supply Voltage | 4.7V | |
Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Peak Wavelength 940nm | ||
Package Type P2720 | ||
Radiant Flux 1150mW | ||
Radiant Intensity 545mW/sr | ||
Mounting Type Surface Mount | ||
Angle of Half Intensity ±60° | ||
Number of LEDs 1 | ||
Number of Pins 2 | ||
Dimensions 2.75 x 2 x 0.6mm | ||
Lens Shape Rectangle | ||
Series SYNIOS | ||
Maximum Supply Voltage 4.7V | ||
- COO (Country of Origin):
- DE
IR lightsource with high efficiency
Double Stack emitter
Low thermal resistance (Max. 9 K/W)
Centroid wavelength 940 nm
Superior Corrosion Robustness
Infrared Illumination for cameras
Eye tracking systems
Not released for automotive applications
Double Stack emitter
Low thermal resistance (Max. 9 K/W)
Centroid wavelength 940 nm
Superior Corrosion Robustness
Infrared Illumination for cameras
Eye tracking systems
Not released for automotive applications
