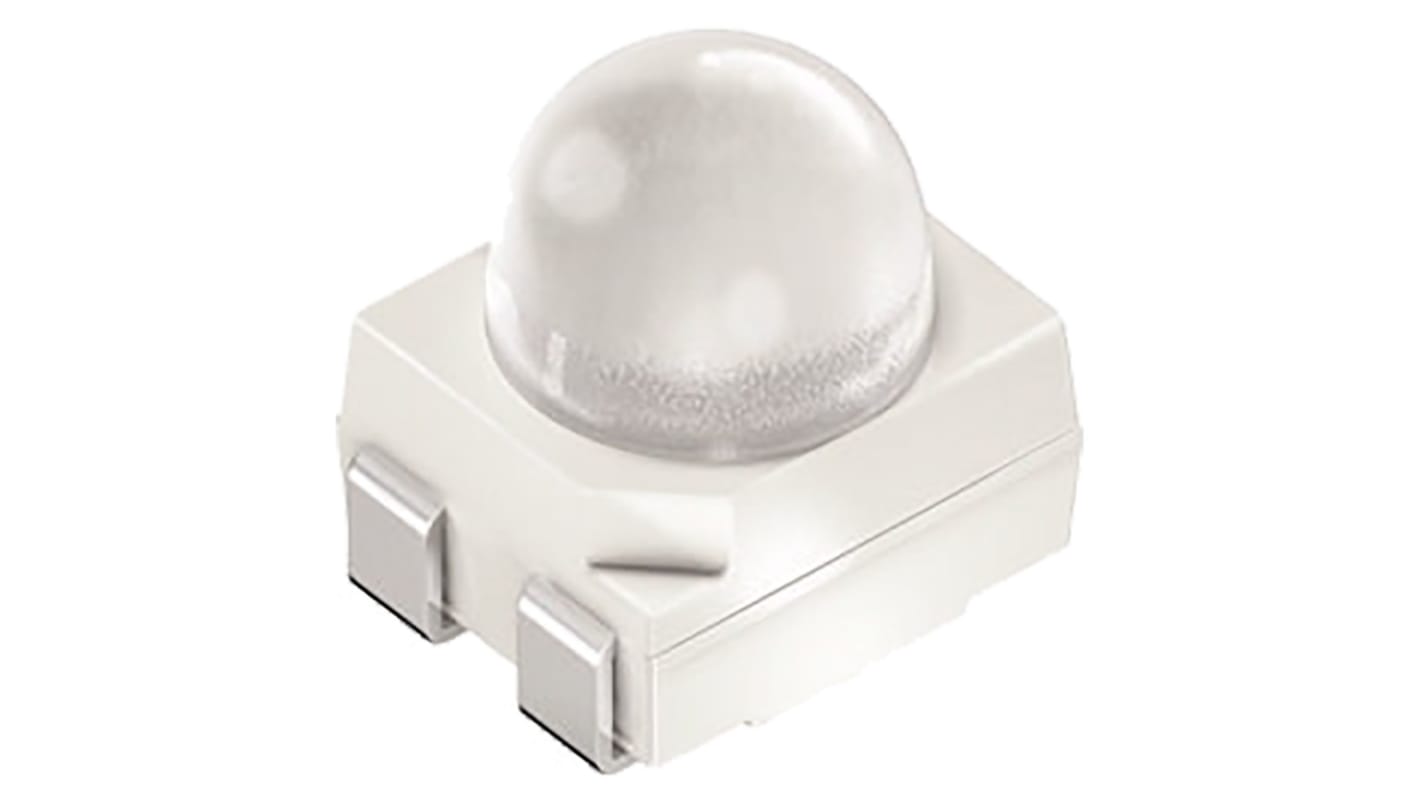

SFH 4248-VAW ams OSRAM, Power TOPLED 950nm IR LED, PLCC 4 SMD package
RS Stock No.:
168-5198
Mfr. Part No.:
SFH 4248-VAW
Brand:
ams OSRAM
View all IR LEDs
Discontinued product
RS Stock No.:
168-5198
Mfr. Part No.:
SFH 4248-VAW
Brand:
ams OSRAM
Technical Reference
Legislation and Compliance
Product Details
Specifications
Datasheet
RoHS Certificate of Compliance
Statement of conformity
COO (Country of Origin):
MY
OSRAM SIDELED Series IR LEDs
The SIDELED package IR series of LEDs, from Osram Opto Semiconductors, are SMT side-looking infrared emitters. These compact IR LEDs are ideal for applications including: Infrared illumination for cameras, IR data transmission and optical sensors.
Viewing angle: ±60°
PLCC2 sidelooker package
Infrared (IR) Light Emitters, OSRAM Opto Semiconductors
Attribute
Value
Peak Wavelength
950nm
Package Type
PLCC 4
Radiant Flux
65mW
Radiant Intensity
63 → 200mW/sr
Mounting Type
Surface Mount
Angle of Half Intensity
±15 °
Number of LEDs
1
Number of Pins
4
Dimensions
3 x 3.4 x 3.8mm
Lens Shape
Round
Series
Power TOPLED
