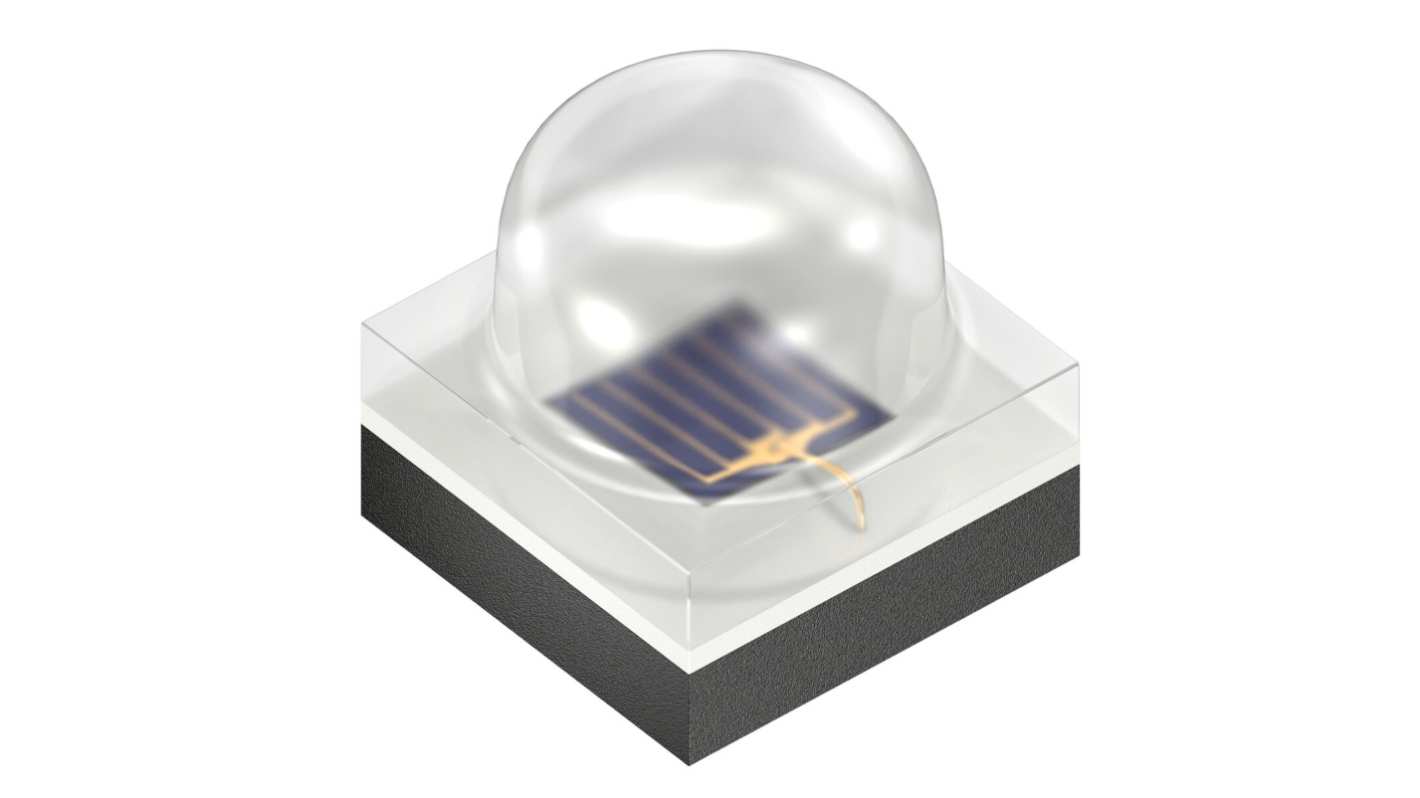

SFH 4171B-CB2DB1 ams OSRAM SFH 4171B 850 nm IR LED Surface package
- RS Stock No.:
- 494-223
- Mfr. Part No.:
- SFH 4171B-CB2DB1
- Brand:
- ams OSRAM
Subtotal (1 tape of 5 units)*
£6.60
(exc. VAT)
£7.90
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 1,950 unit(s), ready to ship
Units | Per unit | Per Tape* |
|---|---|---|
| 5 + | £1.32 | £6.60 |
*price indicative
- RS Stock No.:
- 494-223
- Mfr. Part No.:
- SFH 4171B-CB2DB1
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Product Type | IR LED | |
| Peak Wavelength | 850nm | |
| Radiant Flux | 940mW | |
| Radiant Intensity | 480mW/sr | |
| Packaging | Tape & Reel | |
| Mount Type | Surface | |
| Angle of Half Intensity | 35° | |
| Series | SFH 4171B | |
| Standards/Approvals | ANSI/ESDA/JEDEC JS-001 (HBM), JEDEC J-STD-020E, IEC 62471:2006 | |
| Maximum Supply Voltage | 5V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Product Type IR LED | ||
Peak Wavelength 850nm | ||
Radiant Flux 940mW | ||
Radiant Intensity 480mW/sr | ||
Packaging Tape & Reel | ||
Mount Type Surface | ||
Angle of Half Intensity 35° | ||
Series SFH 4171B | ||
Standards/Approvals ANSI/ESDA/JEDEC JS-001 (HBM), JEDEC J-STD-020E, IEC 62471:2006 | ||
Maximum Supply Voltage 5V | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The ams OSRAM Lens, featuring Thinfilm IR 6 Chip technology, enhances IR-based applications such as biometric authentication and security cameras by providing brighter IR illumination, improved image quality, and extended battery run-time. It offers an excellent power-to-size ratio with various half angles for adaptability to different application needs. Recognized as a top performer, it stands out for its superior package size-to-performance ratio, delivering increased brightness and efficiency.
Clear silicone package
ESD protection 2 kV according to ANSI/ESDA/JEDEC JS-001 HBM
High-efficiency IR light source
Centroid wavelength 850 nm
