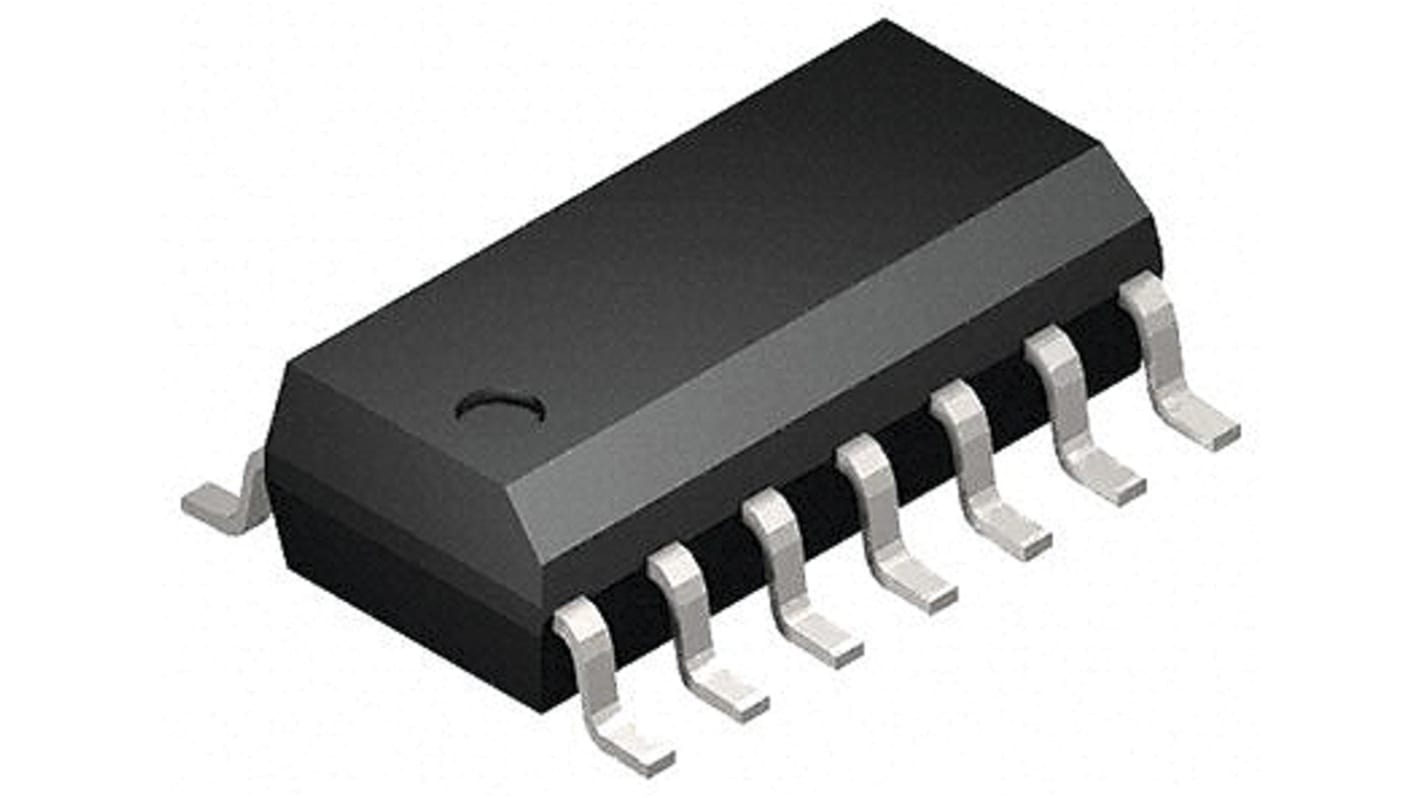

Toshiba 74HC05D Hex CMOS Inverter, 14-Pin SOIC
- RS Stock No.:
- 171-3475
- Mfr. Part No.:
- 74HC05D
- Brand:
- Toshiba
Subtotal (1 pack of 50 units)*
£7.80
(exc. VAT)
£9.35
(inc. VAT)
FREE delivery for orders over £50.00
- Final 1,400 unit(s), ready to ship
Units | Per unit | Per Pack* |
---|---|---|
50 - 100 | £0.156 | £7.80 |
150 - 450 | £0.138 | £6.90 |
500 - 950 | £0.125 | £6.25 |
1000 + | £0.113 | £5.65 |
*price indicative
- RS Stock No.:
- 171-3475
- Mfr. Part No.:
- 74HC05D
- Brand:
- Toshiba
Select all | Attribute | Value |
---|---|---|
Brand | Toshiba | |
Logic Function | Inverter | |
Input Type | CMOS | |
Output Type | Open Drain | |
Number of Elements per Chip | 6 | |
Maximum Propagation Delay Time @ Maximum CL | 135 ns @ 50 pF | |
Maximum High Level Output Current | -5.2mA | |
Maximum Low Level Output Current | 5.2mA | |
Mounting Type | Surface Mount | |
Package Type | SOIC | |
Pin Count | 14 | |
Logic Family | 74HC | |
Dimensions | 8.95 x 3.9 x 1.38mm | |
Height | 1.38mm | |
Maximum Operating Supply Voltage | 6 V | |
Propagation Delay Test Condition | 50pF | |
Maximum Operating Temperature | +125 °C | |
Minimum Operating Supply Voltage | 2 V | |
Length | 8.95mm | |
Minimum Operating Temperature | -40 °C | |
Width | 3.9mm | |
Select all | ||
---|---|---|
Brand Toshiba | ||
Logic Function Inverter | ||
Input Type CMOS | ||
Output Type Open Drain | ||
Number of Elements per Chip 6 | ||
Maximum Propagation Delay Time @ Maximum CL 135 ns @ 50 pF | ||
Maximum High Level Output Current -5.2mA | ||
Maximum Low Level Output Current 5.2mA | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 14 | ||
Logic Family 74HC | ||
Dimensions 8.95 x 3.9 x 1.38mm | ||
Height 1.38mm | ||
Maximum Operating Supply Voltage 6 V | ||
Propagation Delay Test Condition 50pF | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Supply Voltage 2 V | ||
Length 8.95mm | ||
Minimum Operating Temperature -40 °C | ||
Width 3.9mm | ||
It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power
dissipation.
Pin configuration and function are the same as the 74HC04D, but the 74HC05D has high performance MOSN-
channel transistor (open-drain) outputs.
This device can, therefore, with a suitable pull-up resistors, be used in wired-AND,LED drive and other
applications.
Allinputsareequipped withprotectioncircuitsagainststatic dischargeortransientexcessvoltage
Low power dissipation: ICC = 1.0 μA (max) at Ta = 25
Wide operating voltage range: VCC(opr) = 2.0 to 6.0 V
Open drain structure
