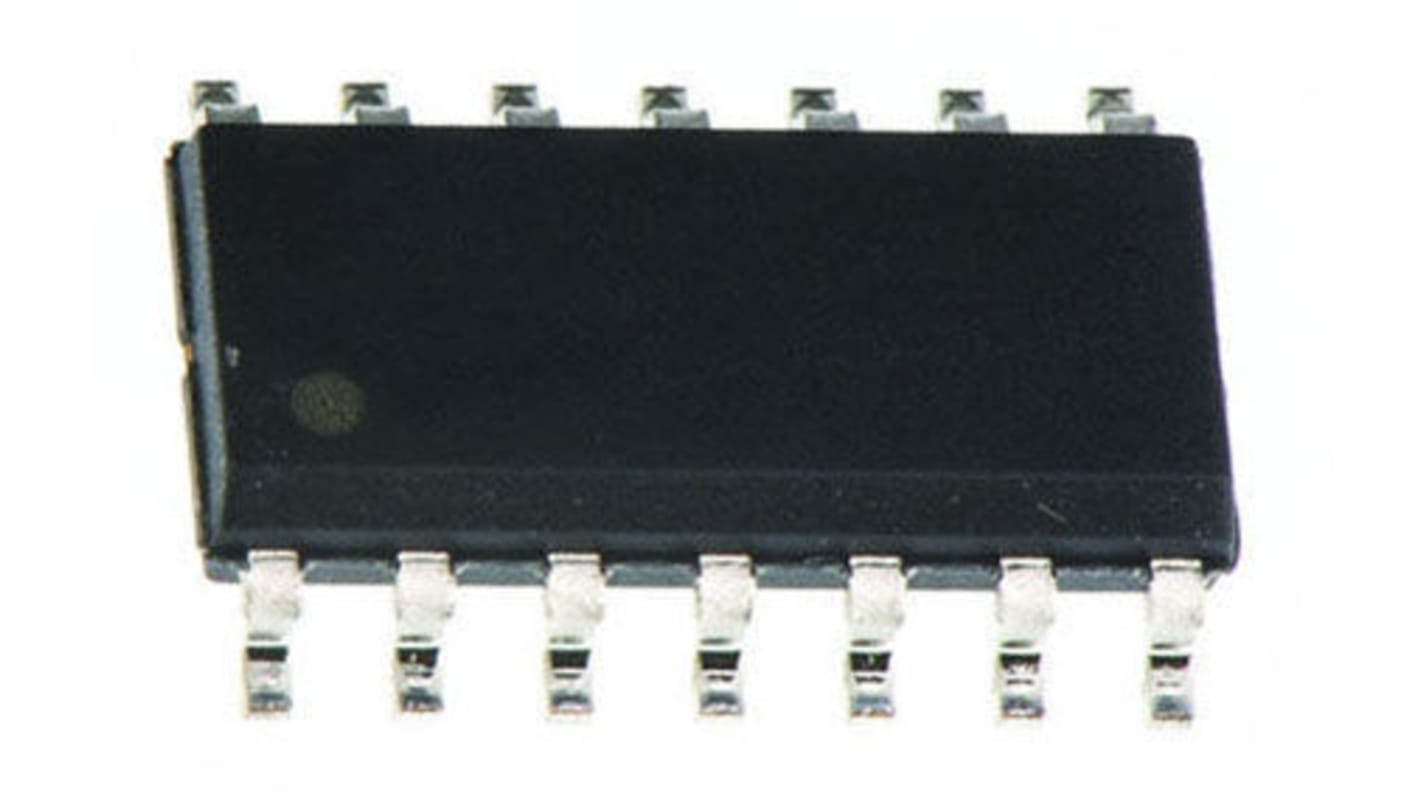

Nexperia 74HC14D-Q100,118 Dual Schmitt Trigger Inverter, 14-Pin SO
- RS Stock No.:
- 136-4869P
- Mfr. Part No.:
- 74HC14D-Q100,118
- Brand:
- Nexperia
Bulk discount available
Subtotal 1300 units (supplied on a reel)*
£219.70
(exc. VAT)
£263.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 200 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1300 + | £0.169 |
*price indicative
- RS Stock No.:
- 136-4869P
- Mfr. Part No.:
- 74HC14D-Q100,118
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Logic Function | Inverter Schmitt Trigger | |
| Input Type | Schmitt Trigger | |
| Output Type | Single Ended | |
| Number of Elements per Chip | 2 | |
| Schmitt Trigger Input | Yes | |
| Maximum Propagation Delay Time @ Maximum CL | 190 ns @ 15 pF | |
| Maximum High Level Output Current | -5.2mA | |
| Maximum Low Level Output Current | 5.2mA | |
| Mounting Type | Surface Mount | |
| Package Type | SO | |
| Pin Count | 14 | |
| Logic Family | 74HC | |
| Dimensions | 8.75 x 4 x 1.45mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Height | 1.45mm | |
| Minimum Operating Supply Voltage | 4.5 V | |
| Minimum Operating Temperature | -40 °C | |
| Propagation Delay Test Condition | 15pF | |
| Automotive Standard | AEC-Q100 | |
| Length | 8.75mm | |
| Maximum Operating Temperature | +125 °C | |
| Width | 4mm | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Logic Function Inverter Schmitt Trigger | ||
Input Type Schmitt Trigger | ||
Output Type Single Ended | ||
Number of Elements per Chip 2 | ||
Schmitt Trigger Input Yes | ||
Maximum Propagation Delay Time @ Maximum CL 190 ns @ 15 pF | ||
Maximum High Level Output Current -5.2mA | ||
Maximum Low Level Output Current 5.2mA | ||
Mounting Type Surface Mount | ||
Package Type SO | ||
Pin Count 14 | ||
Logic Family 74HC | ||
Dimensions 8.75 x 4 x 1.45mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Height 1.45mm | ||
Minimum Operating Supply Voltage 4.5 V | ||
Minimum Operating Temperature -40 °C | ||
Propagation Delay Test Condition 15pF | ||
Automotive Standard AEC-Q100 | ||
Length 8.75mm | ||
Maximum Operating Temperature +125 °C | ||
Width 4mm | ||
74HC Family Inverters & Buffers, Nexperia
A range of NXP Inverters and Buffers from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
