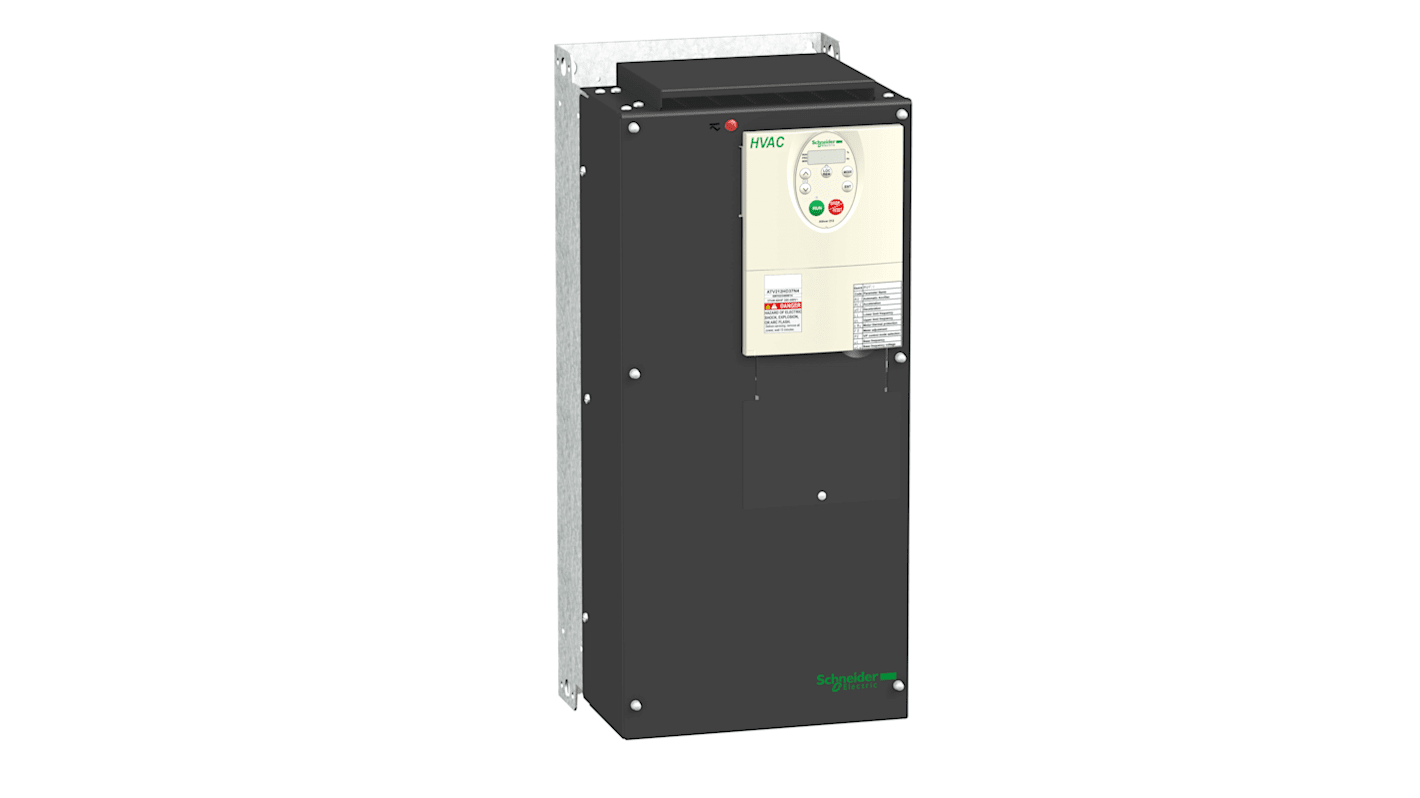

Schneider Electric Variable Speed Drive, 45 kW, 3 Phase, Altivar Series 480V 83.8 A
- RS Stock No.:
- 220-8659
- Distrelec Article No.:
- 303-04-614
- Mfr. Part No.:
- ATV212HD45N4
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£5,307.48
(exc. VAT)
£6,368.98
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £5,307.48 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 220-8659
- Distrelec Article No.:
- 303-04-614
- Mfr. Part No.:
- ATV212HD45N4
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Power Rating | 45kW | |
| Product Type | Variable Speed Drive | |
| Number of Phases | 3 | |
| Maximum Output Current | 83.8A | |
| Series | Altivar | |
| Mount Type | Panel | |
| Overall Length | 297mm | |
| IP Rating | IP21 | |
| Output Frequency | 200Hz | |
| Minimum Supply Voltage | 200V | |
| Maximum Supply Voltage | 480V | |
| Minimum Operating Temperature | -10°C | |
| Compatible Motor Type | AC Motor, Asynchronous Motor | |
| Drive Type | Variable Speed | |
| Maximum Operating Temperature | 50°C | |
| Overall Width | 215mm | |
| Standards/Approvals | UL, C-Tick and NOM, CSA | |
| Better World Product | Yes | |
| Overall Depth | 192mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Power Rating 45kW | ||
Product Type Variable Speed Drive | ||
Number of Phases 3 | ||
Maximum Output Current 83.8A | ||
Series Altivar | ||
Mount Type Panel | ||
Overall Length 297mm | ||
IP Rating IP21 | ||
Output Frequency 200Hz | ||
Minimum Supply Voltage 200V | ||
Maximum Supply Voltage 480V | ||
Minimum Operating Temperature -10°C | ||
Compatible Motor Type AC Motor, Asynchronous Motor | ||
Drive Type Variable Speed | ||
Maximum Operating Temperature 50°C | ||
Overall Width 215mm | ||
Standards/Approvals UL, C-Tick and NOM, CSA | ||
Better World Product Yes | ||
Overall Depth 192mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The Schneider Electric Altivar 212 provides maximum ease of use and security for system integrators and end-users. Set-up, operation and maintenance are simplified with its user-friendliness and enhanced communication. It easily integrates in your automation architectures with Modbus, BacNet, APOGEE FLN P1 and MetaSys N2 as standard and Lon works available as option.
Motor power kW 45 kW
Network number of phases 3 phases
Prospective line Isc 22 kA
Analogue input number 2
IP degree of protection IP21
