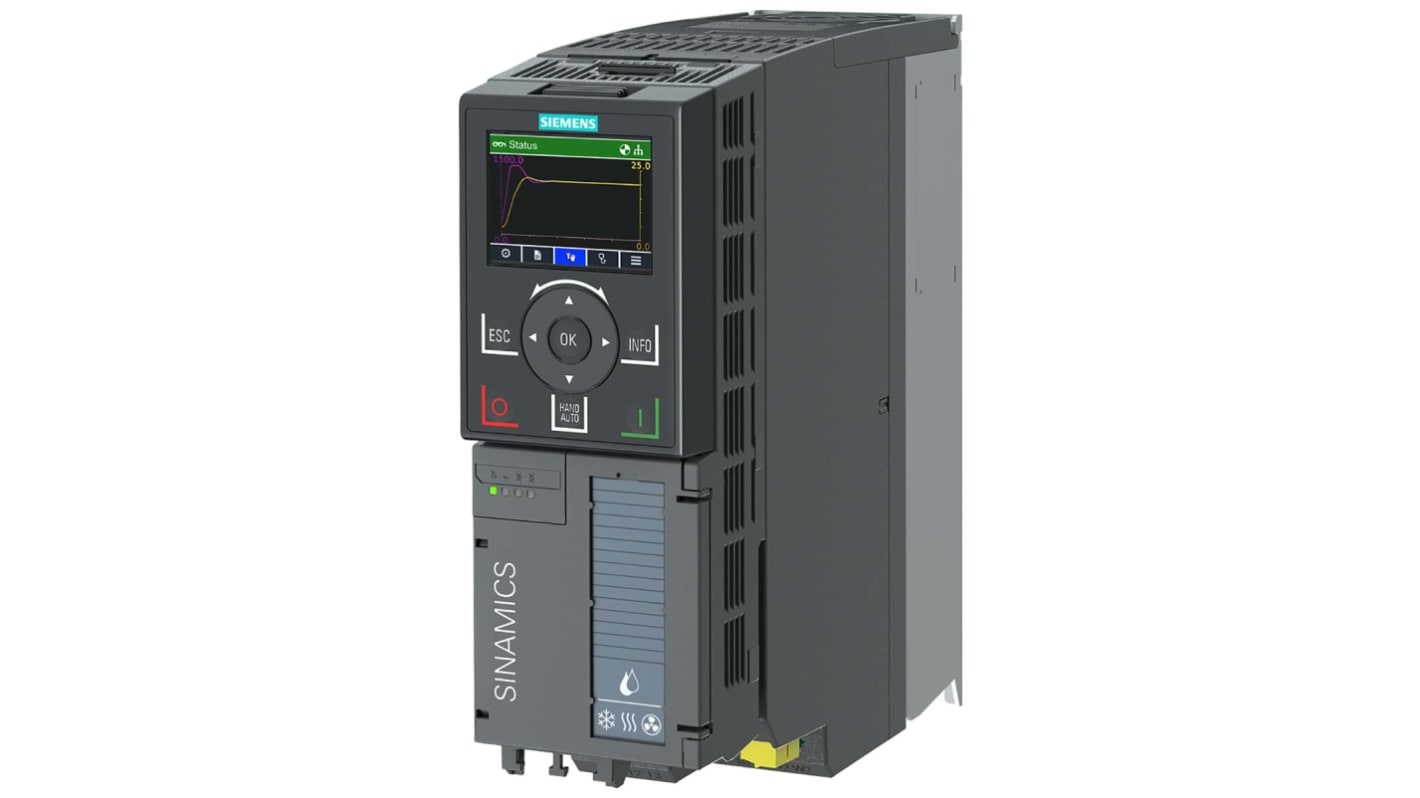

Siemens Inverter Drive, 3 kW, 3 Phase, SINAMICS G120X Series 480 V ac 12 A
- RS Stock No.:
- 203-3367
- Mfr. Part No.:
- 6SL3220-2YE18-0AF0
- Brand:
- Siemens
Subtotal (1 unit)*
£827.49
(exc. VAT)
£992.99
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £827.49 |
*price indicative
- RS Stock No.:
- 203-3367
- Mfr. Part No.:
- 6SL3220-2YE18-0AF0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Power Rating | 3kW | |
| Product Type | Inverter Drive | |
| Number of Phases | 3 | |
| Maximum Output Current | 12A | |
| Series | SINAMICS G120X | |
| Mount Type | Panel | |
| IP Rating | IP20 | |
| Overall Length | 106.85mm | |
| Minimum Supply Voltage | 380V | |
| Output Frequency | 200Hz | |
| Maximum Supply Voltage | 480V ac | |
| Minimum Operating Temperature | -20°C | |
| Drive Type | Vector Control | |
| Compatible Motor Type | AC Motor | |
| Maximum Operating Temperature | 45°C | |
| Standards/Approvals | UL, SEMI F47, REACH, KCC, EAC, cUL, C-Tick (RCM), CE | |
| Overall Width | 70mm | |
| Overall Depth | 19.6mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Power Rating 3kW | ||
Product Type Inverter Drive | ||
Number of Phases 3 | ||
Maximum Output Current 12A | ||
Series SINAMICS G120X | ||
Mount Type Panel | ||
IP Rating IP20 | ||
Overall Length 106.85mm | ||
Minimum Supply Voltage 380V | ||
Output Frequency 200Hz | ||
Maximum Supply Voltage 480V ac | ||
Minimum Operating Temperature -20°C | ||
Drive Type Vector Control | ||
Compatible Motor Type AC Motor | ||
Maximum Operating Temperature 45°C | ||
Standards/Approvals UL, SEMI F47, REACH, KCC, EAC, cUL, C-Tick (RCM), CE | ||
Overall Width 70mm | ||
Overall Depth 19.6mm | ||
The Siemens SINAMICS G120X 3kW frequency converter runs stably under all network conditions and is particularly robust due to its operating temperature from -20°C to +45°C. It has rated current of 6.9A and is of FSA size.
Sensorless vector control
Encoderless torque control
