Siemens Inverter Drive, 37 kW, 3 Phase, SINAMICS G120X Series 480 V 12 A

View all Inverter Drives

Subtotal (1 unit)*

£3,153.81

(exc. VAT)

£3,784.57

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£3,153.81

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
184-0134
Mfr. Part No.:
6SL3220-3YE36-0UF0
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Product Type

Inverter Drive

Power Rating

37kW

Number of Phases

3

Maximum Output Current

12A

Series

SINAMICS G120X

Mount Type

Wall

IP Rating

IP20

Overall Length

200mm

Output Frequency

200Hz

Minimum Supply Voltage

380V

Maximum Supply Voltage

480V

Minimum Operating Temperature

-20°C

Compatible Motor Type

AC Motor

Drive Type

PID Control

Maximum Operating Temperature

45°C

Overall Width

239mm

Standards/Approvals

CE Certified, cUL Recognized, EAC Certified, KCC, RCM, REACH, SEMI F47, UL Listed

Better World Claim

Saves Energy

Better World Product

Yes

Overall Depth

472 mm

COO (Country of Origin):
GB

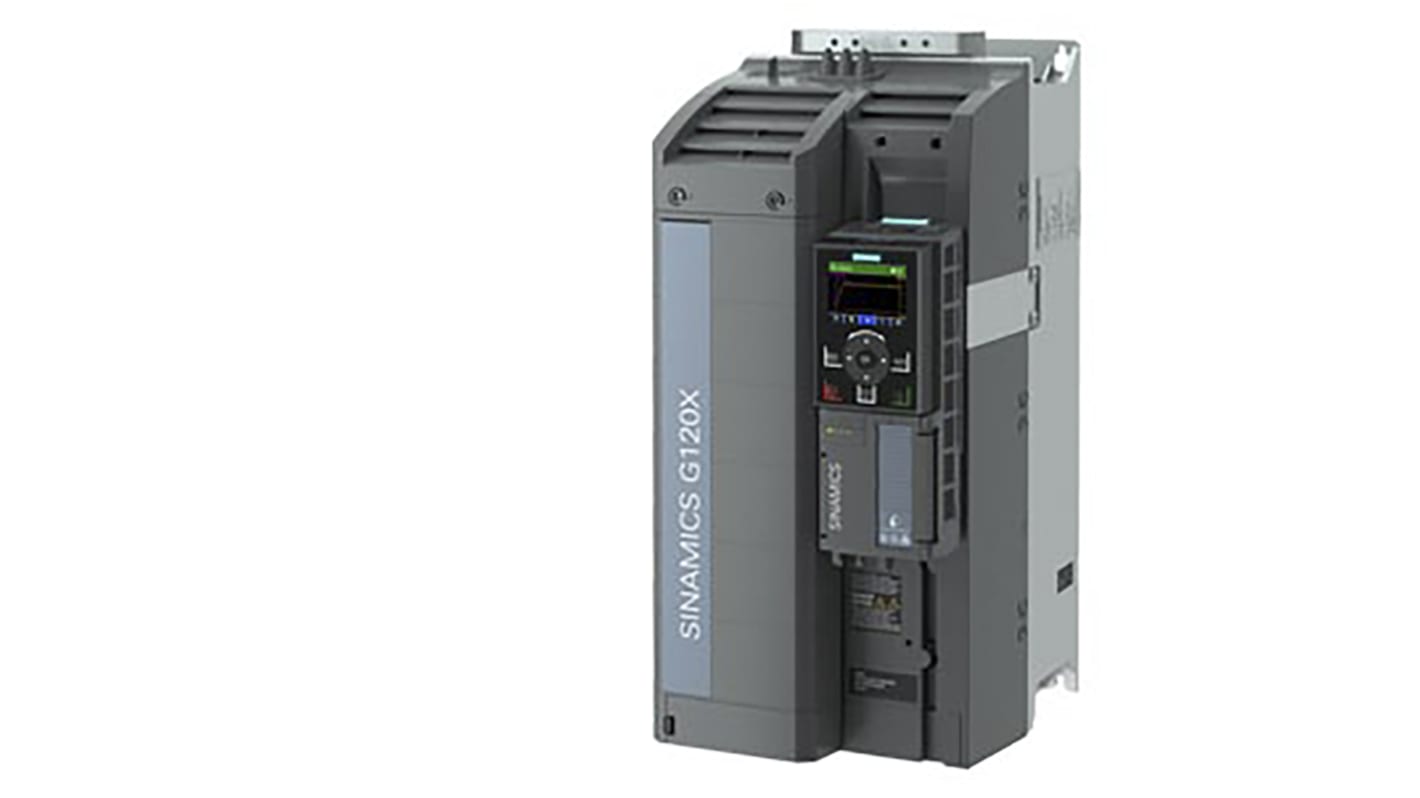

Siemens Inverter Drive, Integrated DC Link Reactor, Wall Mounting - SINAMICS Series - 6SL3220-3YE36-0UF0


Let this inverter drive from Siemens take the strain of heavy-duty motor control in your industrial workplace. Because of its high-power application, it comes with an integrated DC link reactor that limits the rate of current rise. This stops transients in their tracks to stamp out the risk of fire and improve safety. The unit's 92% efficient, which means there's minimal energy lost to heat and it runs cool. A durable thermoplastic case stands its ground in harsh environments. With a high current rating of 72A and power rating of 37kW, this is a dependable workmate for large-scale motor control in industries like water treatment plants and machine building facilities.

Features & Benefits


• Broad operating temperature range of -20°C to +55°C for use in challenging settings

• STO function to keep the motor safely stopped during shutdown

• Sensorless vector control reduces the wiring needs of your setup

• Integrated real-time clock to control releases and setpoints during operation

How do I maintain this inverter drive?


You can keep this unit in proper working order by regular dust removal with a dry air stream. You must also check to ensure that all its screw connections are tight to prevent arcing and fire outbreaks.
