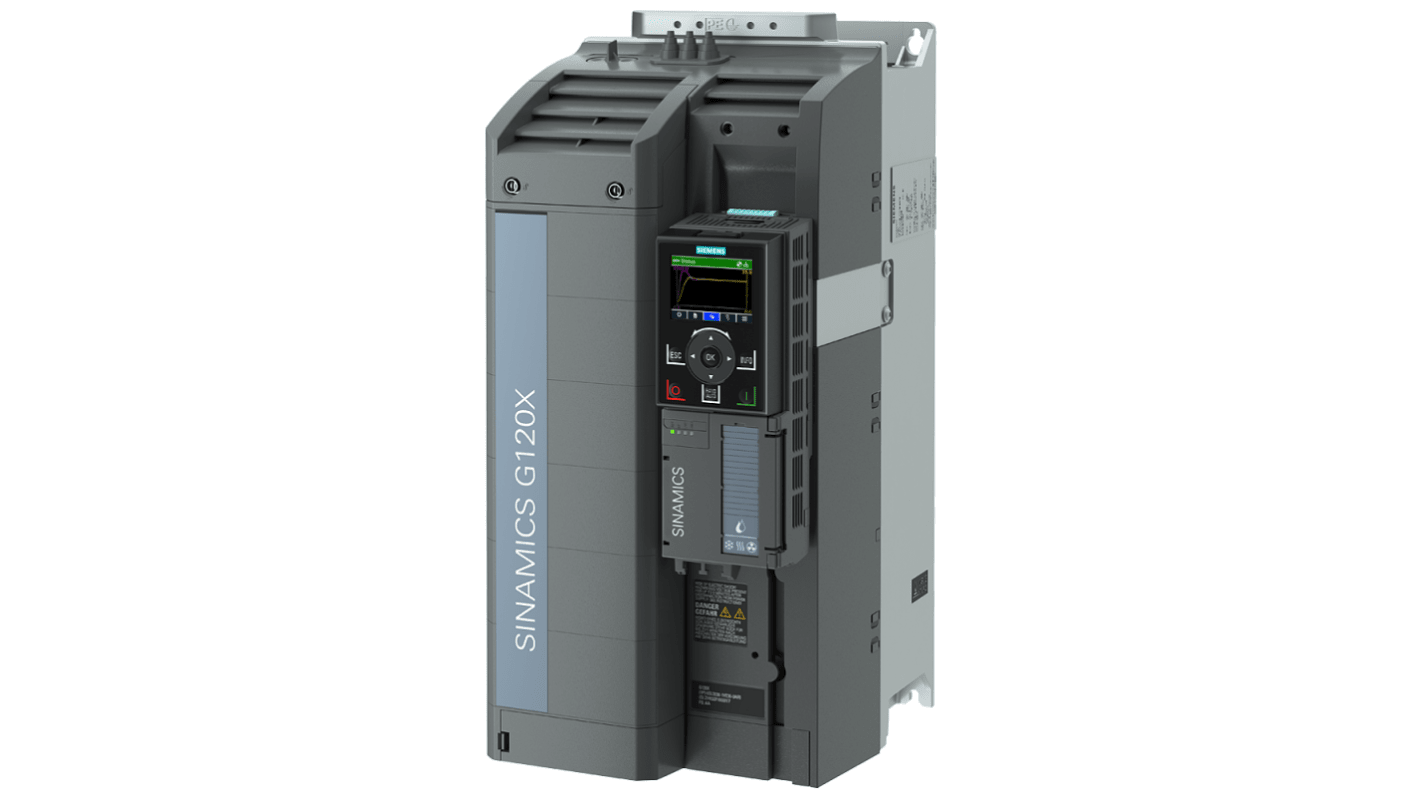

Siemens Inverter Drive, 37 kW, 3 Phase, 380 → 480 V ac, 70 A, SINAMICS G120X Series

View all Inverter Drives

Subtotal (1 unit)*

£3,131.92

(exc. VAT)

£3,758.30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£3,131.92

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
184-0133
Mfr. Part No.:
6SL3220-2YE36-0UF0
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Power Rating

37 kW

Phase

3

Supply Voltage

380 → 480 V ac

Current Rating

70 A

Series

SINAMICS G120X

For Use With

SINAMICS G120X

Field Bus Communication Type

Profinet

IP Rating

IP20

Output Frequency

0 → 550Hz

STO

Yes

Drive Type

PID Control

Mounting Type

Wall Mount

Better World Claim

Saves energy

Better World Product

Yes

Control Panel

Yes

Special Features

Closed Loop Control

Interface

Ethernet

Overall Width

200mm

Standards Met

CE Certified, cUL Recognized, EAC Certified, KCC, RCM, REACH, SEMI F47, UL Listed

Overall Depth

248mm

Function

Motor Control

Overall Length

472mm

COO (Country of Origin):
GB

Siemens SINAMICS G120X Series Inverter Drive, 37kW Power Rating, 70A Current - 6SL3220-2YE36-0UF0


This inverter drive is designed for efficient motor control. With a power rating of 37 kW and operating at a supply voltage of 380 to 480V AC, it provides reliable functionality in various industrial applications. The compact design features dimensions of 200mm in width, 472mm in length, and 248mm in depth, optimising space utilisation for wall-mounted installations.

Features & Benefits


• Integrated PID control for precise motor performance
• Supports Profinet fieldbus communication for seamless integration
• Capable of handling output frequencies from 0 to 550 Hz
• Closed loop control enhances operational efficiency
• CE certified, ensuring compliance with safety standards
• Allows wall mounting, saving valuable floor space

Applications


• Used with SINAMICS G120X for various motor control needs
• Ideal for industrial automation systems requiring robust control
• Employs Profinet communication in complex networks
• Suitable for in environments up to 45 °C

What current ratings can this inverter drive handle?


It has a current rating of 70A, which allows it to efficiently manage various loads in industrial applications, ensuring reliable performance.

How does the inverter drive maintain operational efficiency?


The closed-loop control system, coupled with PID control, allows for continuous feedback and adjustments, ensuring optimal motor performance and reduced energy consumption.

What are the cooling requirements for this device?


Air cooling is provided through an integrated fan, and the device requires 0.055 m³/s of cooling air to maintain performance, even at high loads.

What is the maximum output current supported?


The inverter drive can support a maximum output current of up to 102A, accommodating high-demand applications with ease.

What environments is this inverter suitable for?


It operates effectively in environments with temperatures ranging from -20 °C to 45 °C, making it versatile for diverse industrial conditions.
