Siemens AC Motor Drive, 3 kW, 3 Phase, SINAMICS G120P Series 480V 7.7 A
- RS Stock No.:
- 632-799
- Mfr. Part No.:
- G120P-3/35A / 6SL3200-6AM17-7AH0
- Brand:
- Siemens
Subtotal (1 unit)*
£1,100.05
(exc. VAT)
£1,320.06
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £1,100.05 |
*price indicative
- RS Stock No.:
- 632-799
- Mfr. Part No.:
- G120P-3/35A / 6SL3200-6AM17-7AH0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | AC Motor Drive | |
| Power Rating | 3kW | |
| Number of Phases | 3 | |
| Maximum Output Current | 7.7A | |
| Series | SINAMICS G120P | |
| Mount Type | Wall | |
| IP Rating | IP55 | |
| Overall Length | 460mm | |
| Output Frequency | 550Hz | |
| Minimum Supply Voltage | 380V | |
| Maximum Supply Voltage | 480V | |
| Drive Type | Variable Speed | |
| Compatible Motor Type | Pump, Fan Motors | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Overall Width | 154mm | |
| Standards/Approvals | EAC, EN 61800-5-1, RoHS (Directive 2009/125/EC), UKCA, UL/CSA, CE, C-Tick/RCM | |
| Overall Depth | 266mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type AC Motor Drive | ||
Power Rating 3kW | ||
Number of Phases 3 | ||
Maximum Output Current 7.7A | ||
Series SINAMICS G120P | ||
Mount Type Wall | ||
IP Rating IP55 | ||
Overall Length 460mm | ||
Output Frequency 550Hz | ||
Minimum Supply Voltage 380V | ||
Maximum Supply Voltage 480V | ||
Drive Type Variable Speed | ||
Compatible Motor Type Pump, Fan Motors | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Overall Width 154mm | ||
Standards/Approvals EAC, EN 61800-5-1, RoHS (Directive 2009/125/EC), UKCA, UL/CSA, CE, C-Tick/RCM | ||
Overall Depth 266mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB

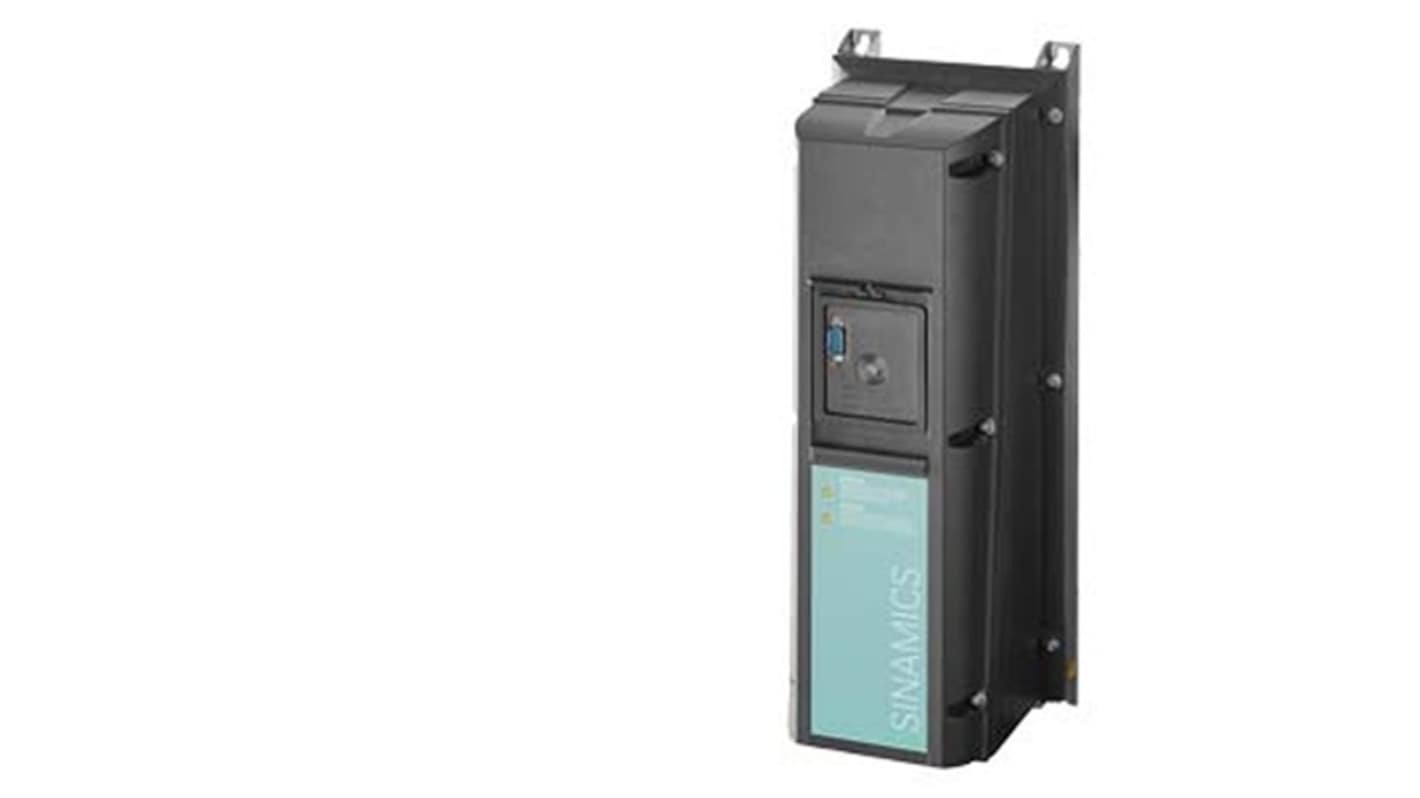

The Siemens Variable speed drive designed for efficient motor control in HVAC and industrial applications. It features an integrated Filter A for electromagnetic compatibility. Designed to support motors up to 3.0 kW, it ensures dependable performance and flexible integration. Its lightweight design simplifies handling and setup in compact environments.
IP55 protection
It is compatible with Desigo systems
Optimized drive topology
RoHS compliant
CE and UKCA compliant
