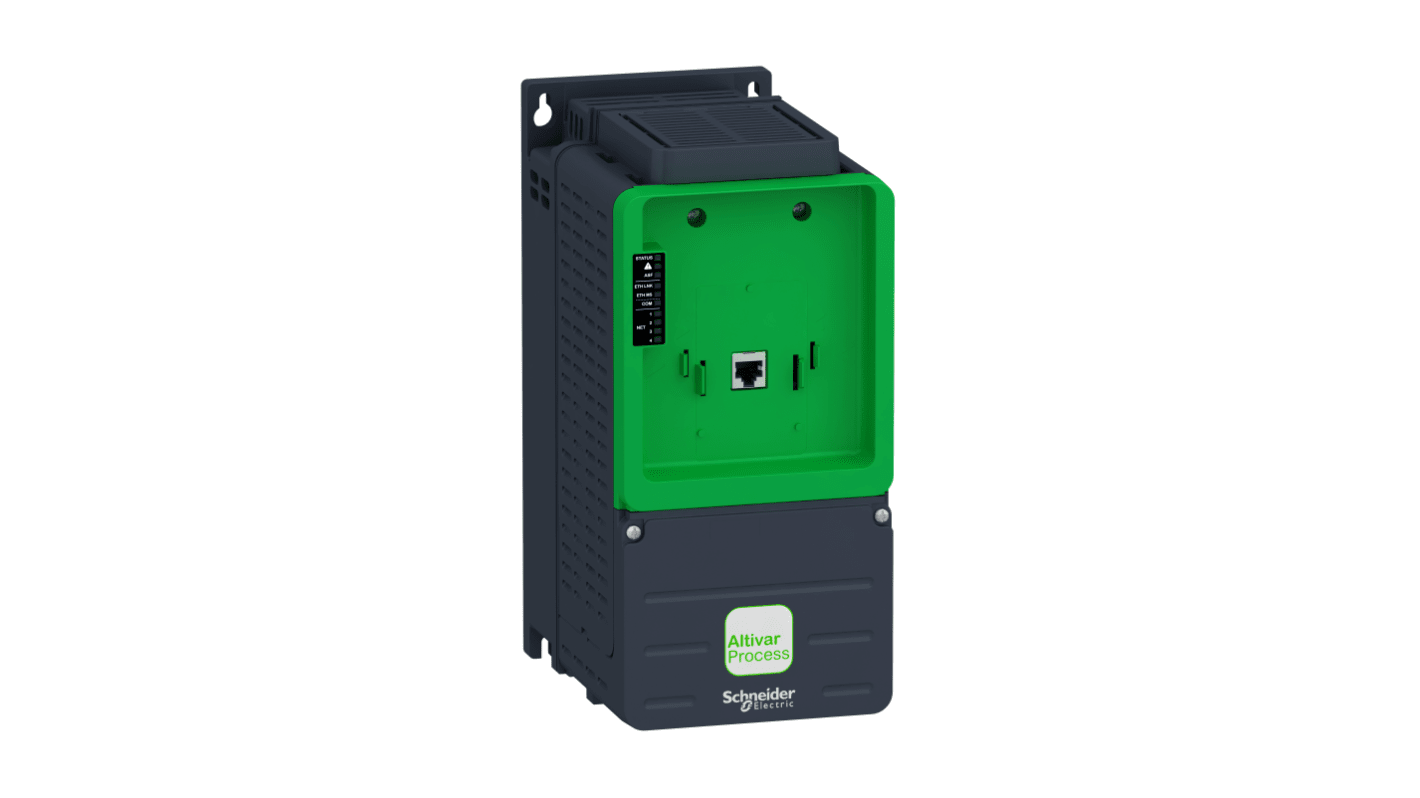

Schneider Electric Variable Speed Drive, 750 W, 3 Phase, ATV630 Series 480V 2.2 A
- RS Stock No.:
- 130-865
- Mfr. Part No.:
- ATV630U07N4Z
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£550.24
(exc. VAT)
£660.29
(inc. VAT)
FREE delivery for orders over £60.00
- 1 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £550.24 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 130-865
- Mfr. Part No.:
- ATV630U07N4Z
- Brand:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Power Rating | 750W | |
| Product Type | Variable Speed Drive | |
| Number of Phases | 3 | |
| Maximum Output Current | 2.2A | |
| Series | ATV630 | |
| Mount Type | Cabinet | |
| Overall Length | 285mm | |
| IP Rating | IP20 | |
| Output Frequency | 500Hz | |
| Minimum Supply Voltage | 380V | |
| Maximum Supply Voltage | 480V | |
| Compatible Motor Type | Synchronous, Asynchronous Motor | |
| Drive Type | Variable Speed | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL 508C, IEC 61800-5-1, IEC 61800-3 environment 1 category C2, IEC 61800-3, IEC 61508, IEC 61000-3-12, IEC 60721-3, IEC 13849-1, EN/IEC 61800-3 Environment 2 Category C3, DNV-GL, CSA, CE, ATEX zone 2/22, ATEX INERIS, TUV | |
| Overall Width | 130mm | |
| Better World Product | Yes | |
| Better World Claim | Saves Energy | |
| Overall Depth | 196mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Power Rating 750W | ||
Product Type Variable Speed Drive | ||
Number of Phases 3 | ||
Maximum Output Current 2.2A | ||
Series ATV630 | ||
Mount Type Cabinet | ||
Overall Length 285mm | ||
IP Rating IP20 | ||
Output Frequency 500Hz | ||
Minimum Supply Voltage 380V | ||
Maximum Supply Voltage 480V | ||
Compatible Motor Type Synchronous, Asynchronous Motor | ||
Drive Type Variable Speed | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL 508C, IEC 61800-5-1, IEC 61800-3 environment 1 category C2, IEC 61800-3, IEC 61508, IEC 61000-3-12, IEC 60721-3, IEC 13849-1, EN/IEC 61800-3 Environment 2 Category C3, DNV-GL, CSA, CE, ATEX zone 2/22, ATEX INERIS, TUV | ||
Overall Width 130mm | ||
Better World Product Yes | ||
Better World Claim Saves Energy | ||
Overall Depth 196mm | ||
- COO (Country of Origin):
- CN
